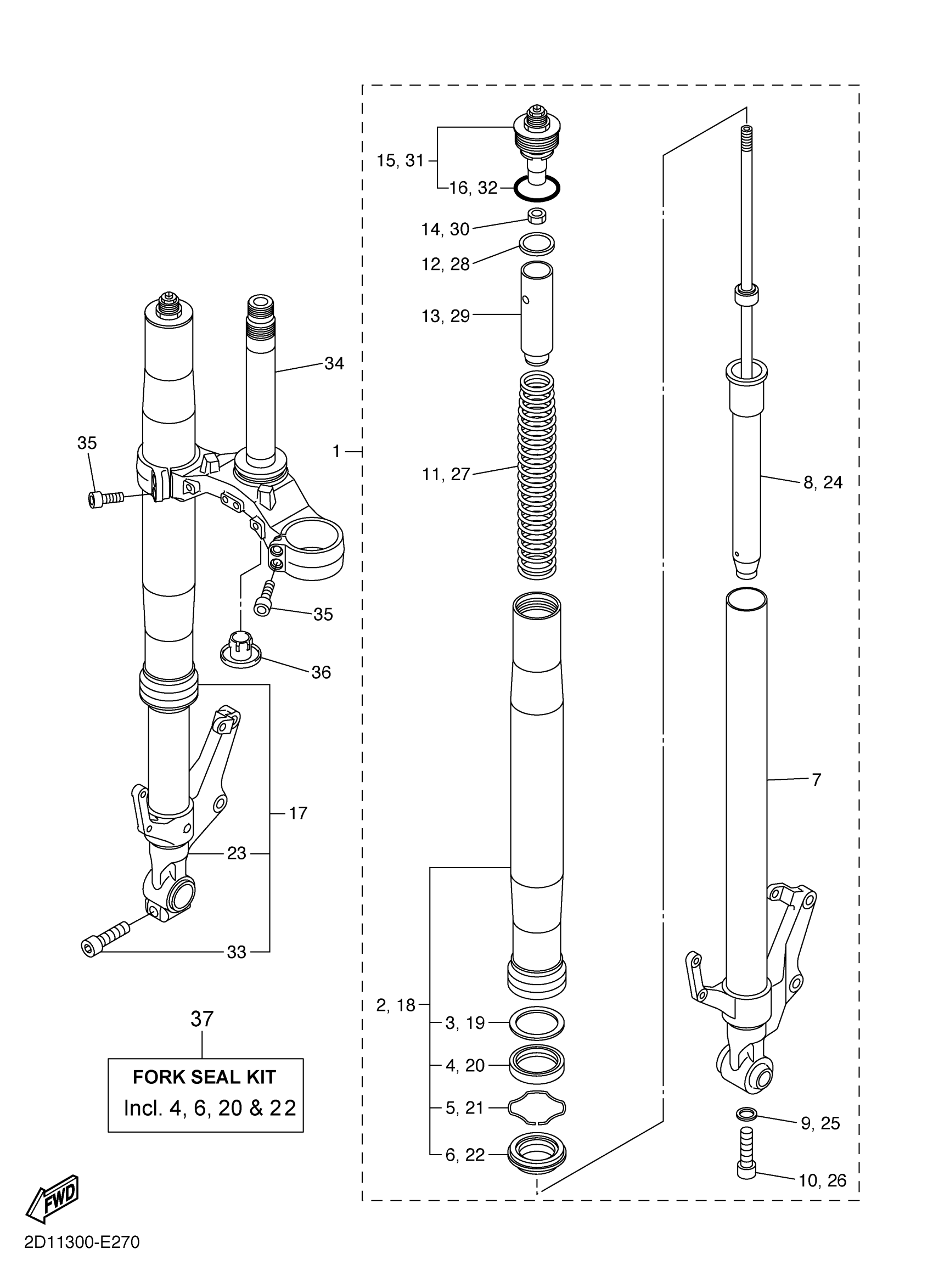

Yamaha FZS10VC (FZ-1 CA) 3C35 2006 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

2D1-23102-10-00

$627.99

2

TUBE, OUTER (RIGHT)

2D1-23136-10-00

Unavailable

3

WASHER, OIL SEAL

5PW-23146-00-00

$18.49

4

OIL SEAL

4PU-23145-01-00

$25.99

5

RING, SNAP

4V4-23153-L0-00

$9.99

6

SEAL, DUST

4PU-23144-00-00

$24.99

7

INNER TUBE COMP.1

2D1-23110-00-00

Unavailable

8

. CYLINDER COMP (L) , FRONT FOR

2D1-23170-10-00

Unavailable

9

GASKET

509-23158-L0-00

$16.49

10

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

Unavailable

11

. SPRING, FRONT FORK

2D1-23141-00-00

Unavailable

12

WASHER

5VY-12277-00-00

$12.99

13

SPACER

5VY-23118-00-00

Unavailable

14

NUT

3LC-23357-00-00

$6.99

15

BOLT, CAP

2D1-23111-10-00

Unavailable

16

O-RING

3XJ-23147-L0-00

Unavailable

17

FRONT FORK ASSY (R.H)

2D1-23103-10-00

Unavailable

18

TUBE, OUTER (RIGHT)

2D1-23136-10-00

Unavailable

19

WASHER, OIL SEAL

5PW-23146-00-00

$18.49

20

OIL SEAL

4PU-23145-01-00

$25.99

21

RING, SNAP

4V4-23153-L0-00

$9.99

22

SEAL, DUST

4PU-23144-00-00

$24.99

23

INNER TUBE COMP.2

2D1-23120-00-00

Unavailable

24

. CYLINDER COMP (R) , FRONT FOR

2D1-23170-00-00

Unavailable

25

GASKET

509-23158-L0-00

$16.49

26

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

Unavailable

27

. SPRING, FRONT FORK

2D1-23141-00-00

Unavailable

28

WASHER

5VY-12277-00-00

$12.99

29

SPACER

5VY-23118-00-00

Unavailable

30

NUT

3LC-23357-00-00

$6.99

31

BOLT, CAP

2D1-23111-10-00

Unavailable

32

O-RING

3XJ-23147-L0-00

Unavailable

33

BOLT,SOCKET

91314-08040-00

Unavailable

34

UNDER BRACKET COMP.

2D1-23340-10-00

Unavailable

35

BOLT,SOCKET

91314-08030-00

Unavailable

36

COVER, LOWER 1

4KM-23123-01-00

Unavailable

37

FORK SEAL KIT (TWO FORKS)

4PU-W003B-00-00

Unavailable
