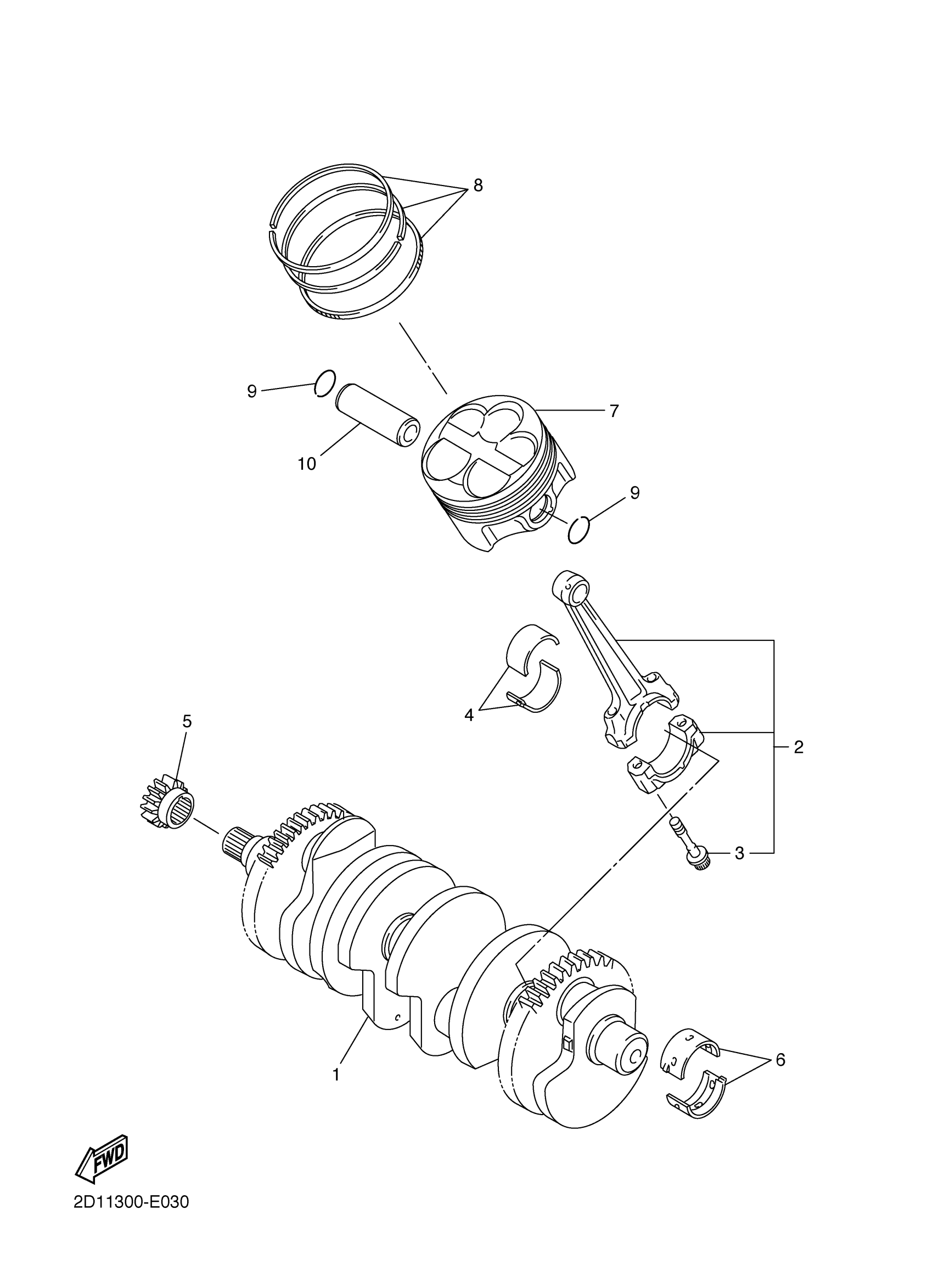

Yamaha FZS10VC (FZ-1 CA) 3C35 2006 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

2D1-11411-00-00

Unavailable

2

CONNECTING ROD ASSY

14B-11650-00-00

$241.99

3

BOLT, CONNECTING ROD

5VY-11654-01-00

$16.49

4

PLANE BEARING, CONNECTING ROD

2D1-11656-00-00

$12.99

4

PLANE BEARING, CONNECTING ROD

2D1-11656-10-00

$20.99

4

PLANE BEARING, CONNECTING ROD

2D1-11656-20-00

$20.99

4

PLANE BEARING, CONNECTING ROD

2D1-11656-30-00

$20.99

5

SPROCKET, CAM CHAIN

5VY-11549-00-00

$82.99

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-00-00

$20.99

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-10-00

$20.99

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-20-00

$20.99

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-30-00

$20.99

6

PLANE BEARING, CRANKSHAFT 1

5VY-11416-A0-00

$20.99

7

PISTON (STD)

5VY-11631-10-00

$157.99

8

PISTON RING SET (STD)

5VY-11603-01-00

$70.99

9

CLIP (1J7)

90468-12069-00

Unavailable

10

PIN, PISTON

5VY-11633-00-00

Unavailable
