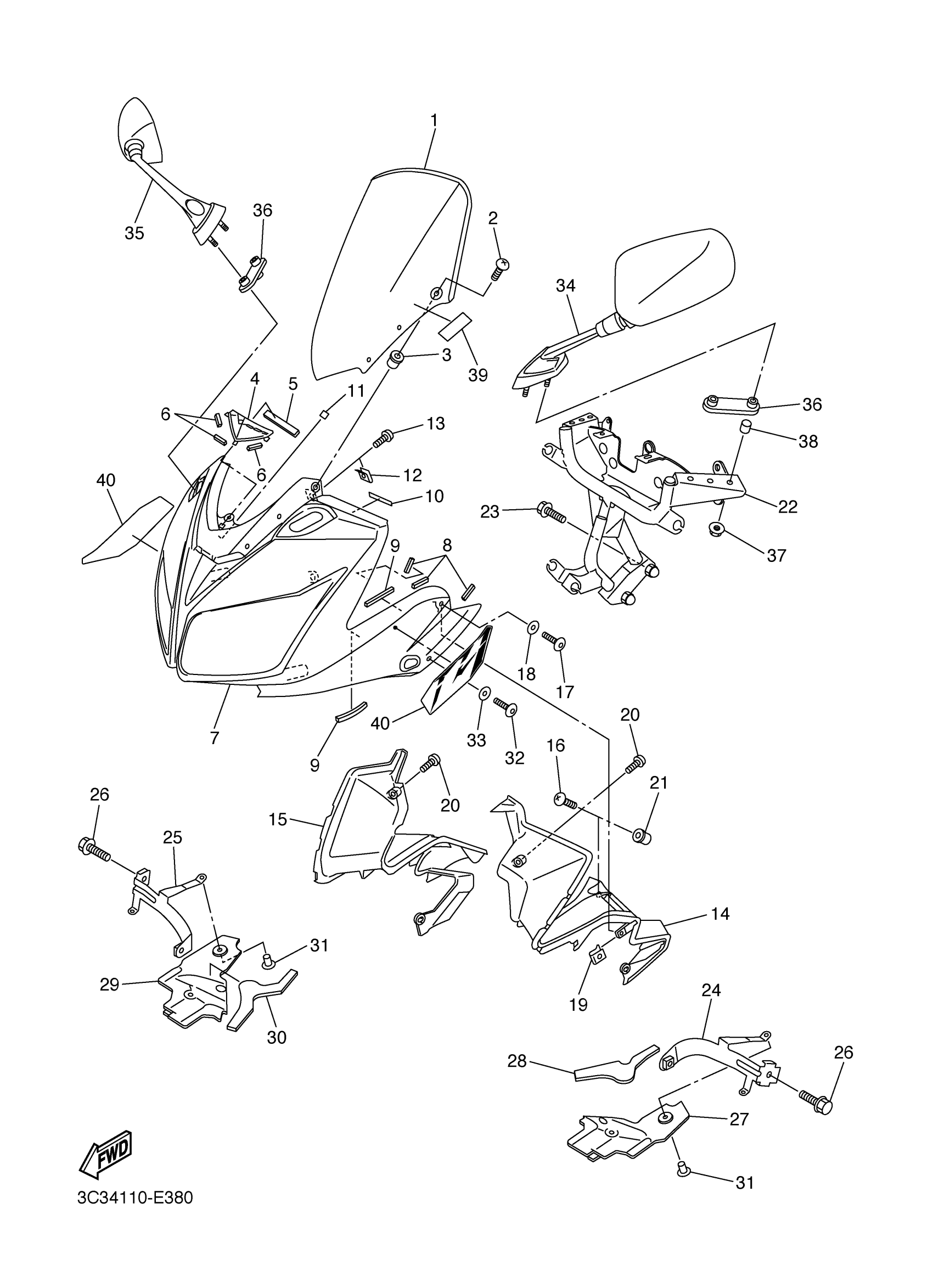

Yamaha FZS10VC (FZ-1 CA) 3C35 2006 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

3C3-28381-10-00

Unavailable

2

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

3

NUT(1KT)

90179-05523-00

$8.49

4

COVER

3C3-28365-00-00

Unavailable

5

DAMPER

3C3-28371-01-00

$2.34

6

DAMPER

3C3-28372-00-00

$6.99

7

BODY, FRONT UPPER 1

3C3-2835G-00-P1

Unavailable

7

BODY, FRONT UPPER 1

3C3-2835G-00-P2

Unavailable

8

DAMPER 5

3C3-2837J-00-00

$2.34

9

DAMPER

4XV-2834E-00-00

$4.47

10

SEAL

3P6-28307-00-00

$2.34

11

SEAL

5JW-23844-00-00

$8.99

12

NUT, SPRING

90183-050A6-00

$8.49

13

SCREW, BINDING

90154-05007-00

$3.28

14

PANEL, INNER 1

3C3-2836K-00-00

$172.99

15

PANEL, INNER 2

3C3-2836L-00-00

Unavailable

16

SCREW, BINDING

90154-05007-00

$3.28

17

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

18

WASHER, PLATE

90202-06170-00

Unavailable

19

NUT, SPRING(4ES)

90183-06069-00

Unavailable

20

SCREW, BINDING

90154-05007-00

$3.28

21

NUT(1KT)

90179-05523-00

$8.49

22

STAY 1

3C3-28356-00-00

Unavailable

23

BOLT, FLANGE

95817-08035-00

Unavailable

24

BRACKET 1

3C3-2836A-00-00

Unavailable

25

BRACKET 2

3C3-2836E-00-00

Unavailable

26

BOLT, FLANGE

95817-06010-00

Unavailable

27

PANEL 1

3C3-2835U-00-00

Unavailable

28

DAMPER 1

3C3-2834E-00-00

Unavailable

29

PANEL 2

3C3-2835V-00-00

Unavailable

30

DAMPER

3C3-2834F-00-00

Unavailable

31

RIVET

90269-06008-00

Unavailable

32

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

33

WASHER, PLATE

90202-06170-00

Unavailable

34

REAR VIEW MIRROR ASSY (LEFT)

3C3-26280-01-00

Unavailable

35

REAR VIEW MIRROR ASSY (RIGHT)

3C3-26290-01-00

Unavailable

36

PLATE, MIRROR FITTING 1

3C3-26298-00-00

Unavailable

37

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

38

COLLAR(J45)

90387-064T3-00

Unavailable

39

LABEL, CAUTION

5JW-2835Y-00-00

Unavailable

40

EMBLEM 1

2D1-2163G-10-00

Unavailable

40

EMBLEM 1 (DEEP RED METALLIC K)

2D1-2163G-30-00

Unavailable
