WATER PUMP

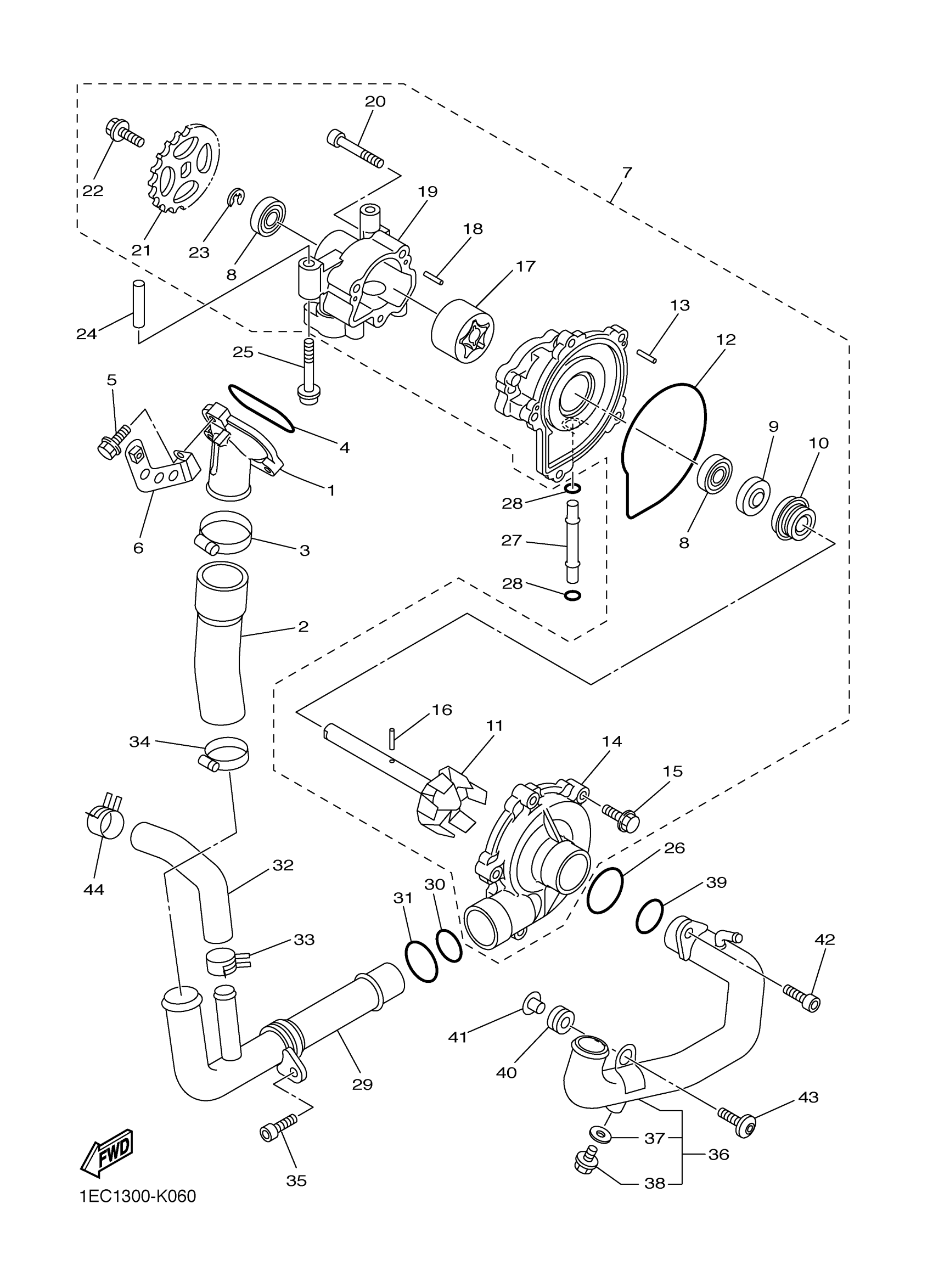

Yamaha FZS10FGY (FZS1) 2DV9 2015 WATER PUMP Diagram
#
1
JOINT 1
5VY-12469-10-00
Unavailable
6
STAY 1
2D1-12637-00-00
Unavailable
10
SEAL, MECHANICAL
5VK-12438-00-00
Unavailable
11
IMPELLER SHAFT ASSY
4C8-12450-10-00
Unavailable
16
PIN,DOWEL
93603-17070-00
Unavailable
17
ROTOR ASSY 1
5VY-13310-10-00
Unavailable
19
HOUSING, ROTOR
5VY-13336-00-00
Unavailable
20
TORNILLO ALLEN
91312-06040-00
Unavailable
21
SPROCKET, DRIVEN
5VY-13355-00-00
Unavailable
22
BOLT, FLANGE
90105-06066-00
Unavailable
23
CIRCLIP(10Y)
99009-12400-00
Unavailable
24
PIN, DOWEL
91808-30031-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD
90110-06166-00
Unavailable
26
O-RING
93210-357A2-00
Unavailable
27
PIPE 5
4XV-12485-00-00
Unavailable
28
O-RING(26H)
93210-06667-00
Unavailable
29
PIPE 1
39P-12481-00-00
Unavailable
30
O-RING
93210-235A1-00
Unavailable
31
O-RING(1KT)
93210-27778-00
Unavailable
32
HOSE 5
5VY-12588-00-00
Unavailable
33
CLIP
90467-200A0-00
Unavailable
34
CLAMP
90460-20190-00
Unavailable
35
BOLT,SOCKET
91317-06016-00
Unavailable
36
PIPE 4
2D1-12484-01-00
Unavailable
37
GASKET 256113960000
90430-06014-00
Unavailable
38
SCREW, HEXAGON
90153-06002-00
Unavailable
39
O-RING
93210-235A1-00
Unavailable
40
GROMMET
90480-12010-00
Unavailable
41
COLLAR
90387-06112-00
Unavailable
42
BOLT,SOCKET
91317-06016-00
Unavailable
43
SCREW(4DN)
90149-06302-00
Unavailable
44
CLIP
90467-200A0-00
Unavailable
