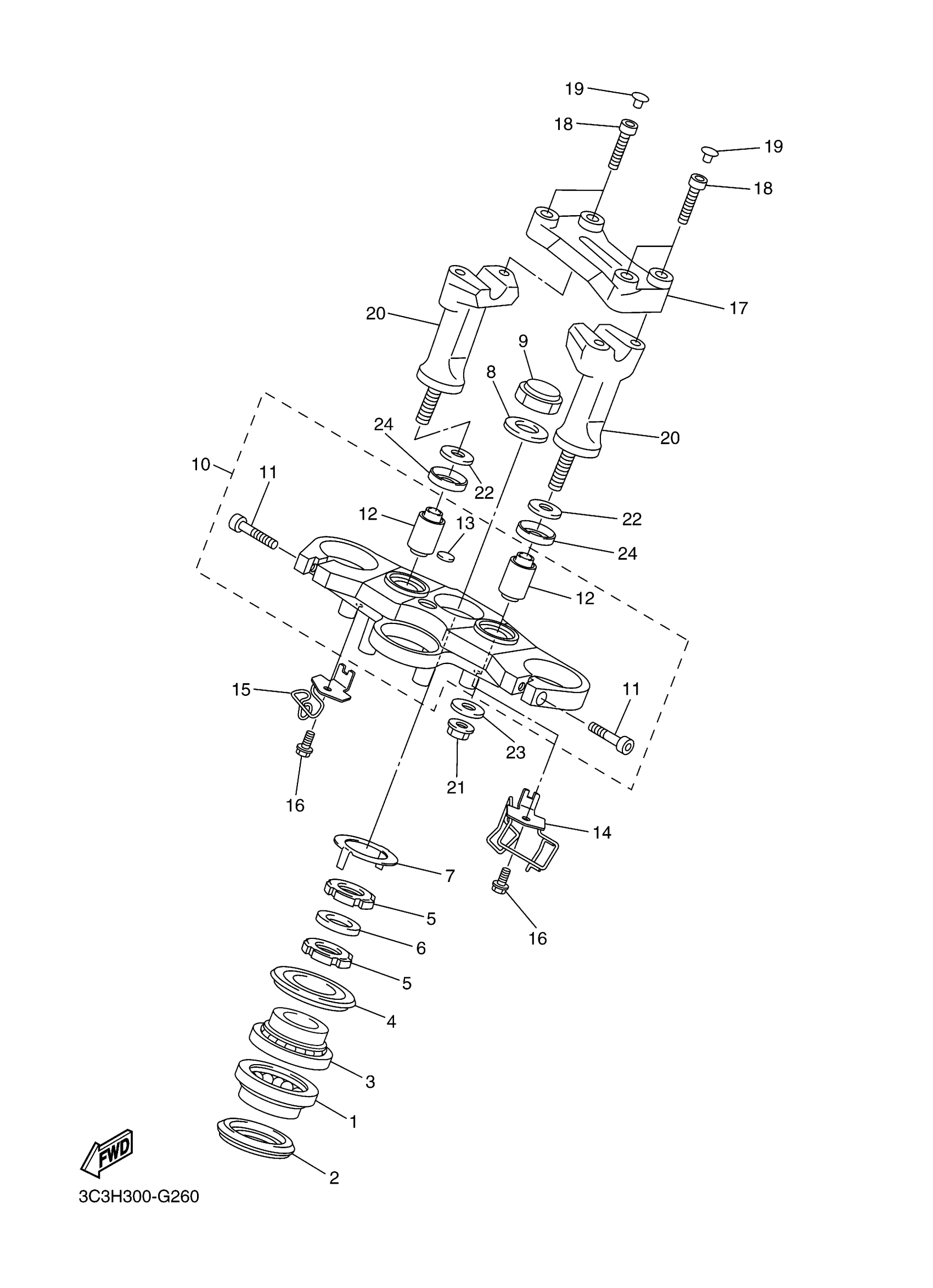

Yamaha FZS10FGY (FZS1) 2DV9 2015 STEERING Diagram

#

Description
Price

1

BEARING

93399-99957-00

$57.05

2

SEAL, STEERING

3FV-23462-00-00

$20.00

3

BEARING(3FV)

93399-99932-00

$51.86

4

COVER, BALL RACE 1

4XV-23415-01-00

$19.18

5

NUT

90179-30006-00

$20.60

6

WASHER, PLATE

90202-30235-00

$5.66

7

WASHER, SPECIAL

4XV-23418-00-00

$14.36

8

WASHER, PLATE

90201-281U8-00

$7.91

9

NUT, CROWN

90176-28083-00

$33.26

10

CROWN, HANDLE ASSY

2D1-23405-11-00

Unavailable

11

91312-08030

91312-08030-00

$5.75

12

HOLDER, DAMPER

5A8-23434-01-00

Unavailable

13

EMBLEM

4XV-2341B-00-00

$21.57

14

HOLDER, CABLE 1

3C3-23318-00-00

Unavailable

15

HOLDER, CABLE 2

3C3-23319-00-00

Unavailable

16

BOLT, FLANGE

95022-06012-00

Unavailable

17

HOLDER, HANDLE UPPER

2D1-23441-00-00

Unavailable

18

91312-08030

91312-08030-00

$5.75

19

PLUG(42X)

90338-08163-00

Unavailable

20

HOLDER, HANDLE LOWER

2D1-23442-00-00

Unavailable

21

NUT, S/L FLANGE

95602-10200-00

Unavailable

22

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

23

WASHER, PLATE

90201-10065-00

Unavailable

24

DAMPER

5YU-23445-00-00

Unavailable
