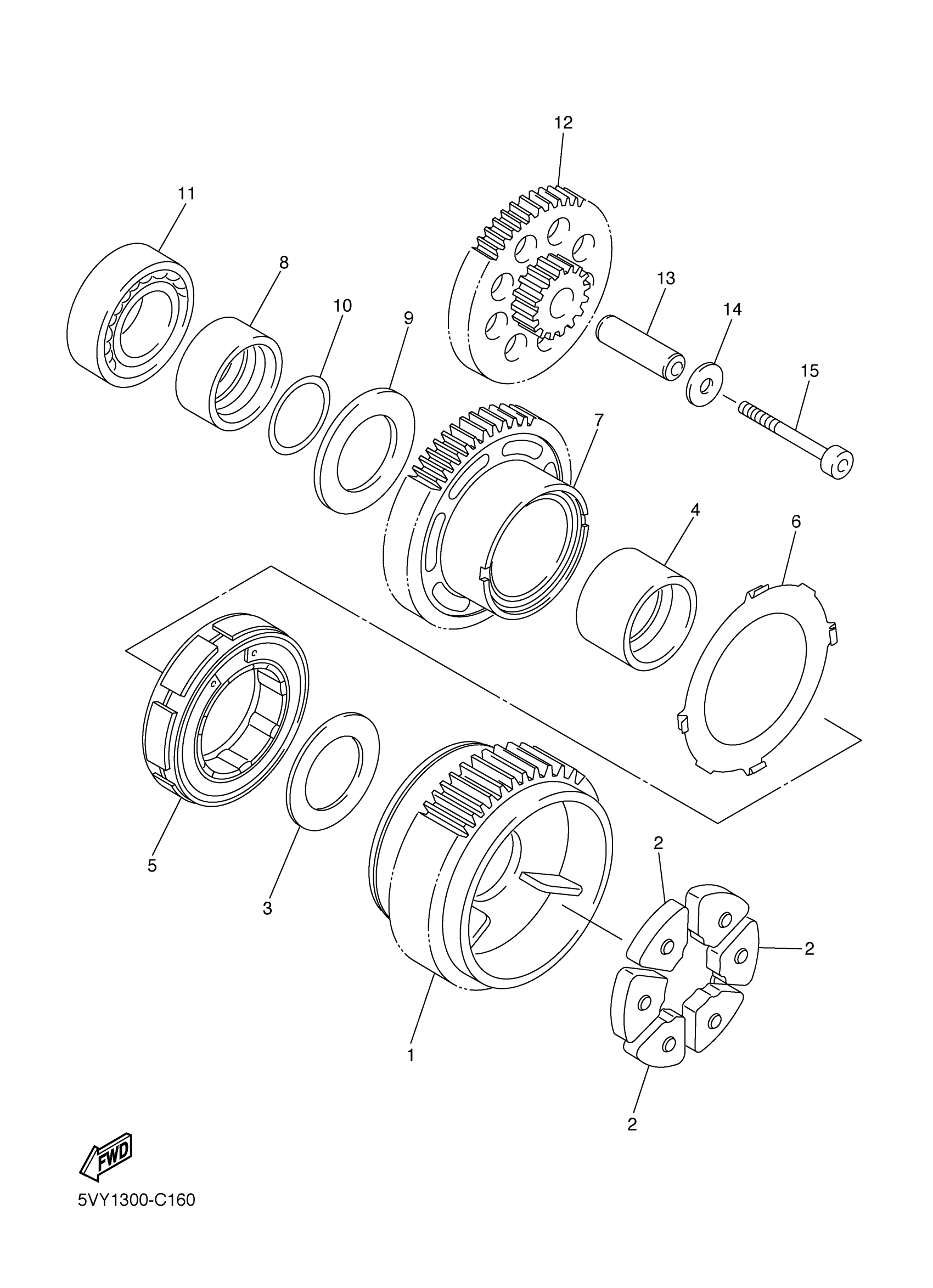

Yamaha FZS10FGY (FZS1) 2DV9 2015 STARTER Diagram

#

Description
Price

1

GEAR, DRIVEN

2D1-11537-10-00

Unavailable

2

ABSORBER 1

5VY-16155-00-00

$24.68

3

WASHER, PLATE

90201-20008-00

$5.37

4

COLLAR

5VY-11478-00-00

Unavailable

5

STARTER CLUTCH ASSY

5VY-15570-00-00

$131.47

6

PLATE, STARTER CLUTCH ASSY

5VY-15586-00-00

Unavailable

7

GEAR 3

5VY-15515-00-00

$189.99

8

SPACER

5VY-11445-00-00

Unavailable

9

WASHER, PLATE

90201-20017-00

Unavailable

10

O-RING (1L9)

93210-18322-00

$4.43

11

BEARING

93306-20230-00

$46.35

12

GEAR, IDLER 2

5VY-15517-00-00

Unavailable

13

SHAFT 1

5VY-15521-00-00

$8.50

14

WASHER, PLATE

90201-06104-00

$4.01

15

BOLT

91312-06045-00

$3.14
