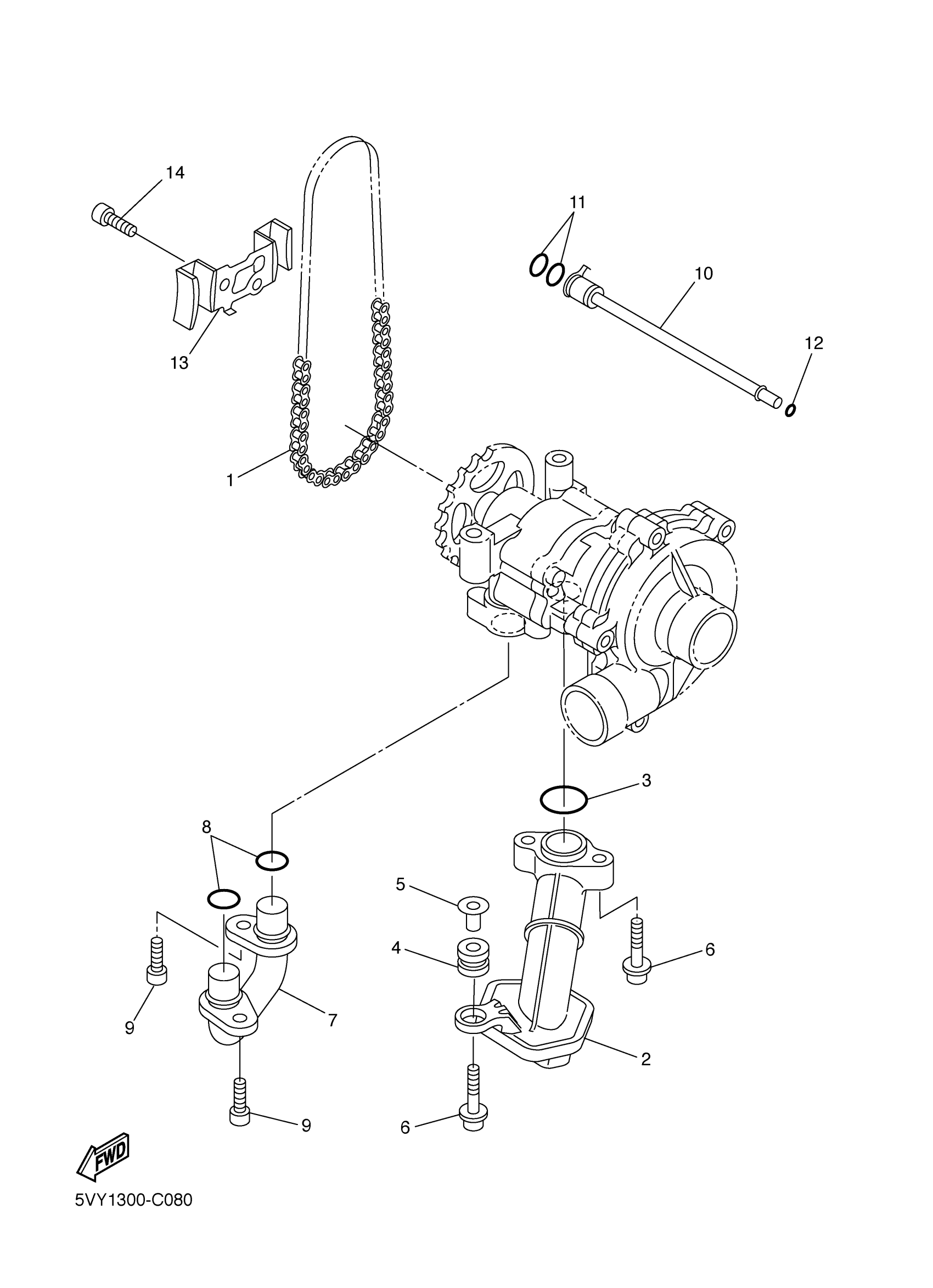

Yamaha FZS10FGY (FZS1) 2DV9 2015 OIL PUMP Diagram

#

Description
Price

1

CHAIN (DID25 78LE)

94580-25078-00

Unavailable

2

STRAINER HOUSING ASSY

5VY-13410-00-00

$69.64

3

O-RING

93210-22298-00

$6.12

4

GROMMET

90480-13010-00

$5.71

5

COLLAR, DISTANCE

5VY-13117-10-00

$8.18

6

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$7.60

7

PIPE, OIL 1

5VY-13416-00-00

Unavailable

8

O-RING

93210-14003-00

$6.02

9

BOLT,SOCKET

91317-06016-00

$1.15

10

PIPE, DELEVERY 5

5VY-1316E-00-00

$71.42

11

O-RING (1J7)

93210-09350-00

$5.42

12

O-RING(26H)

93210-06667-00

$5.42

13

HOLDER

5VY-13898-01-00

Unavailable

14

BOLT,SOCKET

91317-06012-00

$5.75
