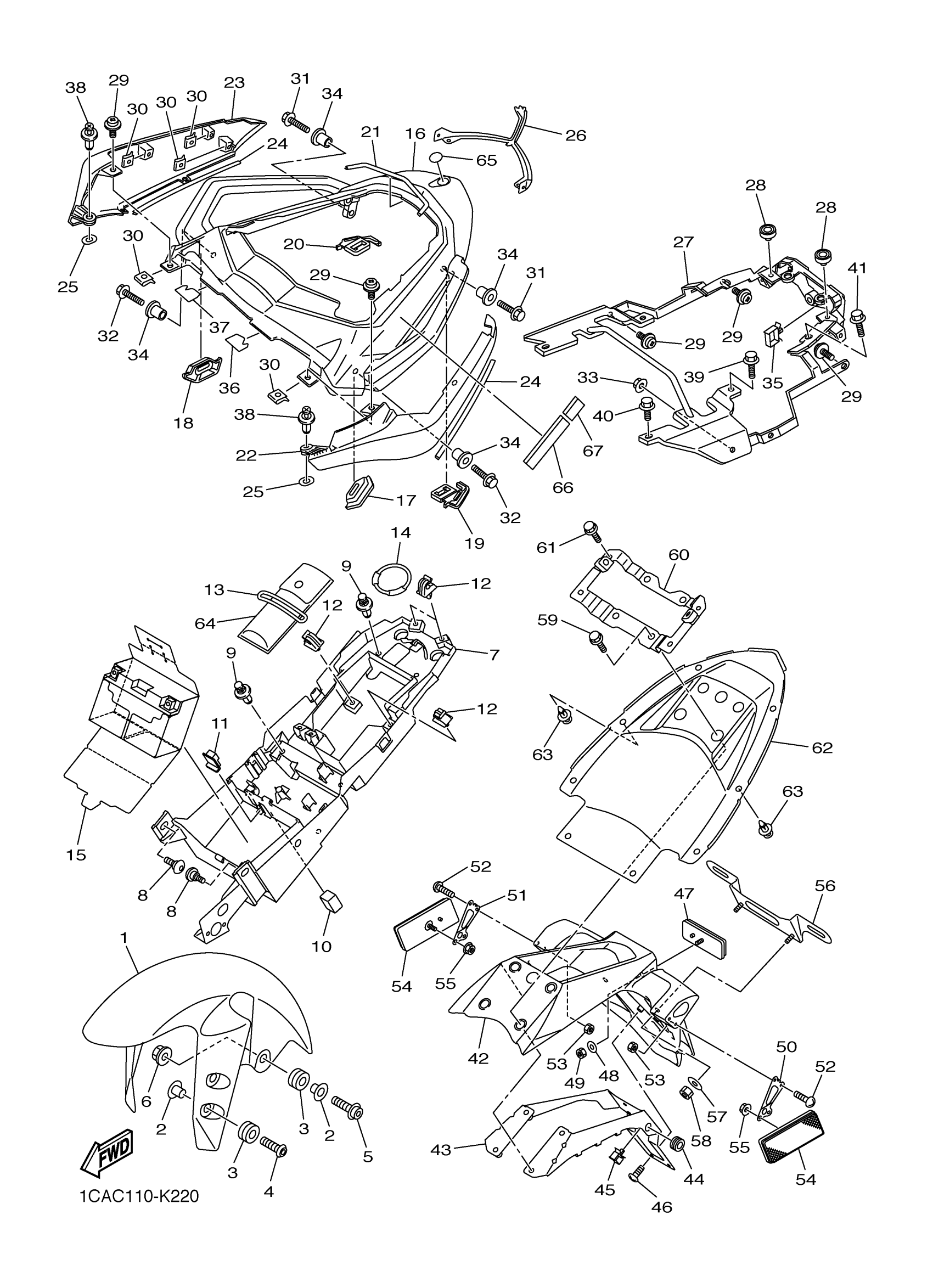

Yamaha FZS10FGY (FZS1) 2DV9 2015 FENDER Diagram
#
4
SCREW(4DN)
90149-06302-00
Unavailable
5
BOLT
90109-06031-00
Unavailable
7
BOX, BATTERY 1
2D1-8212B-02-00
Unavailable
10
SEAL, 2
2D1-216A2-00-00
Unavailable
11
SEAL, 3
2D1-216A3-00-00
Unavailable
13
BAND, TOOL
4XV-21376-00-00
Unavailable
15
SEAT, BATTERY
2D1-82122-10-00
Unavailable
16
HANDLE, SEAT
3C3-24773-00-P5
Unavailable
17
DAMPER, SEAT
3C3-24723-00-00
Unavailable
18
DAMPER, SEAT
3C3-24724-00-00
Unavailable
19
DAMPER, SEAT
3C3-24737-00-00
Unavailable
20
DAMPER, SEAT
3C3-24747-00-00
Unavailable
21
DAMPER 1
3C3-21541-00-00
Unavailable
22
COVER, TAIL 1
3C3-2471K-00-P5
Unavailable
23
COVER, TAIL 2
3C3-2472K-00-P5
Unavailable
24
PROTECTOR
3C3-2193A-00-00
Unavailable
25
DAMPER
5PW-2174X-00-00
Unavailable
26
COVER, REAR FENDER 1
3C3-2163A-00-00
Unavailable
27
BRACKET, FENDER
3C3-21617-00-00
Unavailable
28
PAD, SEAT
22W-24741-00-00
Unavailable
29
SCREW, WITH WASHER
90159-05056-00
Unavailable
30
NUT, SPRING
90183-051A0-00
Unavailable
31
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
32
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
33
NUT,FLANGE(J10)
95702-08500-00
Unavailable
34
COLLAR
90387-09012-00
Unavailable
35
CLAMP (1J7)
90464-16021-00
Unavailable
36
PROTECTOR 1
3C3-22825-00-00
Unavailable
37
PROTECTOR 2
3C3-22826-00-00
Unavailable
38
RIVET(4JH)
90269-07076-00
Unavailable
39
BOLT, FLANGE
95822-06025-00
Unavailable
40
BOLT, FLANGE
95817-06014-00
Unavailable
41
BOLT, FLANGE
95817-08012-00
Unavailable
42
GUARD, MUD
2D1-21629-10-00
Unavailable
43
BRACKET, REAR STAY
2D1-21688-02-00
Unavailable
44
GROMMET
90480-13004-00
Unavailable
45
CLAMP (1J7)
90464-16021-00
Unavailable
46
SCREW, TAPPING
97702-50016-00
Unavailable
47
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
48
WASHER, PLATE
90201-05043-00
Unavailable
49
NUT, U
95617-05100-00
Unavailable
50
BRACKET, REAR STAY
5VY-21688-00-00
Unavailable
51
BRACKET, REAR STAY 2
5VY-21689-00-00
Unavailable
52
SCREW, ROUND HEAD(4KM)
90150-04041-00
Unavailable
53
NUT, U (7LY)
95617-04100-00
Unavailable
54
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
55
NUT, FLANGE
95702-05500-00
Unavailable
56
BRACKET, LICENSE
39P-84751-00-00
Unavailable
57
WASHER, PLATE
90201-06088-00
Unavailable
58
NUT, SELF-LOCKING
95617-06100-00
Unavailable
59
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
60
BRACKET, REAR FENDER
3C3-21261-00-00
Unavailable
61
BOLT, FLANGE
95817-06020-00
Unavailable
62
FENDER, REAR
3C3-21611-00-00
Unavailable
64
TOOL KIT
39P-28100-01-00
Unavailable
65
TUNING FORK MARK
4KN-2836B-00-00
Unavailable
66
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
67
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
