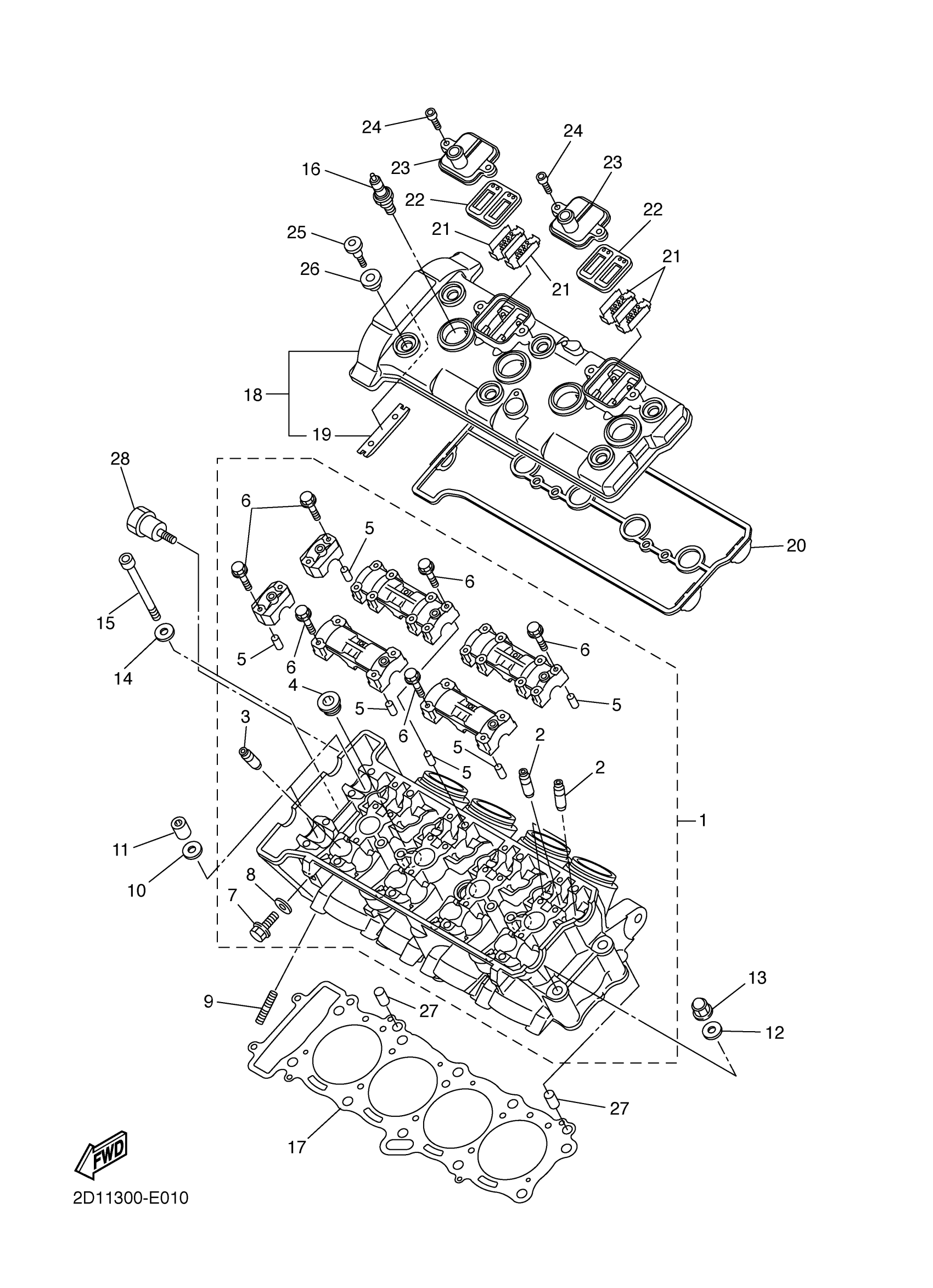

Yamaha FZS10FGY (FZS1) 2DV9 2015 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5VY-11101-20-00

Unavailable

2

GUIDE, VALVE 1

5VY-11133-30-00

Unavailable

3

GUIDE, VALVE 2

5VY-11134-10-00

$108.99

4

PLUG, STRAIGHT SCREW

90340-18002-00

$10.49

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

. BOLT, FLANGE

90105-06026-00

Unavailable

7

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

8

GASKET 256113960000

90430-06014-00

Unavailable

9

BOLT, STUD

95612-08625-00

$7.49

10

WASHER, PLATE

90201-10033-00

$8.49

11

NUT

90179-10006-00

$9.49

12

WASHER, PLATE

90201-10033-00

$8.49

13

NUT, CROWN(2GG)

90176-10075-00

$8.49

14

WASHER, PLATE

90201-06034-00

$8.49

15

BOLT,SOCKET

91314-06105-00

$9.49

16

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

17

GASKET, CYLINDER HEAD 1

2D1-11181-00-00

Unavailable

18

COVER, CYLINDER HEAD 1

5VY-11191-02-00

Unavailable

19

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

20

GASKET, HEAD COVER 1

5VY-11193-10-00

Unavailable

21

PLATE

5VY-1482K-00-00

Unavailable

22

REED VALVE ASSY

5SL-14890-10-00

Unavailable

23

CAP, CASE

5VY-14899-01-00

Unavailable

24

BOLT,SOCKET

91317-06025-00

Unavailable

25

BOLT(4BP)

90109-066F0-00

Unavailable

26

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

27

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

28

BOLT, MOUNT

2D1-11026-10-00

Unavailable
