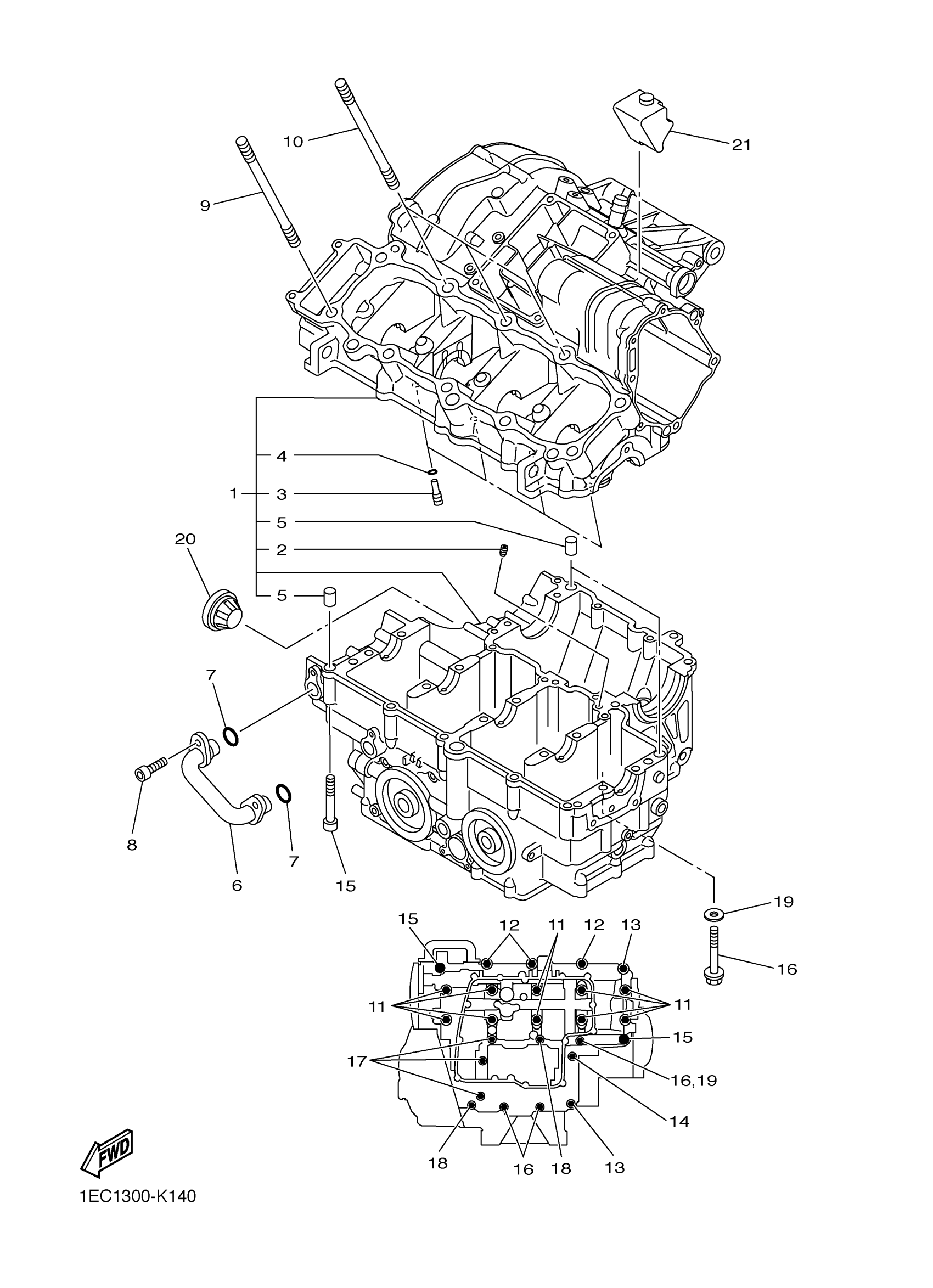

Yamaha FZS10FGY (FZS1) 2DV9 2015 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

4C8-15100-19-00

Unavailable

2

NOZZLE 1

4XV-15138-00-00

Unavailable

3

NOZZLE 3

5EB-15155-00-00

$11.48

4

O-RING (210)

93210-04092-00

$2.69

5

PIN, DOWEL(3VD)

99530-10114-00

$2.13

6

PIPE, OIL 2

5VY-13418-11-00

Unavailable

7

O-RING

93210-14003-00

$6.02

8

BOLT,SOCKET

91317-06016-00

$1.15

9

BOLT, STUD

90116-10032-00

$11.42

10

BOLT, STUD

90116-10023-00

$20.58

11

BOLT, WITH WASHER

90119-09012-00

Unavailable

12

BOLT, FLANGE

95817-08050-00

$2.93

13

BOLT, FLANGE

95817-08060-00

$3.05

14

BOLT, FLANGE

95817-08060-00

$3.05

15

BOLT

90109-06100-00

$7.10

16

BOLT, FLANGE

95812-06060-00

Unavailable

17

BOLT, FLANGE

95812-06070-00

Unavailable

18

BOLT, FLANGE

95812-06050-00

Unavailable

19

GASKET (4V2)

90430-06166-00

Unavailable

20

GAUGE, LEVEL

5PW-15361-00-00

Unavailable

21

DAMPER, ENGINE MOUNT 1

5VY-15316-00-00

Unavailable
