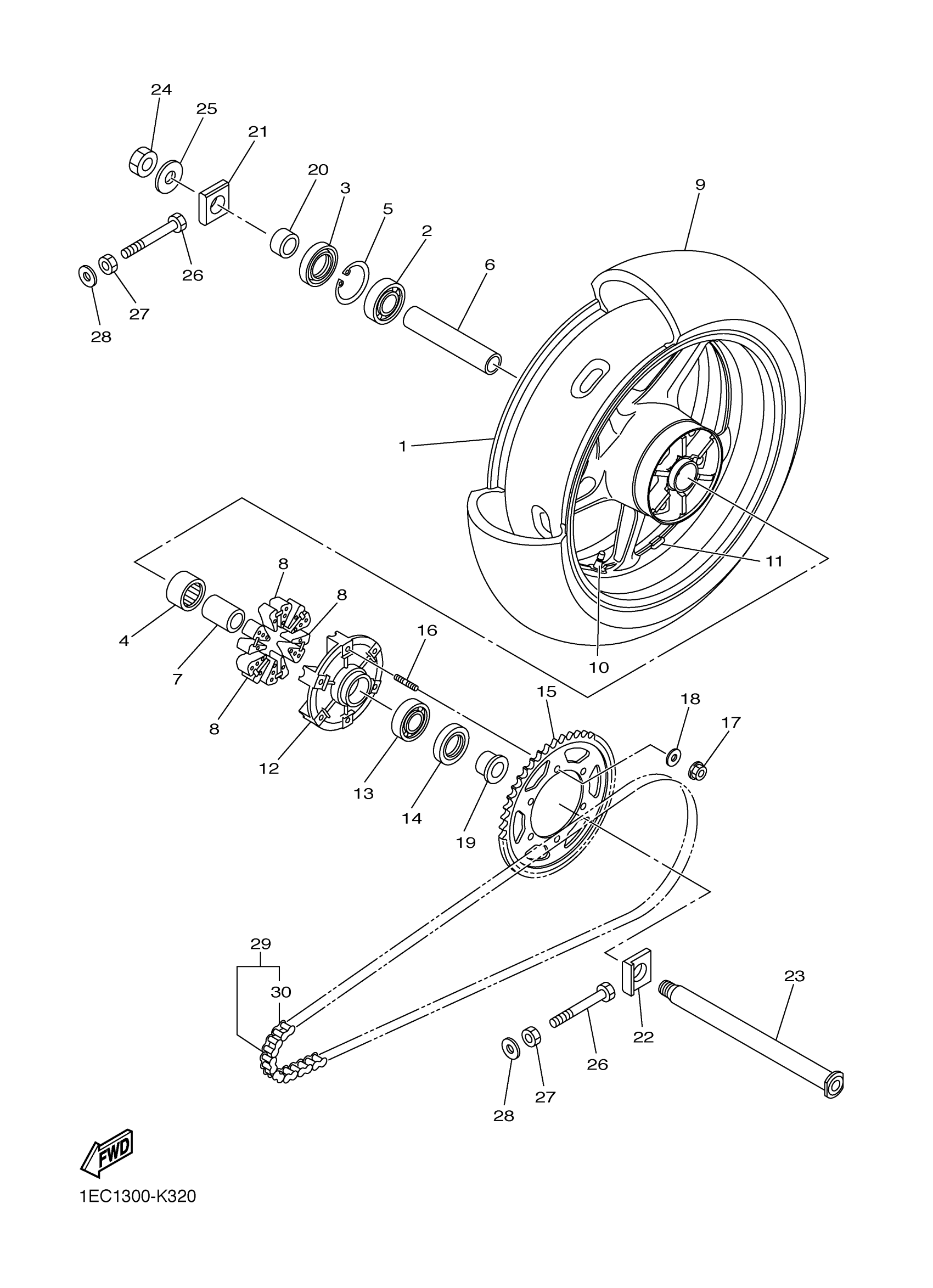

Yamaha FZS10EW (FZ1) 2DV3 2014 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5VY-25338-00-98

$880.99

2

BEARING(3JN)

93306-20531-00

$50.99

3

OIL SEAL

93106-40013-00

$14.99

4

BEARING

93317-33590-00

$75.99

5

CIRCLIP

93420-61M07-00

Unavailable

6

COLLAR

90387-28018-00

Unavailable

7

COLLAR, WHEEL

2D1-25377-00-00

Unavailable

8

DAMPER

5LV-25364-00-00

$19.99

9

TIRE (190/50 ZR17M/C 73W D221)

94119-17062-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

2D1-25366-00-00

Unavailable

13

BEARING(3JN)

93306-20531-00

$50.99

14

OIL SEAL

93106-40013-00

$14.99

15

SPROCKET, DRIVEN (45T)

2D1-25445-20-00

Unavailable

16

BOLT, STUD

90116-10048-00

Unavailable

17

NUT, SELF-LOCKING

90185-10009-00

Unavailable

18

WASHER, PLATE

90201-10021-00

Unavailable

19

COLLAR

90387-28019-00

Unavailable

20

COLLAR

90387-28017-00

Unavailable

21

PULLER, CHAIN 1

5VY-25388-00-00

Unavailable

22

PULLER, CHAIN 2

5VY-25389-01-00

Unavailable

23

AXLE, WHEEL

2D1-25381-00-00

Unavailable

24

NUT, SELF-LOCKING

90185-24008-00

Unavailable

25

WASHER, PLATE

90201-25020-00

Unavailable

26

BOLT

90101-08013-00

Unavailable

27

NUT

95302-08600-00

Unavailable

28

WASHER, PLATE

90201-08057-00

Unavailable

29

CHAIN (DID50VA8-122L)

94582-10122-00

Unavailable

30

JOINT, CHAIN

94682-05031-00

Unavailable
