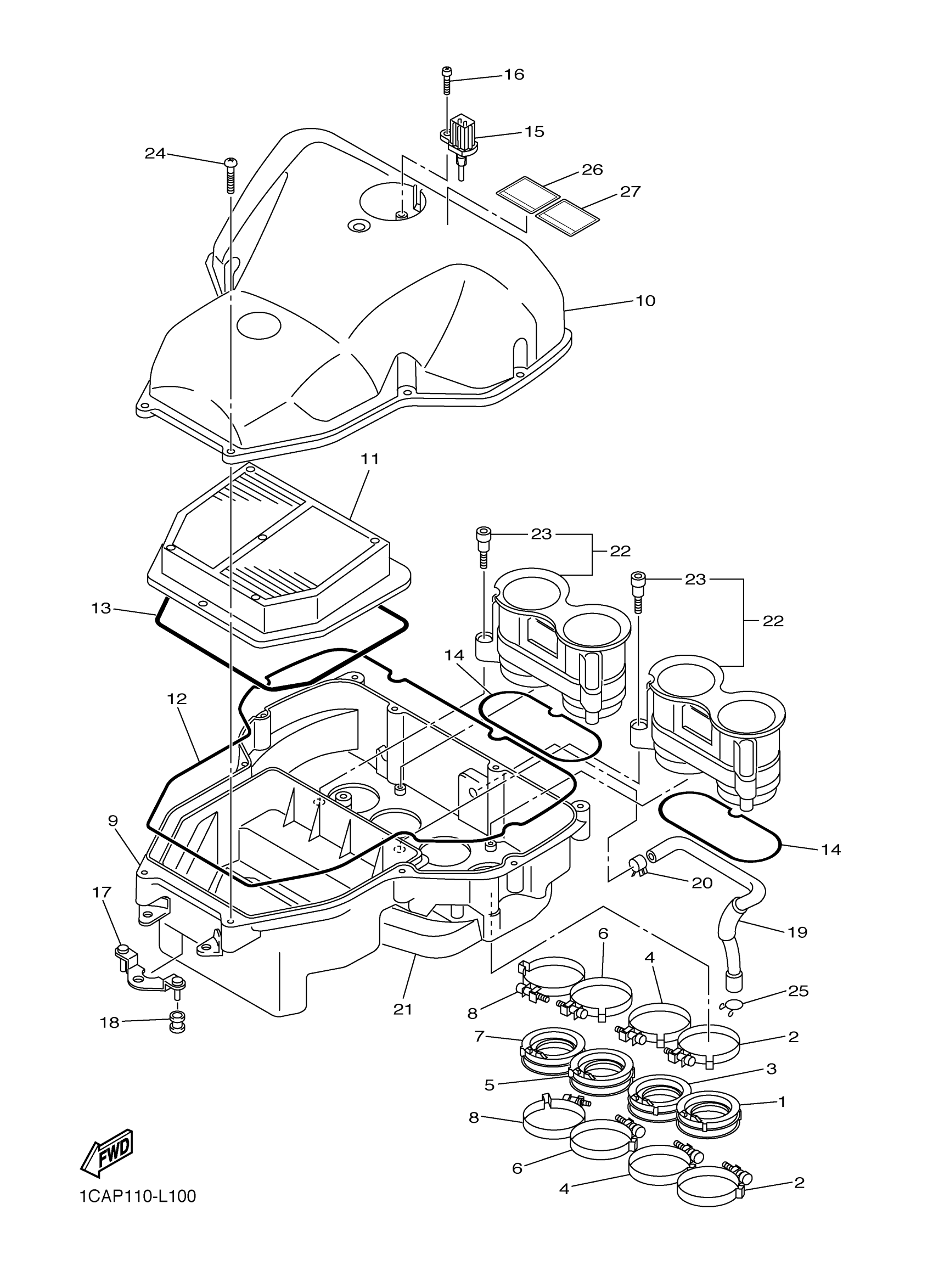

Yamaha FZS10EW (FZ1) 2DV3 2014 INTAKE Diagram

#

Description
Price

1

JOINT

5VY-13595-00-00

$37.99

2

HOSE CLAMP ASSY

90450-62004-00

Unavailable

3

JOINT, CARBURETOR 2

5VY-13596-00-00

Unavailable

4

HOSE CLAMP ASSY

90450-62004-00

Unavailable

5

JOINT, CARBURETOR 3

5VY-13597-00-00

Unavailable

6

HOSE CLAMP ASSY

90450-62004-00

Unavailable

7

JOINT, CARBURETOR 4

5VY-13598-00-00

Unavailable

8

HOSE CLAMP ASSY

90450-62004-00

Unavailable

9

CASE, AIR CLEANER 1

2D1-14411-00-00

Unavailable

10

CASE, AIR CLEANER 2

2D1-14421-00-00

Unavailable

11

ELEMENT, AIR CLEANER

2D1-14451-00-00

$35.99

12

SEAL

2D1-14452-00-00

$7.99

13

SEAL

2D1-14462-00-00

Unavailable

14

SEAL

5VY-14457-00-00

$7.99

15

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

16

SCREW, PANHEAD TAPPING

97702-50520-00

Unavailable

17

STAY 1

2D1-14498-00-00

Unavailable

18

GROMMET (3Y2)

90480-08264-00

Unavailable

19

PIPE, BREATHER 2

2D1-15393-00-00

Unavailable

20

CLIP

90467-14171-00

Unavailable

21

DAMPER

2D1-14409-00-00

Unavailable

22

JOINT ASSY

2D1-1440B-00-00

Unavailable

23

BOLT

90109-05005-00

Unavailable

24

SCREW, TRUSS TAP.

97707-50025-00

Unavailable

25

CLIP (371)

90467-14015-00

Unavailable

26

PLATE, ROUTING

5VX-21684-00-00

Unavailable

27

PLATE, ROUTING 2

5SL-21686-00-00

Unavailable
