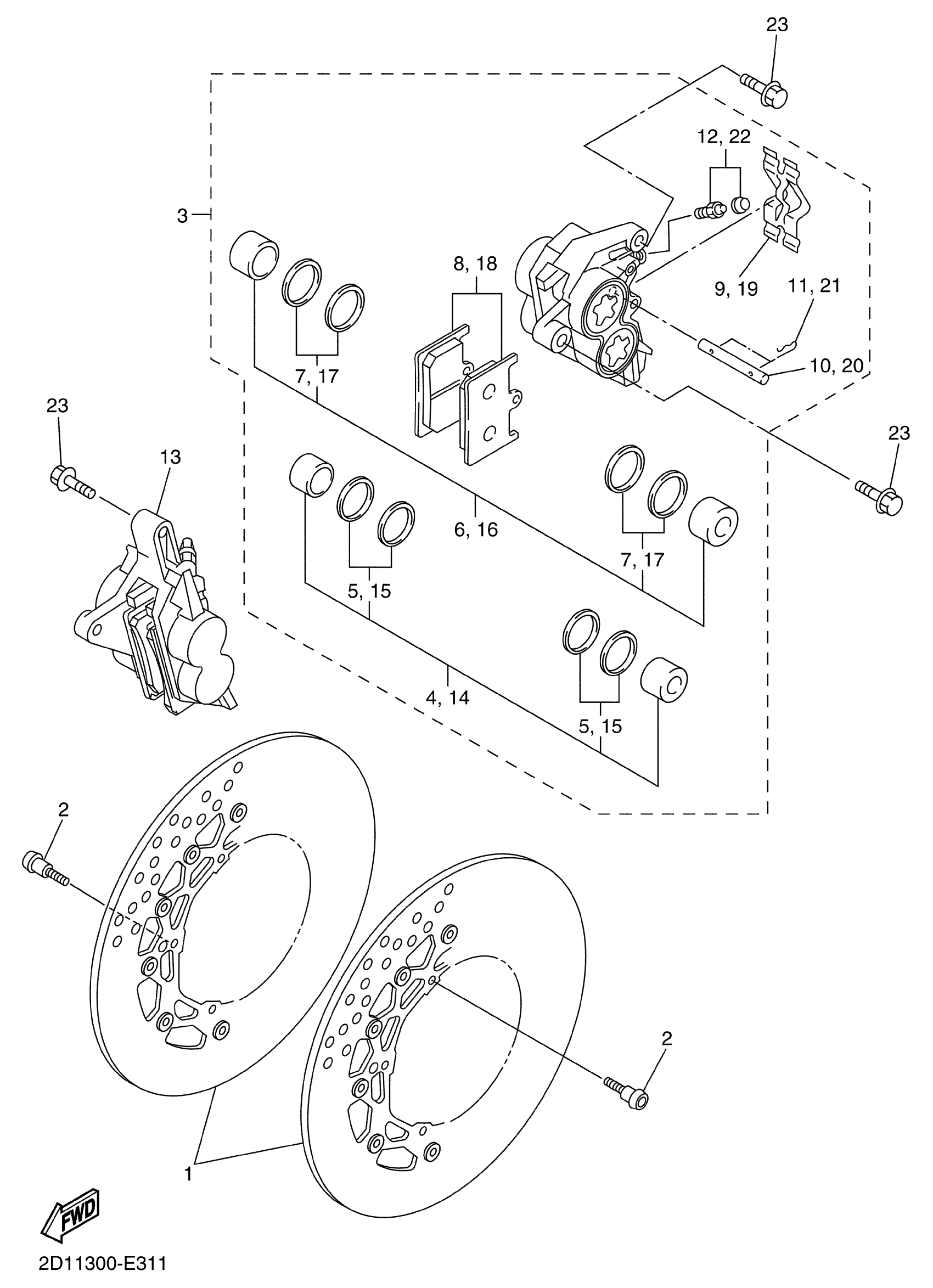

Yamaha FZS10EW (FZ1) 2DV3 2014 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

5D0-2581T-10-00

$279.99

2

SCREW

90149-06045-00

$8.49

3

CALIPER ASSY (LEFT)

2D1-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

5

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

6

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

7

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

8

BRAKE PAD KIT

5SL-25805-00-00

$59.99

9

SUPPORT, PAD

4SV-25919-00-00

$35.99

10

PIN, PAD

4SV-25924-00-00

$42.99

11

CLIP, PAD PIN

3GM-25925-00-00

$11.99

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

CALIPER ASSY (RIGHT)

2D1-2580U-00-00

Unavailable

14

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

15

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

16

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

17

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

18

BRAKE PAD KIT

5SL-25805-00-00

$59.99

19

SUPPORT, PAD

4SV-25919-00-00

$35.99

20

PIN, PAD

4SV-25924-00-00

$42.99

21

CLIP, PAD PIN

3GM-25925-00-00

$11.99

22

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

23

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
