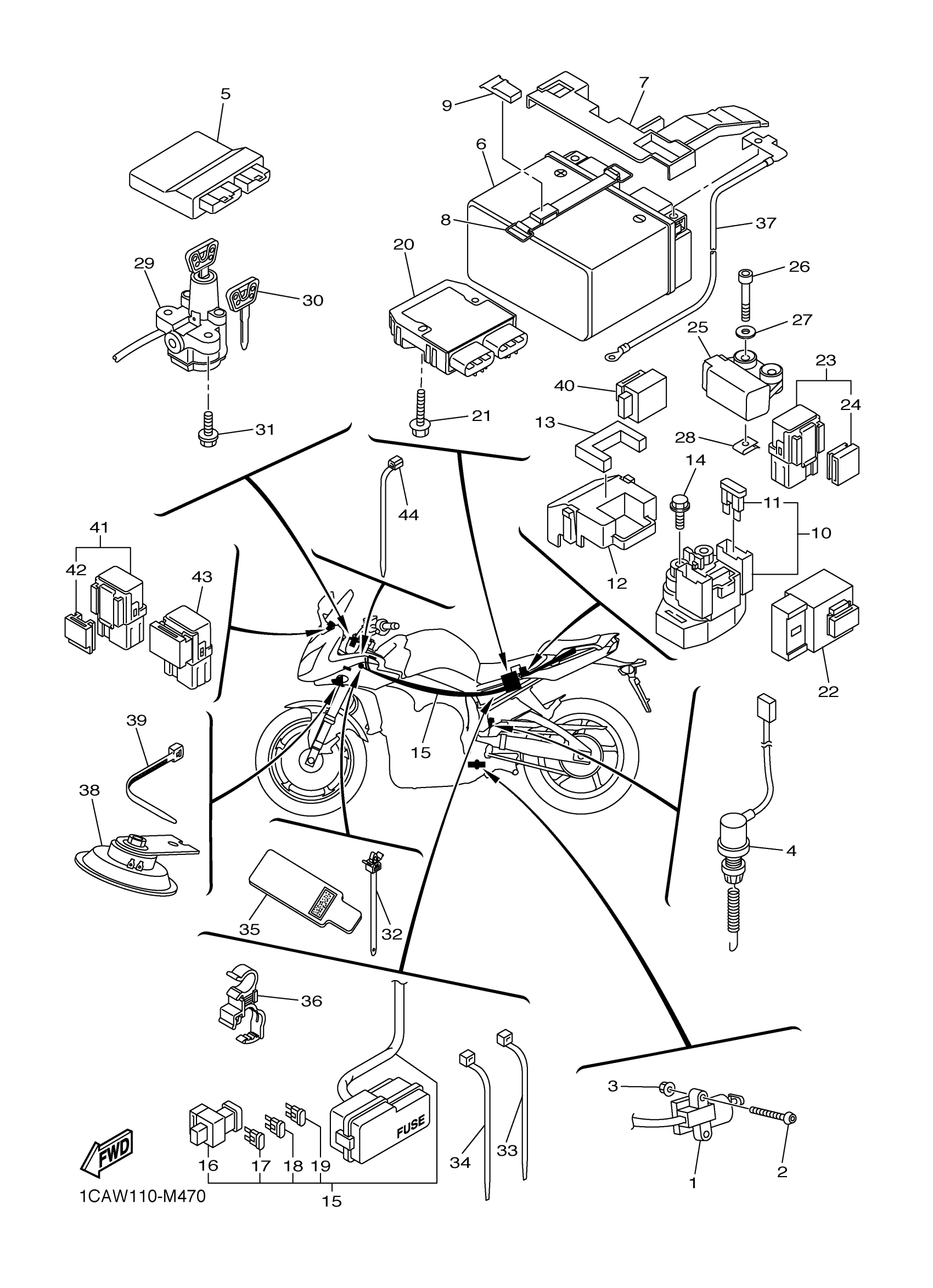

Yamaha FZS10EW (FZ1) 2DV3 2014 ELECTRICAL 2 Diagram

#

Description
Price

1

SWITCH, SIDE STAND

5VS-82566-62-00

$79.99

2

BOLT, BUTTON HEAD

92012-05030-00

$7.49

3

NUT, S/L FLANGE

95607-05200-00

$9.49

4

STOP SWITCH ASSY

2D1-82530-01-00

$67.99

5

ENGINE CONTROL UNIT ASSY

3C3-8591A-80-00

Unavailable

6

BATTERY YTZ14S

YTZ-14S00-00-00

Unavailable

7

COVER, BATTERY

2D1-82129-00-00

$10.99

8

BAND, BATTERY

2D1-82131-00-00

Unavailable

9

HOOK

5YU-2162A-00-00

Unavailable

10

STARTER RELAY ASSY (RC19-054)

2C0-81940-00-00

Unavailable

11

FUSE (12V 15A)

36Y-82151-00-00

$4.94

12

COVER, LEAD WIRE

5SL-82119-10-00

$4.68

13

DAMPER

2D1-82176-00-00

$1.46

14

BOLT, FLANGE

95022-06008-00

$8.49

15

WIRE HARNESS ASSY

1CA-82590-10-00

Unavailable

16

FUSE (50A)

5JW-82151-10-00

Unavailable

17

FUSE

5JJ-82151-20-00

Unavailable

18

FUSE (15A)

67F-82151-50-00

Unavailable

19

. FUSE (10A)

67F-82151-40-00

Unavailable

20

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

21

BOLT, FLANGE

95822-06025-00

Unavailable

22

RELAY ASSY

5VK-81950-43-00

Unavailable

23

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

24

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

25

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

26

BOLT

91312-04025-00

Unavailable

27

WASHER, PLATE

90201-04030-00

Unavailable

28

NUT, SPRING(47R)

90183-04039-00

Unavailable

29

MAIN SWITCH STEERING LOCK

3C3-82501-10-00

Unavailable

30

BLANK KEY

4BH-82511-09-00

Unavailable

31

BOLT

90109-08196-00

Unavailable

32

CLAMP(2TV)

90464-10112-00

Unavailable

33

BAND

1UA-82591-00-00

Unavailable

34

CLAMP(4FM)

90464-15195-00

Unavailable

35

PROTECTER, WIRE HA

2D1-82589-02-00

Unavailable

36

CLAMP

90464-12012-00

Unavailable

37

WIRE, MINUS LEAD

2D1-82116-00-00

Unavailable

38

HORN

2D1-83371-00-00

Unavailable

39

BAND

3MA-82591-00-00

Unavailable

40

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

41

RELAY ASSY

1TP-81950-00-00

Unavailable

42

HOLDER,RELAY

5EA-81952-00-00

Unavailable

43

RELAY ASSY

5DM-81950-01-00

Unavailable

44

CLAMP

90464-13077-00

Unavailable
