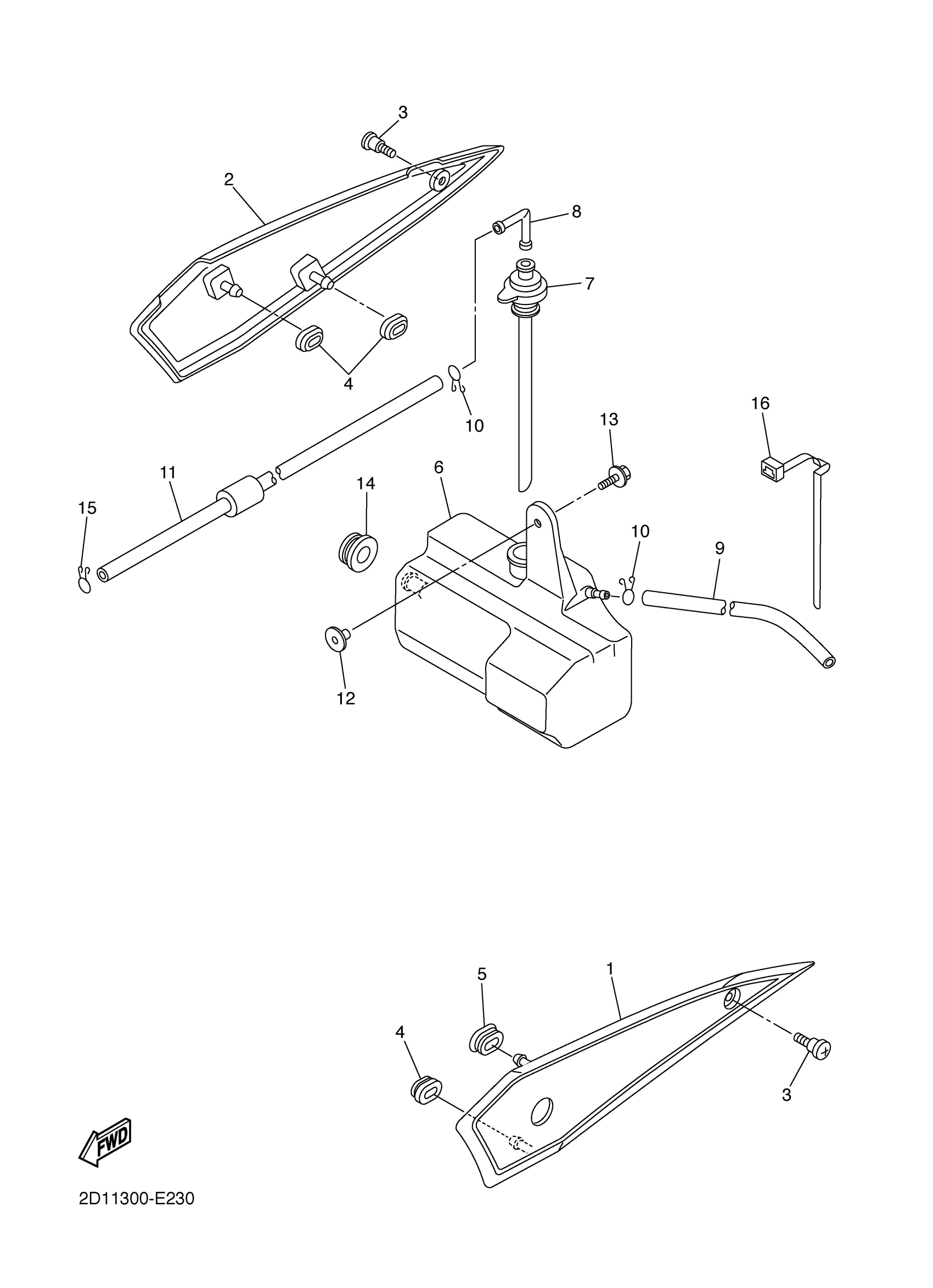

Yamaha FZS10DC (FZ1 CA) 1CAX 2013 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

2D1-21711-00-00

$35.99

2

COVER, SIDE 2

2D1-21721-00-00

$35.99

3

SCREW (5G6)

90149-06165-00

$4.67

4

GROMMET(4BH)

90480-01559-00

$5.60

5

GROMMET

2D1-21719-00-00

Unavailable

6

TANK, RECOVERY

2D1-21871-00-00

$58.99

7

CAP

5VY-21875-00-00

$15.49

8

ELBOW

26H-21828-00-00

$27.99

9

HOSE (L660)

90445-08022-00

$7.49

10

CLIP (16G)

90467-08021-00

$8.49

11

HOSE (L700)

90445-087K6-00

$14.99

12

C0LLAR

90387-062M9-00

$9.49

13

BOLT, WITH WASHER

90119-06212-00

$8.49

14

GROMMET

90480-20001-00

$4.41

15

CLIP (16G)

90467-08021-00

$8.49

16

CLAMP(6U0)

90464-07M40-00

Unavailable
