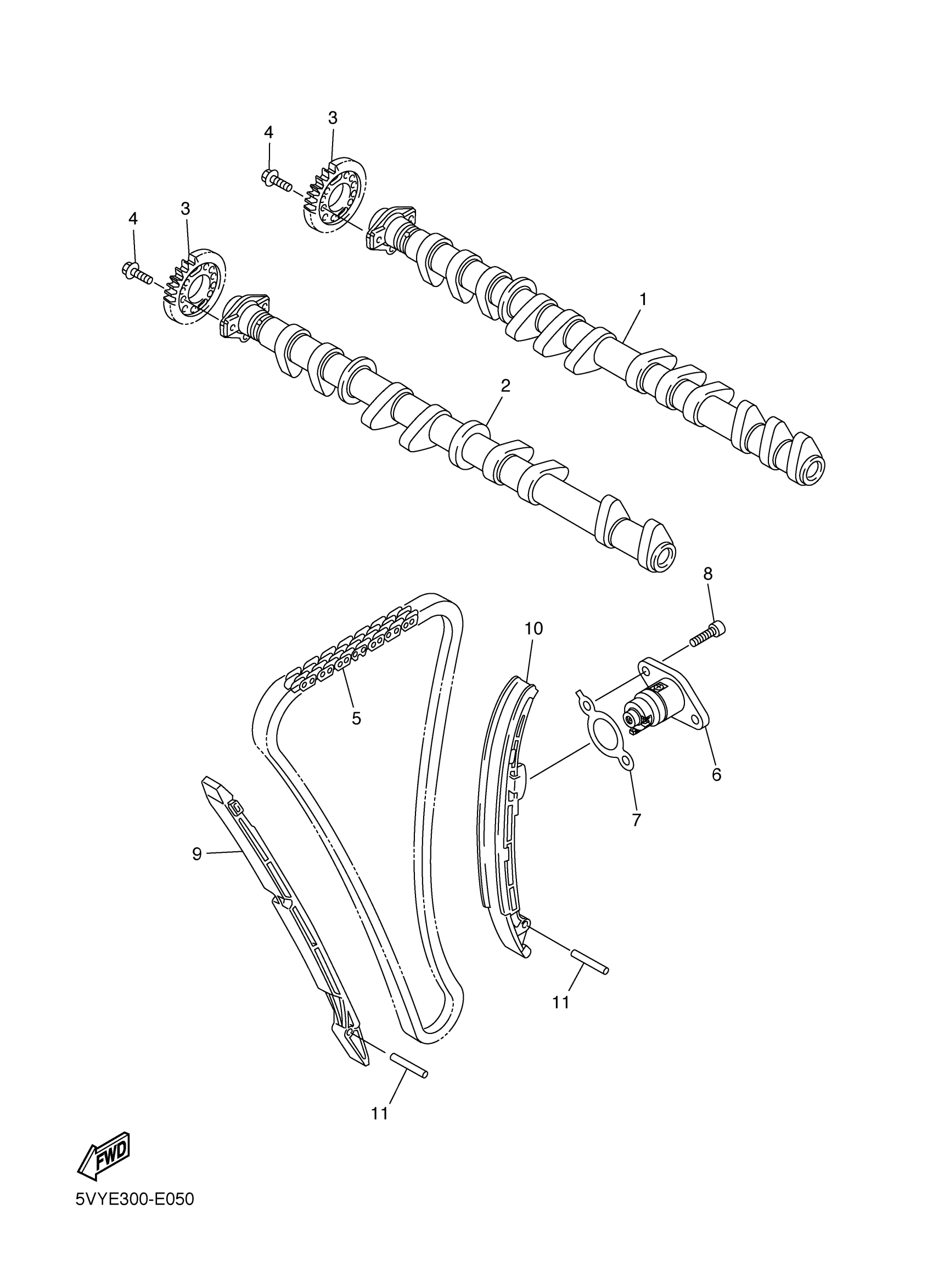

Yamaha FZS10DC (FZ1 CA) 1CAX 2013 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

2D1-12170-10-00

$300.71

2

CAMSHAFT ASSY 2

2D1-12180-20-00

Unavailable

3

SPROCKET, CAM CHAIN

14B-12176-00-00

$82.07

4

BOLT, FLANGE

90105-07006-00

$5.84

5

CHAIN

94591-60122-00

$36.30

6

TENSIONER ASSY, CAM CHAIN

5VY-12210-22-00

Unavailable

7

GASKET, TENSIONER CASE

2D1-12213-00-00

Unavailable

8

BOLT,SOCKET HEAD

91314-06020-00

$1.91

9

DAMPER, CHAIN 1

5VY-12251-00-00

$36.30

10

DAMPER, CHAIN 2

5VY-12252-01-00

$115.51

11

PIN, DOWEL

93607-44002-00

$3.95
