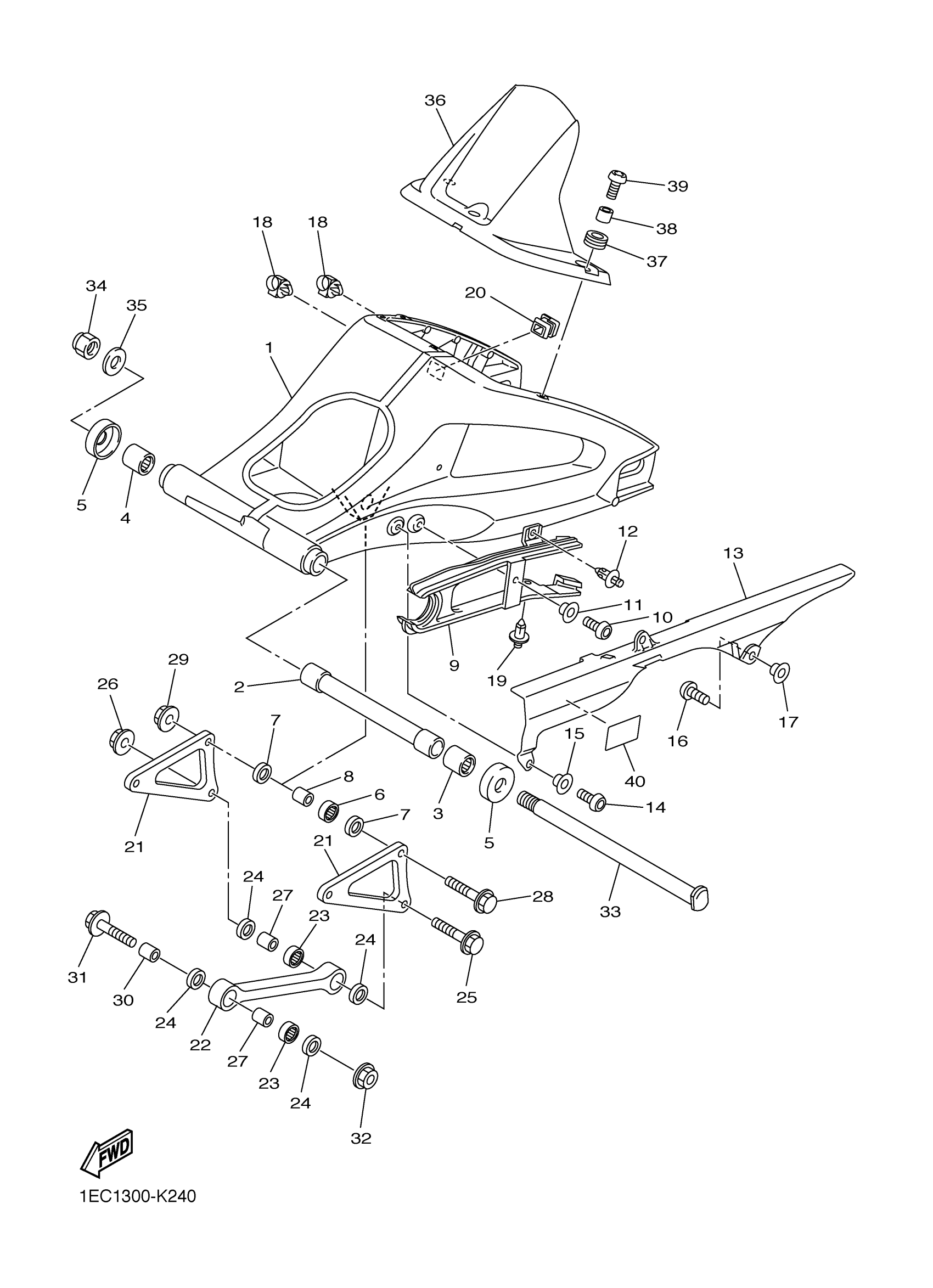

Yamaha FZS10BW (FZ1) 1CAP 2012 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

39P-22110-00-00

Unavailable

2

BUSH

39P-22184-00-00

Unavailable

3

BEARING

93317-42599-00

$24.29

4

BEARING

93317-425B7-00

Unavailable

5

COVER, THRUST 1

5JJ-22128-00-00

$28.89

6

BEARING

93315-41762-00

$54.82

7

OIL SEAL

93109-17071-00

$6.29

8

COLLAR

90387-1012A-00

$16.59

9

SEAL, GUARD

2D1-22151-00-00

$107.06

10

BOLT, BUTTON HEAD

92012-06014-00

$5.76

11

COLLAR

90387-06130-00

$6.75

12

RIVET

90269-07007-00

$3.14

13

CASE, CHAIN

5SL-22311-01-00

Unavailable

14

BOLT, BUTTON HEAD

92012-06014-00

$5.76

15

COLLAR

90387-06130-00

$6.75

16

BOLT, HEXAGON SOCKET HEAD(1FK)

90110-06102-00

Unavailable

17

COLLAR

90387-06009-00

Unavailable

18

CLAMP

90464-17003-00

Unavailable

19

RIVET

90269-07008-00

Unavailable

20

CAP

2D1-22117-00-00

Unavailable

21

ARM, RELAY

2D1-2217A-10-00

Unavailable

22

ARM 1

2D1-2217M-00-00

Unavailable

23

BEARING

93315-31758-00

Unavailable

24

OIL SEAL

93109-17071-00

$6.29

25

BOLT, FLANGE

90105-10283-00

Unavailable

26

NUT, S/L FLANGE

95602-10200-00

Unavailable

27

COLLAR

90387-1012A-00

$16.59

28

BOLT, FLANGE

90105-10283-00

Unavailable

29

NUT, S/L FLANGE

95602-10200-00

Unavailable

30

COLLAR

90387-10043-00

Unavailable

31

BOLT, FLANGE

90105-10211-00

Unavailable

32

NUT, S/L FLANGE

95602-10200-00

Unavailable

33

SHAFT, PIVOT

39P-22141-00-00

Unavailable

34

NUT, SELF-LOCKING

90185-18009-00

Unavailable

35

WASHER, PLATE

90201-18013-00

Unavailable

36

REAR FENDER COMP.

2D1-21650-00-00

Unavailable

37

GROMMET

90480-12003-00

Unavailable

38

COLLAR

90387-06219-00

Unavailable

39

SCREW(4DN)

90149-06302-00

Unavailable

40

LABEL, TIRE

14B-21668-01-00

Unavailable
