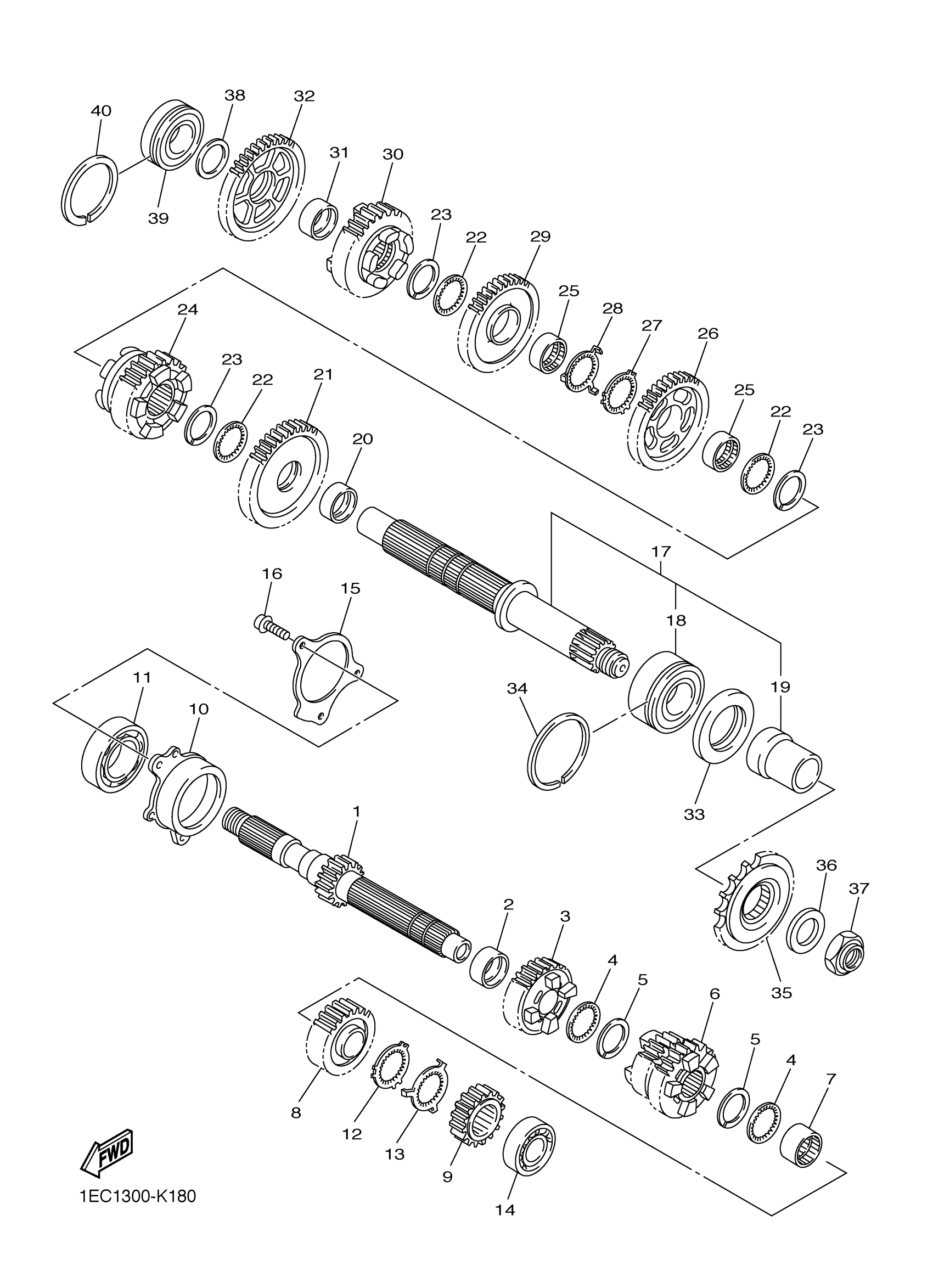

Yamaha FZS10AS (FZ1) 1CAC 2011 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

2D1-17411-00-00

Unavailable

2

COLLAR

90387-28003-00

$29.99

3

GEAR, 5TH PINION

2D1-17151-00-00

Unavailable

4

WASHER

90209-25011-00

$8.49

5

CIRCLIP

93440-28184-00

$4.67

6

GEAR, 3RD PINION

2D1-17131-00-00

Unavailable

7

COLLAR

90387-25007-00

$28.99

8

GEAR, 6TH PINION

2D1-17161-00-00

Unavailable

9

GEAR, 2ND PINION

2D1-17121-10-00

Unavailable

10

HOUSING, BEARING 1

5VY-15163-00-00

Unavailable

11

BEARING

93306-20652-00

Unavailable

12

WASHER, CLAW

90214-25004-00

$9.49

13

WASHER, CLAW

90214-25003-00

$9.49

14

BEARING

93306-27209-00

$76.99

15

PLATE

5VY-17446-00-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

17

DRIVE AXLE ASSY

4C8-17402-00-00

Unavailable

18

BEARING(36Y)

93305-20605-00

Unavailable

19

COLLAR, DISTANCE

5VY-17442-00-00

Unavailable

20

COLLAR

90387-31003-00

Unavailable

21

GEAR, 2ND WHEEL

2D1-17221-00-00

Unavailable

22

WASHER

90209-28008-00

Unavailable

23

CIRCLIP

93440-31187-00

Unavailable

24

GEAR, 6TH WHEEL

2D1-17261-00-00

Unavailable

25

COLLAR

90387-28004-00

Unavailable

26

GEAR, 4TH WHEEL (35T)

5VY-17241-00-00

Unavailable

27

WASHER, CLAW

90214-29002-00

Unavailable

28

WASHER, CLAW

90214-28002-00

Unavailable

29

GEAR, 3RD WHEEL (37T)

5VY-17231-00-00

Unavailable

30

GEAR, 5TH WHEEL

2D1-17251-01-00

Unavailable

31

COLLAR

90387-25008-00

Unavailable

32

GEAR,1ST WHEEL (38T)

5VY-17211-00-00

Unavailable

33

OIL SEAL(36Y)

93102-40330-00

Unavailable

34

CIRCLIP (409)

93440-62032-00

Unavailable

35

SPROCKET,DRIVE 17T

3CV-17460-00-00

Unavailable

36

WASHER, PLATE

90201-22015-00

Unavailable

37

NUT

90179-22018-00

Unavailable

38

WASHER, PLATE(36Y)

90201-257H0-00

Unavailable

39

BEARING

93306-205A2-00

Unavailable

40

CIRCLIP (168)

93440-52009-00

Unavailable
