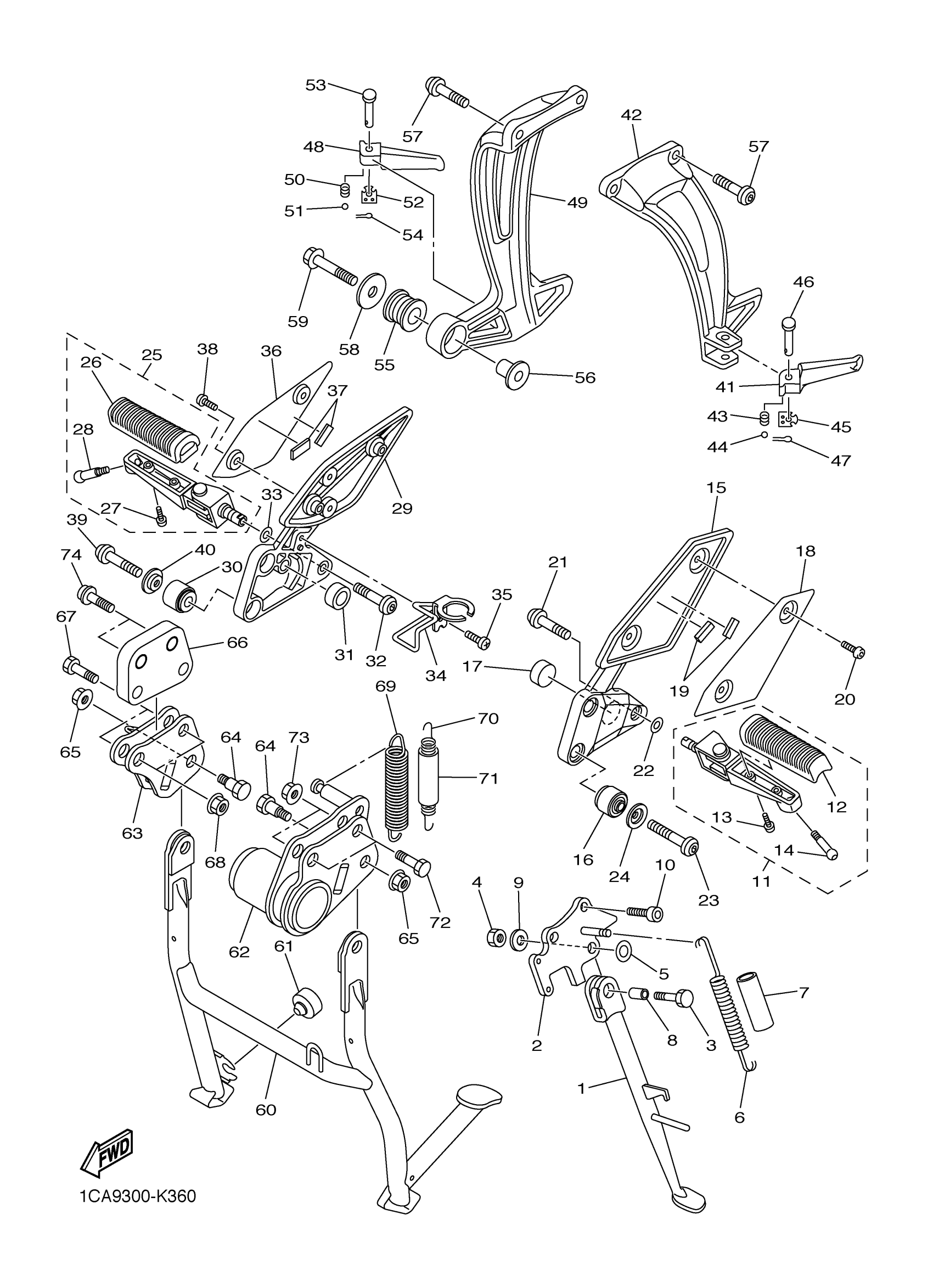

Yamaha FZS10AS (FZ1) 1CAC 2011 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

39P-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

2D1-27321-00-00

Unavailable

3

BOLT

90101-10025-00

$8.49

4

NUT, SELF-LOCKING

90185-10023-00

Unavailable

5

WASHER, PLATE

90201-16027-00

$8.49

6

SPRING, TENSION

90506-18020-00

$13.49

7

HOSE (L60)

90445-19002-00

$7.49

8

COLLAR

90387-10050-00

Unavailable

9

WASHER, PLATE

90201-10035-00

$4.19

10

BOLT

91312-10030-00

$3.02

11

FRONT FOOTREST ASSY (LEFT)

2D1-27410-00-00

Unavailable

12

COVER, FOOTREST

4BP-27413-00-00

$30.99

13

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

14

BOLT

90109-08177-00

$10.49

15

BRACKET 2

2D1-27442-11-00

Unavailable

16

DAMPER, FOOTREST 2

1NL-27424-00-00

Unavailable

17

STOPPER, MAIN STAND

5VX-27114-00-00

Unavailable

18

COVER 1

2D1-27486-00-00

Unavailable

19

PLATE, FOOTREST

1HX-27415-00-00

Unavailable

20

BOLT, BUTTON HEAD

92014-05008-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-10040-00

Unavailable

22

WASHER, WAVE(46X)

90206-17084-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

24

WASHER(1UF)

90209-08295-00

Unavailable

25

FRONT FOOTREST ASSY (RIGHT)

2D1-27420-00-00

Unavailable

26

COVER, FOOTREST

4BP-27413-00-00

$30.99

27

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

28

BOLT

90109-08177-00

$10.49

29

BRACKET 3

2D1-27443-11-00

Unavailable

30

DAMPER, FOOTREST 2

1NL-27424-00-00

Unavailable

31

STOPPER, MAIN STAND

5VX-27114-00-00

Unavailable

32

BOLT,HEX. SOCKET BUTTON

90111-10040-00

Unavailable

33

WASHER, WAVE(46X)

90206-17084-00

Unavailable

34

STAY, STOP SWITCH

2D1-2144G-00-00

Unavailable

35

BOLT, FLANGE

95817-06008-00

Unavailable

36

COVER 2

2D1-27487-00-00

Unavailable

37

PLATE, FOOTREST

1HX-27415-00-00

Unavailable

38

BOLT, BUTTON HEAD

92014-05008-00

Unavailable

39

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

40

WASHER(1UF)

90209-08295-00

Unavailable

41

FOOTREST, REAR 1

3VR-27431-02-00

Unavailable

42

BRACKET 4

2D1-2741L-10-00

Unavailable

43

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

44

BALL

93501-04011-00

Unavailable

45

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

46

PIN, CLEVIS

91702-08040-00

Unavailable

47

PIN, COTTER

91490-25020-00

Unavailable

48

FOOTREST, REAR 2

3VR-27441-02-00

Unavailable

49

BRACKET 5

2D1-2742L-10-00

Unavailable

50

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

51

BALL

93501-04011-00

Unavailable

52

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

53

PIN, CLEVIS

91702-08040-00

Unavailable

54

PIN, COTTER

91490-25020-00

Unavailable

55

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

56

COLLAR (2H7)

90387-10636-00

Unavailable

57

BOLT

90109-085G6-00

Unavailable

58

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

59

BOLT, FLANGE

95814-10040-00

Unavailable

60

STAND, MAIN

3C3-27111-00-00

Unavailable

61

STOPPER, MAIN STAND

371-27114-00-00

Unavailable

62

BRACKET, MAIN STAND

3C3-27151-01-00

Unavailable

63

BRACKET, MAIN STAND 2

5D0-27152-00-00

Unavailable

64

BOLT

90109-10029-00

Unavailable

65

NUT, S/L FLANGE

95602-10200-00

Unavailable

66

BEACKET,ADAPTER 1

3C3-274A3-00-00

Unavailable

67

BOLT

90101-10033-00

Unavailable

68

NUT, S/L FLANGE

95602-10200-00

Unavailable

69

SPRING, TENSION

90506-40007-00

Unavailable

70

SPRING, TENSION

90506-23010-00

Unavailable

71

HOSE (L75)

90445-19003-00

Unavailable

72

BOLT

90101-10033-00

Unavailable

73

NUT, S/L FLANGE

95602-10200-00

Unavailable

74

BOLT, HEXAGON SOCKET HEAD

90110-10026-00

Unavailable
