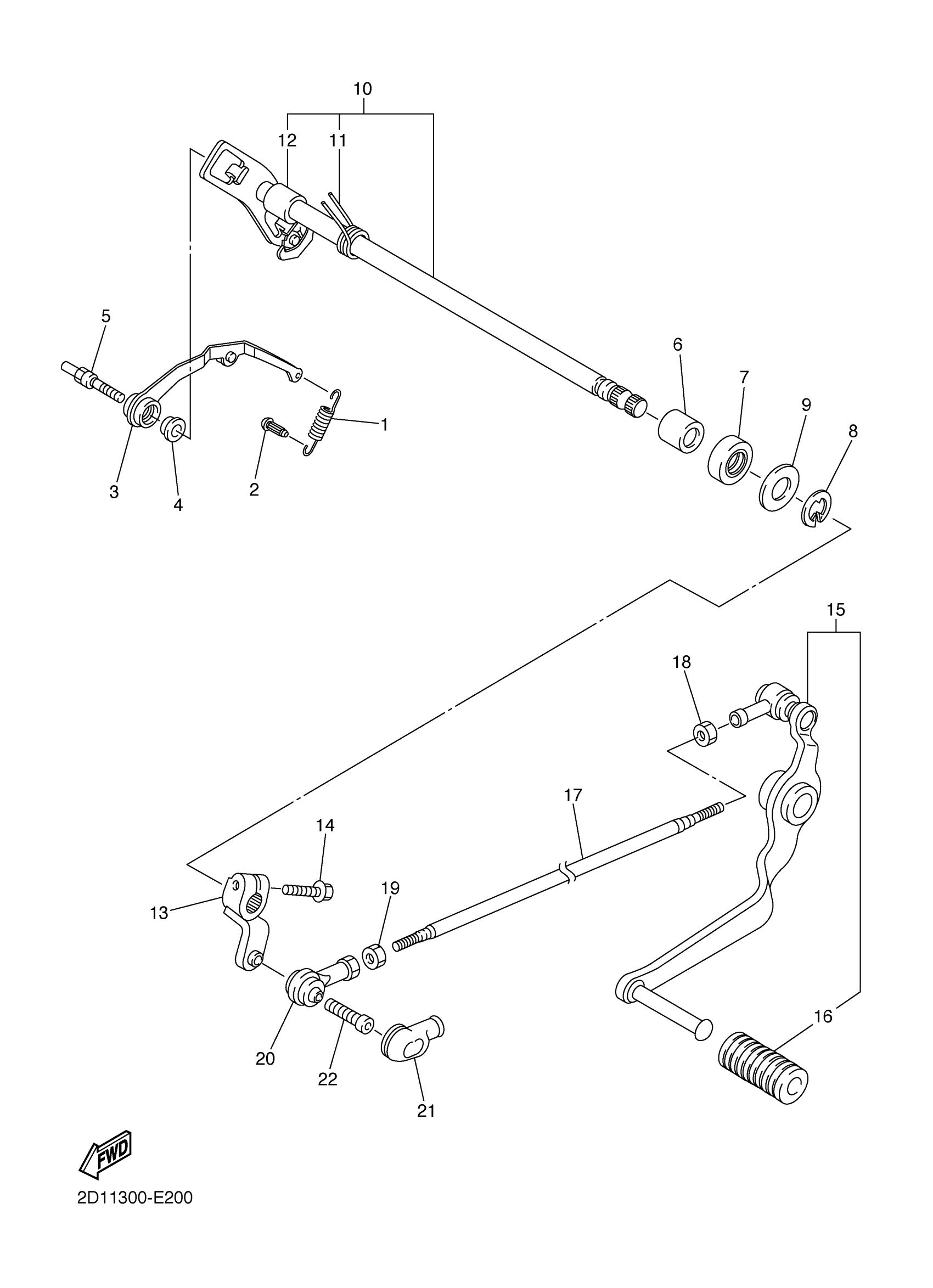

Yamaha FZS10AS (FZ1) 1CAC 2011 SHIFT SHAFT Diagram

#

Description
Price

1

HANGER, SPRING

5VY-18144-00-00

$7.99

2

HOOK, SPRING

132-16346-00-00

$9.99

3

STOPPER LEVER ASSY

5VY-18140-00-00

Unavailable

4

COLLAR(4KN)

90387-0804S-00

Unavailable

5

STOPPER, SCREW

39P-18127-00-00

Unavailable

6

BEARING

93317-11295-00

$46.99

7

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

8

CIRCLIP

99002-10600-00

$8.49

9

WASHER, PLATE (353)

90201-12575-00

$8.49

10

SHIFT SHAFT ASSY

2D1-18101-02-00

$177.99

11

SPRING, TORSION

90508-32141-00

Unavailable

12

COLLAR

90387-1211D-00

$15.99

13

ARM, SHIFT

39P-18112-00-00

$81.99

14

BOLT, FLANGE

95022-06020-00

$3.62

15

SHIFT PEDAL ASSY

2D1-18110-00-00

Unavailable

16

COVER, SHIFT PEDAL

5EB-18113-00-00

Unavailable

17

ROD, SHIFT

2D1-18115-00-00

Unavailable

18

NUT (2H9)

90170-06228-00

Unavailable

19

NUT(650)

95380-06700-00

Unavailable

20

JOINT, ROD 1

5VX-18116-00-00

Unavailable

21

COVER, DUST

5VX-18154-00-00

Unavailable

22

BOLT, BUTTON HEAD

92012-06020-00

Unavailable
