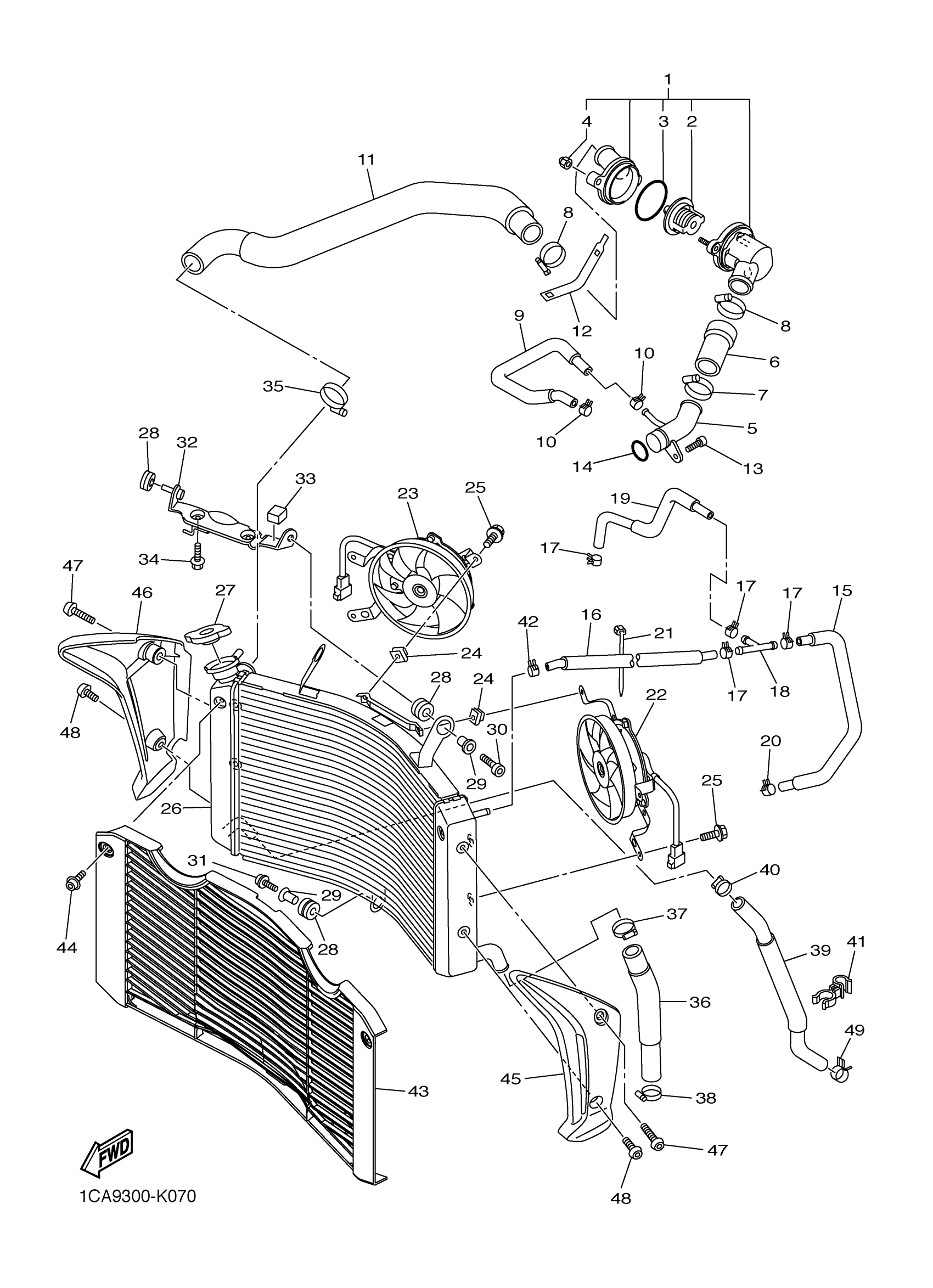

Yamaha FZS10AS (FZ1) 1CAC 2011 RADIATOR HOSE Diagram

#

Description
Price

1

THERMOSTAT ASSY

2D1-12410-01-00

$95.99

2

THERMOSTAT

5LP-12411-01-00

$38.99

3

O-RING (620)

93210-49046-00

$7.49

4

NUT, CROWN

90176-06014-00

$7.49

5

PIPE 5

5VY-12485-10-00

$68.99

6

HOSE 4

5VY-12579-00-00

$17.49

7

HOSE CLAMP ASSY

90450-35001-00

$5.60

8

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

9

HOSE,3

5VY-1243F-01-00

$38.99

10

CLIP(3BM)

90467-10135-00

$8.49

11

HOSE 3

2D1-12578-00-00

Unavailable

12

COVER 1

5GV-1246A-00-00

Unavailable

13

BOLT (33M)

91312-06014-00

$5.60

14

O-RING

93210-235A1-00

$7.49

15

HOSE 1

5VY-1243A-00-00

$28.99

16

HOSE, 4

2D1-1244G-00-00

Unavailable

17

CLIP(3BM)

90467-10135-00

$8.49

18

WAY 3(1AF)

90413-07023-00

Unavailable

19

HOSE 2

2D1-1243E-01-00

Unavailable

20

CLIP (3G0)

90467-10039-00

Unavailable

21

CLAMP(4FM)

90464-15195-00

Unavailable

22

BLOWER ASSY

2D1-12405-01-00

Unavailable

23

BLOWER ASSY

2D1-12405-11-00

Unavailable

24

PLATE

1AA-12535-00-00

Unavailable

25

BOLT, BLOWER HOLDING

2D1-12675-00-00

Unavailable

26

RADIATOR ASSY

2D1-12461-00-00

Unavailable

27

CAP, RADIATOR

4FL-12462-00-00

Unavailable

28

GROMMET (29L)

90480-15363-00

Unavailable

29

COLLAR 437216330000

90387-07391-00

Unavailable

30

BOLT

90109-06015-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD

90110-06232-00

Unavailable

32

STAY, RADIATOR

2D1-12464-00-00

Unavailable

33

DAMPER 2

2D1-2139U-00-00

Unavailable

34

BOLT, FLANGE

95817-06012-00

Unavailable

35

HOSE CLAMP ASSY

90450-35001-00

$5.60

36

HOSE 7

2D1-12551-00-00

Unavailable

37

HOSE CLAMP ASSY

90450-35001-00

$5.60

38

HOSE CLAMP ASSY

90450-32003-00

Unavailable

39

HOSE 6

39P-12589-00-00

Unavailable

40

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

41

CLAMP

90464-20011-00

Unavailable

42

CLIP(3BM)

90467-10135-00

$8.49

43

COVER, RADIATOR

2D1-12467-00-00

Unavailable

44

BOLT

90111-06031-00

Unavailable

45

RADIATOR COVER ASSY1

3C3-1240J-00-P0

Unavailable

46

RADIATOR COVER ASSY 2

3C3-1240K-00-P0

Unavailable

47

BOLT,HEX. SOCKET BUTTON

90111-06066-00

Unavailable

48

BOLT

90111-06031-00

Unavailable

49

CLIP

90467-200A0-00

Unavailable
