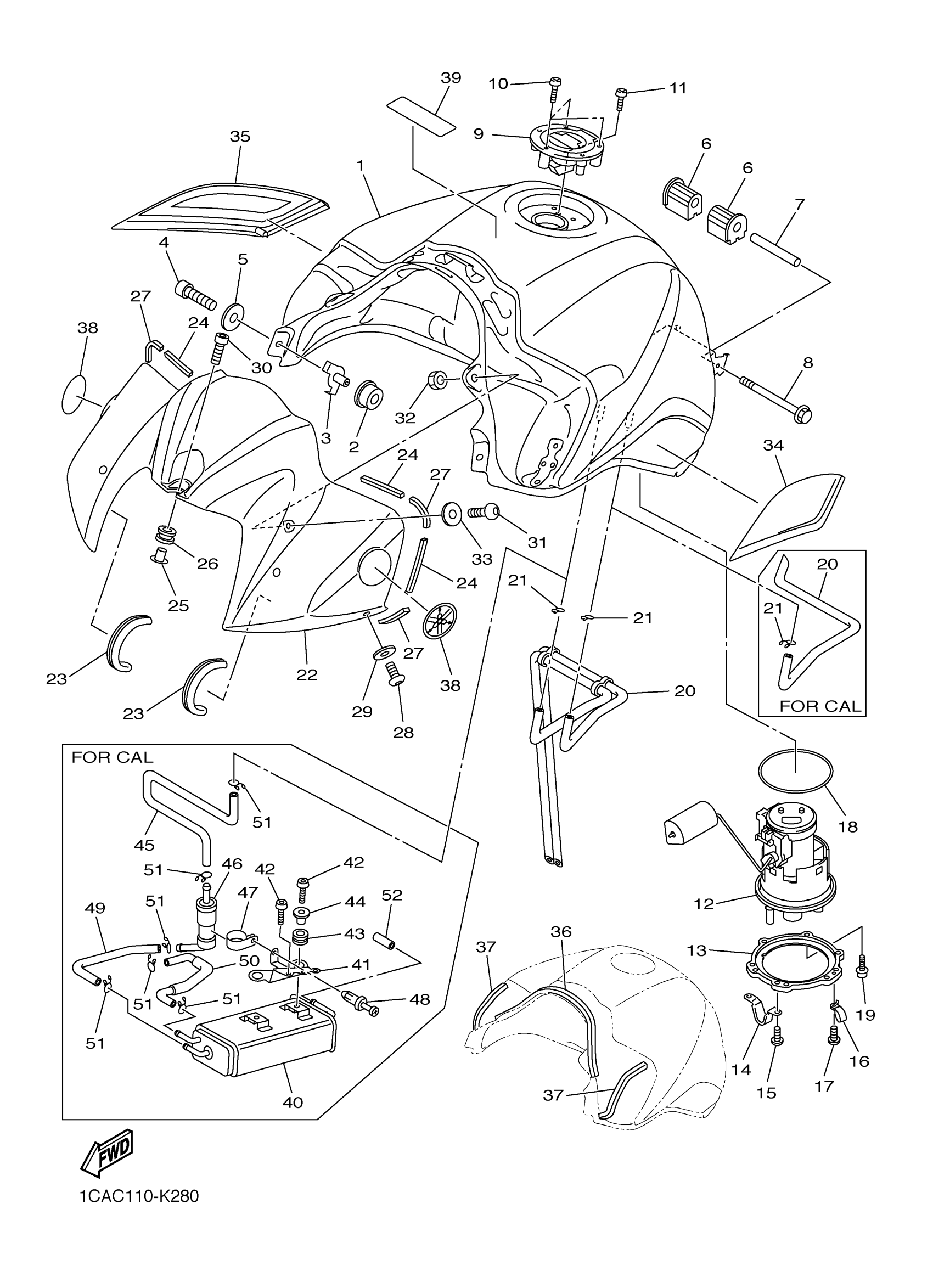

Yamaha FZS10AS (FZ1) 1CAC 2011 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

2D1-WK241-01-P1

Unavailable

2

DAMPER, LOCATING 1

5VY-24181-00-00

$7.99

3

COLLAR

2D1-2412G-00-00

$25.99

4

BOLT(3MA)

91312-06016-00

$5.60

5

WASHER, PLATE

90201-06086-00

$7.49

6

DAMPER, LOCATING 1

5VX-24181-00-00

$14.49

7

COLLAR(JF3)

90387-061W6-00

Unavailable

8

BOLT, SOCKET

91314-06090-00

$8.49

9

CAP ASSY

39P-24602-00-00

$257.99

10

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

11

BOLT

91312-05010-00

$5.60

12

FUEL PUMP COMP

2D1-13907-04-00

$559.99

13

BRACKET, FUEL PUMP

1EC-24491-00-00

$42.99

14

BRACKET, FUEL TANK 2

2D1-24192-00-00

Unavailable

15

SCREW, BIND

98902-05008-00

$1.70

16

CLAMP

90461-10010-00

Unavailable

17

SCREW, BIND

98902-05008-00

$1.70

18

O-RING

19B-24486-01-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

20

PIPE 7

3C3-24317-00-00

Unavailable

21

CLIP

90467-090A2-00

Unavailable

22

COVER, TOP

3C3-2171A-00-P1

Unavailable

23

MOLE 1

2D1-28345-01-00

Unavailable

24

DAMPER

4XV-2834E-00-00

Unavailable

25

COLLAR

90387-06222-00

Unavailable

26

GROMMET(3AA)

90480-12497-00

Unavailable

27

DAMPER, LOCATING 1

2D1-24181-00-00

Unavailable

28

BOLT,HEX. SOCKET BUTTON

90111-05019-00

Unavailable

29

WASHER, PLATE(MG5)

90202-05224-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable

31

BOLT,HEX. SOCKET BUTTON

90111-05024-00

Unavailable

32

NUT

90179-05003-00

Unavailable

33

. WASHER, PLATE

90202-05088-00

Unavailable

34

TANK SIDE COVER ASSY 1

2D1-24106-01-00

Unavailable

35

TANK SIDE COVER ASSY 2

2D1-24108-01-00

Unavailable

36

DAMPER, PLATE 5

2D1-2414P-00-00

Unavailable

37

DAMPER, PLATE 6

2D1-2414R-00-00

Unavailable

38

EMBLEM

5SL-2413B-00-00

Unavailable

39

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

40

CANISTER ASSY

3C3-24170-00-00

Unavailable

41

STAY

3C3-24216-00-00

Unavailable

42

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

43

GROMMET (462)

90480-13018-00

Unavailable

44

COLLAR(42G)

90387-062L2-00

Unavailable

45

PIPE 3

3C3-24313-00-00

Unavailable

46

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

47

CLAMP

90464-15014-00

Unavailable

48

RIVET

90269-05001-00

Unavailable

49

PIPE 4

3C3-24314-00-00

Unavailable

50

PIPE

3C3-1443J-01-00

Unavailable

51

CLIP

90467-090A2-00

Unavailable

52

HOSE (L70)

90445-112E0-00

Unavailable
