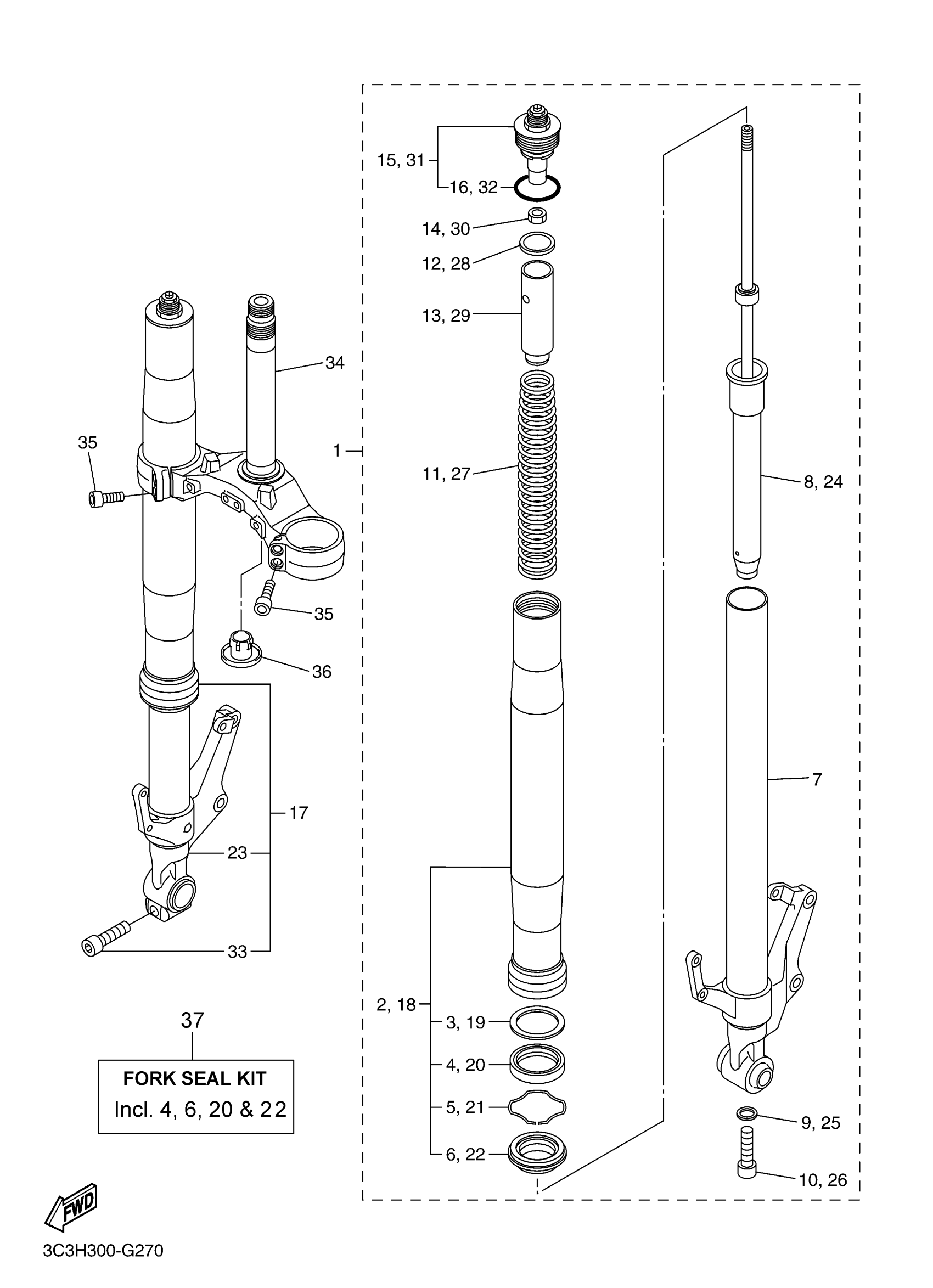

Yamaha FZS10AS (FZ1) 1CAC 2011 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

2D1-23102-03-00

$636.99

2

TUBE, OUTER (RIGHT)

2D1-23136-00-00

Unavailable

3

WASHER

4V4-23146-L0-00

$6.99

4

OIL SEAL

4PU-23145-01-00

$25.99

5

RING, SNAP

4V4-23153-L0-00

$9.99

6

SEAL, DUST

4PU-23144-00-00

$24.99

7

INNER TUBE COMP.1

2D1-23110-00-00

Unavailable

8

.. CYLINDER COMP, FRONT FORK

2D1-23170-11-00

Unavailable

9

GASKET

509-23158-L0-00

$16.49

10

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

11

. SPRING, FRONT FORK

2D1-23141-00-00

Unavailable

12

WASHER

5VY-12277-00-00

$12.99

13

SPACER

5VY-23118-00-00

Unavailable

14

NUT

3LC-23357-00-00

$6.99

15

BOLT, CAP

2D1-23111-00-00

Unavailable

16

O-RING

3XJ-23147-L0-00

Unavailable

17

FRONT FORK ASSY (R.H)

2D1-23103-03-00

Unavailable

18

TUBE, OUTER (RIGHT)

2D1-23136-00-00

Unavailable

19

WASHER

4V4-23146-L0-00

$6.99

20

OIL SEAL

4PU-23145-01-00

$25.99

21

RING, SNAP

4V4-23153-L0-00

$9.99

22

SEAL, DUST

4PU-23144-00-00

$24.99

23

INNER TUBE COMP.2

2D1-23120-00-00

Unavailable

24

CYLINDER COMP., FRONT FORK

2D1-23170-01-00

Unavailable

25

GASKET

509-23158-L0-00

$16.49

26

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

27

. SPRING, FRONT FORK

2D1-23141-00-00

Unavailable

28

WASHER

5VY-12277-00-00

$12.99

29

SPACER

5VY-23118-00-00

Unavailable

30

NUT

3LC-23357-00-00

$6.99

31

BOLT, CAP

2D1-23111-00-00

Unavailable

32

O-RING

3XJ-23147-L0-00

Unavailable

33

BOLT,SOCKET

91314-08040-00

Unavailable

34

UNDER BRACKET COMP.

2D1-23340-10-00

Unavailable

35

91312-08030

91312-08030-00

Unavailable

36

COVER, LOWER 1

4KM-23123-01-00

Unavailable

37

FORK SEAL KIT (TWO FORKS)

4PU-W003B-00-00

Unavailable
