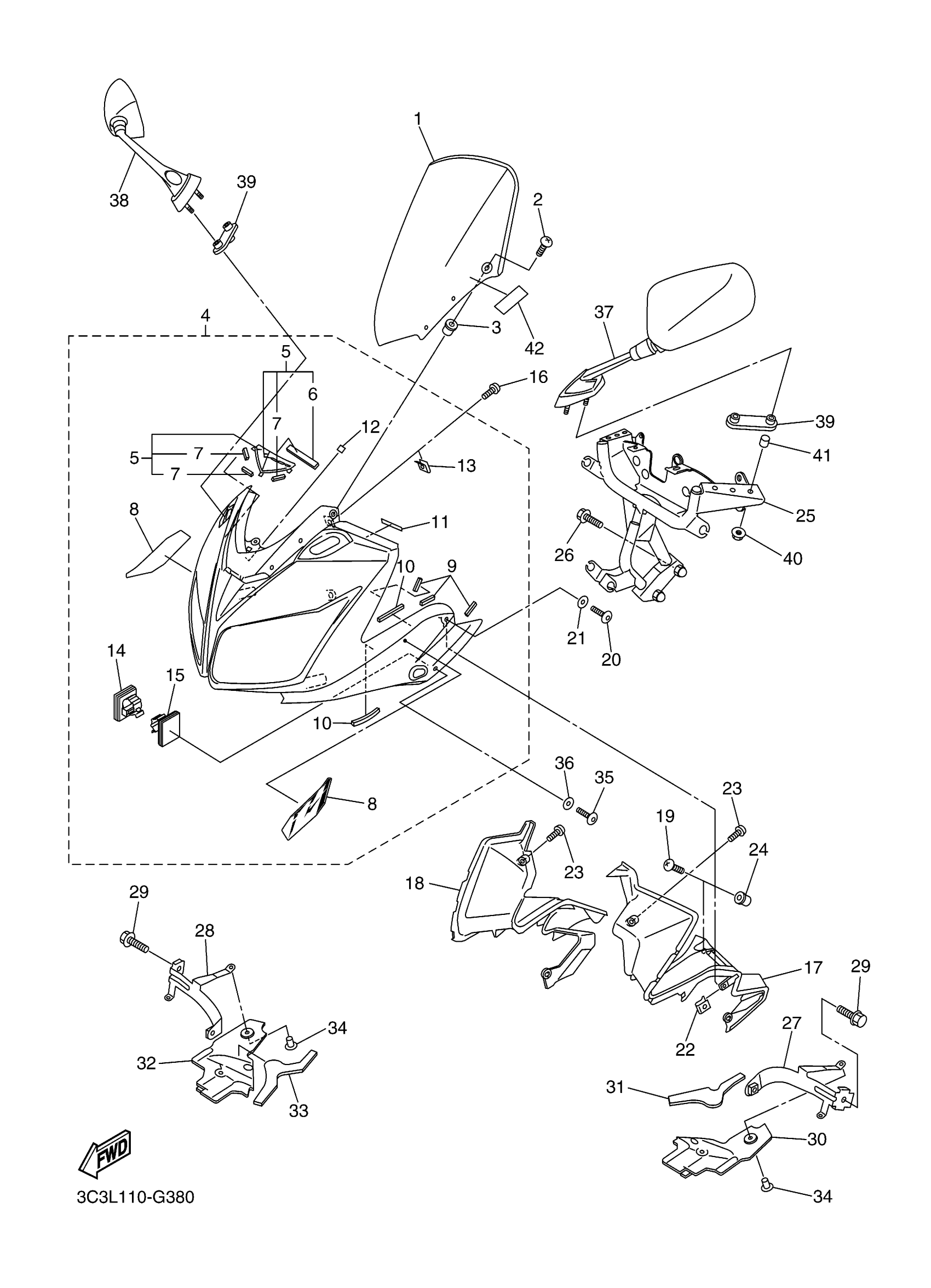

Yamaha FZS10AS (FZ1) 1CAC 2011 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

3C3-28381-10-00

Unavailable

2

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

3

NUT(1KT)

90179-05523-00

$8.49

4

BODY, FRONT UPPER 1 (SILVER 3)

3C3-Y283G-1A-P1

Unavailable

5

COVER ASSY

3C3-Y283W-10-00

Unavailable

6

DAMPER

3C3-28371-01-00

$2.34

7

DAMPER

3C3-28372-00-00

$6.99

8

EMBLEM 1

2D1-2163G-10-00

Unavailable

9

DAMPER 5

3C3-2837J-00-00

$2.34

10

DAMPER

4XV-2834E-00-00

$4.47

11

SEAL

3P6-28307-00-00

$2.34

12

SEAL

5JW-23844-00-00

$8.99

13

NUT, SPRING

90183-050A6-00

$8.49

14

CLAMP(1NL)

90464-62085-00

$7.49

15

CLAMP

90464-20021-00

$4.41

16

SCREW, BINDING

90154-05007-00

Unavailable

17

PANEL, INNER 1

3C3-2836K-00-00

Unavailable

18

PANEL, INNER 2

3C3-2836L-00-00

Unavailable

19

SCREW, BINDING

90154-05007-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

21

WASHER, PLATE

90202-06170-00

Unavailable

22

NUT, SPRING(4ES)

90183-06069-00

Unavailable

23

SCREW, BINDING

90154-05007-00

Unavailable

24

NUT(1KT)

90179-05523-00

$8.49

25

STAY 1

3C3-28356-00-00

Unavailable

26

BOLT, FLANGE

95822-08035-00

Unavailable

27

BRACKET 1

3C3-2836A-00-00

Unavailable

28

BRACKET 2

3C3-2836E-00-00

Unavailable

29

BOLT, FLANGE

95812-06010-00

Unavailable

30

PANEL 1

3C3-2835U-00-00

Unavailable

31

DAMPER 1

3C3-2834E-00-00

Unavailable

32

PANEL 2

3C3-2835V-00-00

Unavailable

33

DAMPER

3C3-2834F-00-00

Unavailable

34

RIVET

90269-06008-00

Unavailable

35

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

36

WASHER, PLATE

90202-06170-00

Unavailable

37

REAR VIEW MIRROR ASSY (LEFT)

3C3-26280-11-00

Unavailable

38

REAR VIEW MIRROR ASSY (RIGHT)

3C3-26290-11-00

Unavailable

39

PLATE, MIRROR FITTING 1

3C3-26298-00-00

Unavailable

40

NUT, FLANGE

95702-06500-00

Unavailable

41

COLLAR(J45)

90387-064T3-00

Unavailable

42

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable
