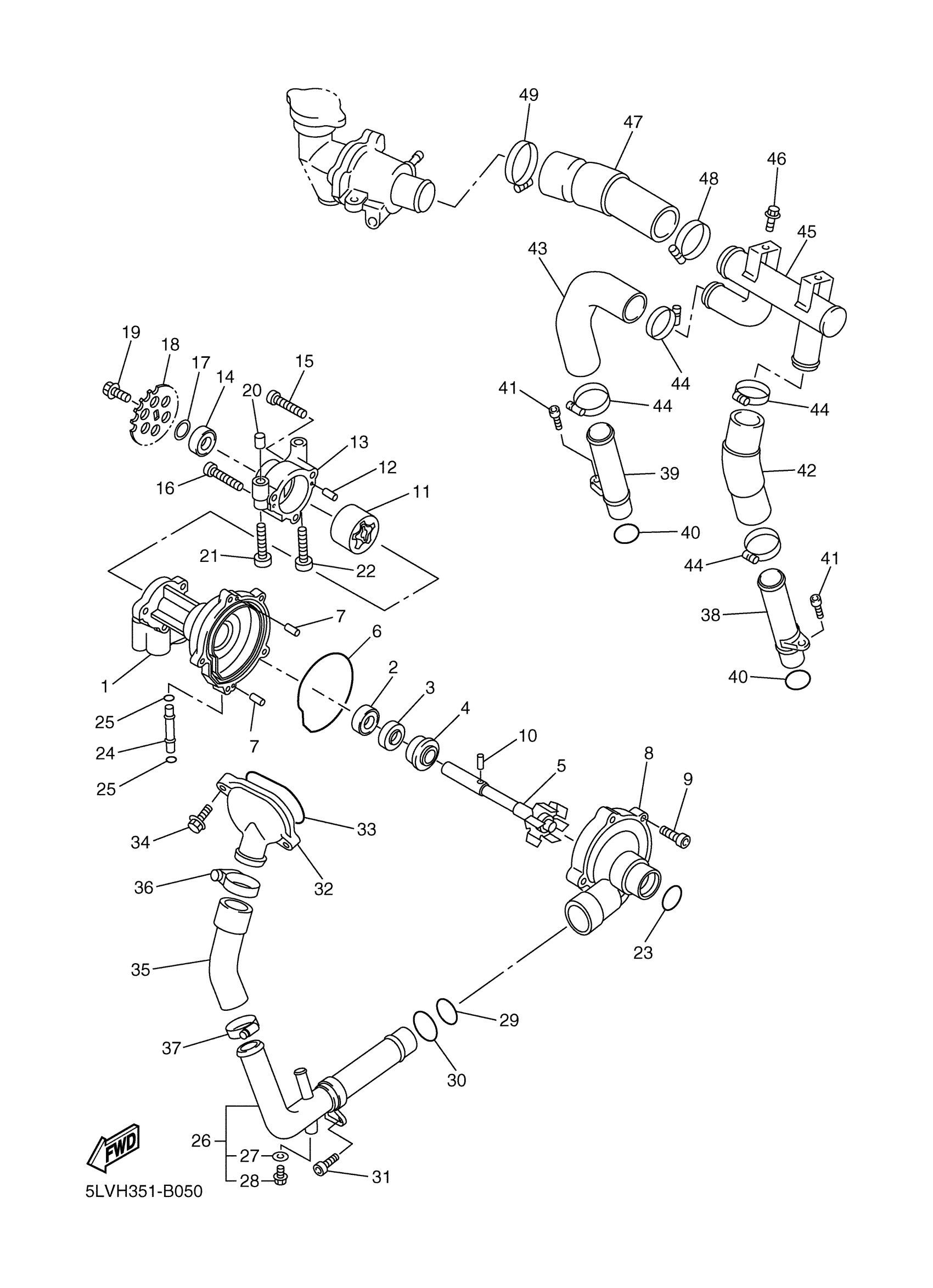

Yamaha FZS1000SPRC (FZ1 CA) 5LVT 2003 WATER PUMP Diagram
#
1
HOUSING, WATER PUMP
4XV-12421-00-00
Unavailable
5
IMPELLER SHAFT ASSY
4XV-12450-00-00
Unavailable
8
COVER, HOUSING
4XV-12422-00-00
Unavailable
13
HOUSING, ROTOR
4XV-13336-00-00
Unavailable
15
BOLT,SOCKET
91317-06035-00
Unavailable
16
BOLT,SOCKET
91317-06040-00
Unavailable
17
WASHER, PLATE (525)
90201-12541-00
Unavailable
18
SPROCKET, DRIVEN
4XV-13355-00-00
Unavailable
19
BOLT, FLANGE
95817-06014-00
Unavailable
20
PIN, DOWEL
91808-30031-00
Unavailable
21
BOLT, HEXAGON SOCKET BUTTON
90111-06142-00
Unavailable
22
BOLT,SOCKET
91317-06045-00
Unavailable
23
O-RING
93210-357A2-00
Unavailable
24
PIPE 5
4XV-12485-00-00
Unavailable
25
O-RING(26H)
93210-06667-00
Unavailable
26
PIPE 1
5LV-12481-01-00
Unavailable
27
GASKET 256113960000
90430-06014-00
Unavailable
28
SCREW
90153-06029-00
Unavailable
29
O-RING
93210-235A1-00
Unavailable
30
O-RING(1KT)
93210-27778-00
Unavailable
31
BOLT,SOCKET
91317-06012-00
Unavailable
32
JOINT 1
4XV-12469-00-00
Unavailable
33
O-RING(52H)
93210-47675-00
Unavailable
34
BOLT, FLANGE(3DM)
95024-06020-00
Unavailable
35
HOSE 1
4XV-12576-00-00
Unavailable
36
HOSE CLAMP ASSY(3GM)
90450-38040-00
Unavailable
37
HOSE CLAMP ASSY
90450-35001-00
Unavailable
38
PIPE 2
5LV-12482-00-00
Unavailable
39
PIPE 3
5LV-12483-00-00
Unavailable
40
O-RING (716)
93210-18417-00
Unavailable
41
BOLT,SOCKET
91317-06016-00
Unavailable
42
HOSE 2
5LV-12577-00-00
Unavailable
43
HOSE 3
5LV-12578-00-00
Unavailable
44
HOSE CLAMP ASSY
90450-28001-00
Unavailable
45
PIPE 5
5LV-12485-00-00
Unavailable
46
BOLT, FLANGE
95817-06010-00
Unavailable
47
HOSE 4
5LV-12579-00-00
Unavailable
48
HOSE CLAMP ASSY
90450-35001-00
Unavailable
49
HOSE CLAMP ASSY(3GM)
90450-38040-00
Unavailable
