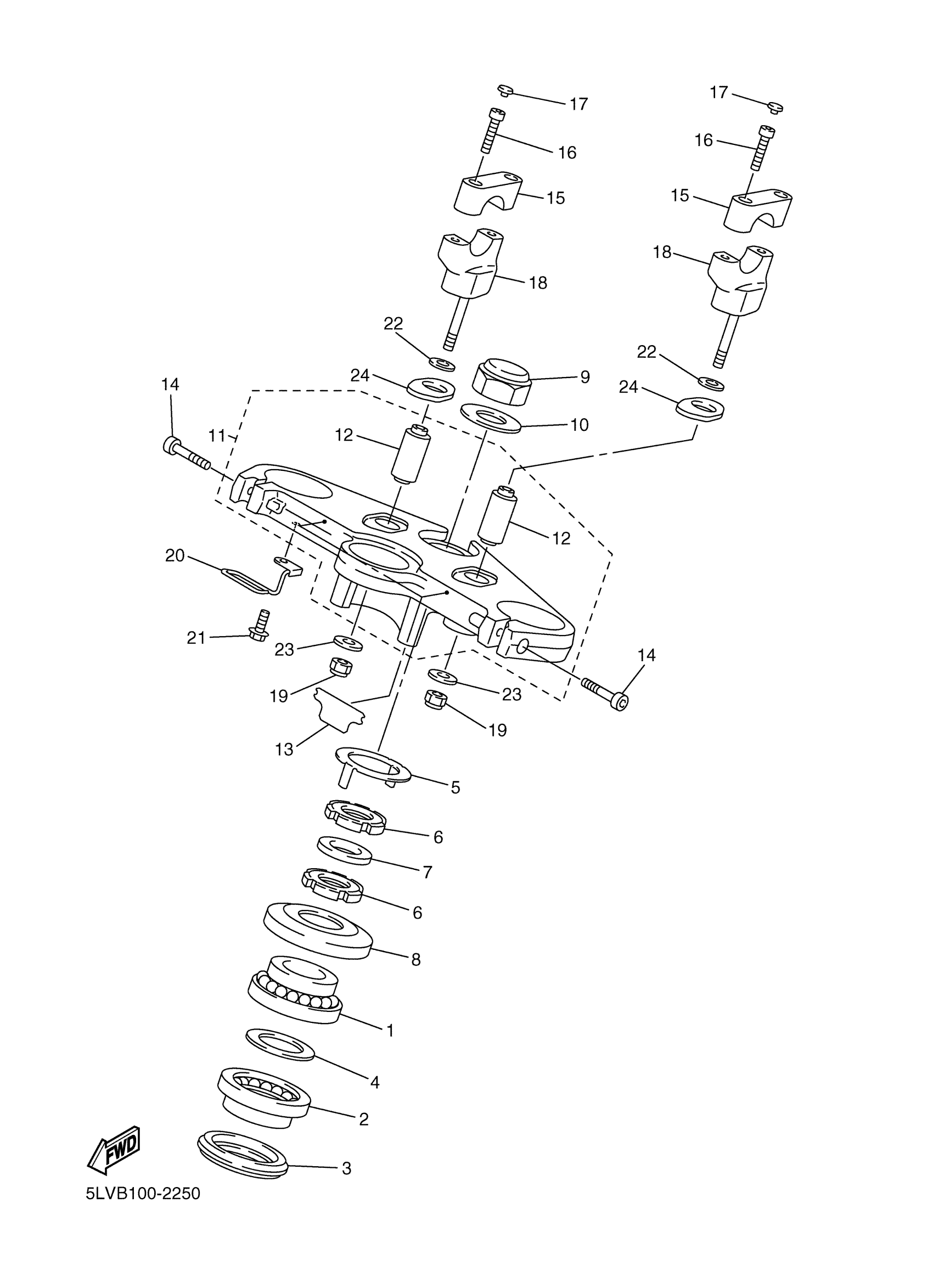

Yamaha FZS1000SPRC (FZ1 CA) 5LVT 2003 STEERING Diagram

#

Description
Price

1

BEARING(3FV)

93399-99931-00

$57.99

2

BEARING(3FV)

93399-99932-00

$63.99

3

SEAL, STEERING

3FV-23462-00-00

$24.99

4

WASHER, PLATE(3FV)

90202-24190-00

$9.49

5

WASHER, SPECIAL

26H-23418-01-00

$14.49

6

NUT

90179-25004-00

$24.99

7

WASHER, PLATE (26H)

90202-26142-00

$9.49

8

COVER, BALL RACE 2

5BP-F3416-10-00

$3.40

9

NUT, CROWN(4FM)

90176-22081-00

$34.99

10

WASHER, PLATE

90201-22018-00

$5.60

11

CROWN, HANDLE

5LV-W2341-00-00

Unavailable

12

HOLDER, DAMPER

5A8-23434-01-00

Unavailable

13

PROTECTOR

5LV-23472-00-00

Unavailable

14

BOLT,SOCKET

91314-08030-00

$2.34

15

HOLDER, HANDLE UPPER

4H7-23441-01-98

$40.99

16

BOLT, SOCKET

91317-08030-00

Unavailable

17

CAP, BOLT (371,447)

341-23469-00-00

Unavailable

18

HOLDER, HANDLE LOWER

5LV-23442-01-00

Unavailable

19

NUT, U

95617-10100-00

Unavailable

20

HOLDER, CABLE

5LV-23317-01-00

Unavailable

21

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

22

WASHER, PLAIN(3BM)

92907-10200-00

Unavailable

23

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

24

DAMPER

5LV-23445-00-00

Unavailable
