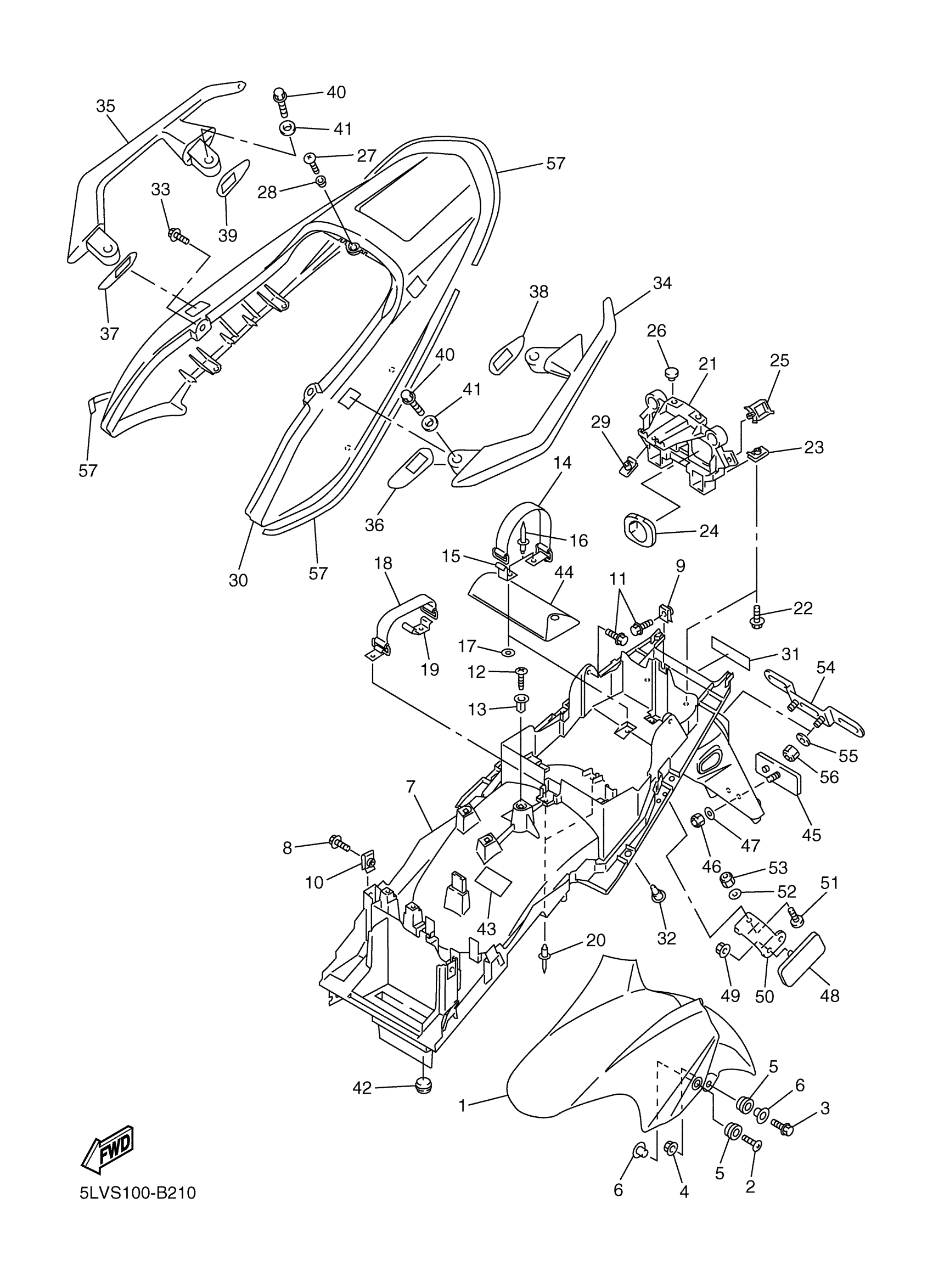

Yamaha FZS1000SPRC (FZ1 CA) 5LVT 2003 FENDER Diagram

#

Description
Price

1

FENDER, FRONT (YAMAHA BLACK)

5LV-21511-00-33

Unavailable

2

SCREW, BINDING(3XV)

90154-06061-00

$8.49

3

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

4

NUT (21W)

90179-06403-00

Unavailable

5

GROMMET(53Y)

90480-12072-00

$8.49

6

COLLAR

90387-06159-00

$8.49

7

FENDER, REAR

5LV-21611-00-00

Unavailable

8

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

9

NUT, SPRING(4ES)

90183-06069-00

Unavailable

10

NUT, SPRING (26H)

90183-06023-00

$9.49

11

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

12

SCREW, TAPPING

97707-60020-00

Unavailable

13

PLUG(4BP)

90338-08226-00

$2.17

14

BAND

4HM-21647-00-00

Unavailable

15

HOOK

4HM-2162A-00-00

$3.80

16

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

17

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

18

BAND, BATTERY

4HM-82131-00-00

Unavailable

19

HOOK

5LV-2162A-00-00

Unavailable

20

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

21

BRACKET, TAILLIGHT

5LV-2117E-00-00

Unavailable

22

BOLT, WITH WASHER (10V)

90119-06063-00

Unavailable

23

NUT, SPRING(4ES)

90183-06069-00

Unavailable

24

COVER, TAILLIGHT

5JJ-2172X-00-00

Unavailable

25

CLAMP (1J7)

90464-16025-00

Unavailable

26

DAMPER, SEAT

3L7-24724-00-00

Unavailable

27

SCREW, ROUND HEAD(4HD)

90150-05039-00

Unavailable

28

COLLAR

90387-06008-00

Unavailable

29

NUT, SPRING(3GM)

90183-05061-00

Unavailable

30

COVER, REAR FENDER (YAMAHA BLACK) (LIGHT REDDISH YELLOW SOLID 1)

5LV-Y2165-10-0X

Unavailable

31

EMBLEM, YAMAHA

99246-00080-00

Unavailable

32

RIVET(4PH)

90269-07077-00

Unavailable

33

BOLT(3KJ)

90109-063F1-00

Unavailable

34

ASSIST, GRIP

5LV-2474A-00-33

Unavailable

35

ASSIST,GRIP 2 (YAMAHA BLACK)

5LV-2474W-00-33

Unavailable

36

DAMPER, SEAT

5LV-24723-00-00

Unavailable

37

DAMPER, SEAT

5LV-24724-00-00

Unavailable

38

DAMPER, SEAT

5LV-24723-10-00

Unavailable

39

DAMPER, SEAT

5LV-24724-10-00

Unavailable

40

BOLT, FLANGE(4MY)

95027-08025-00

Unavailable

41

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

42

GROMMET 285216390000

90480-14100-00

Unavailable

43

PLATE, EPA 2 (CALIFORNIA)

5LV-2179R-20-00

Unavailable

43

PLATE, EPA 1 (NON CALIFORNIA)

5LV-2179V-20-00

Unavailable

44

TOOL KIT

5LV-28100-00-00

Unavailable

45

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

46

NUT, S/L FLANGE

95607-05200-00

Unavailable

47

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

48

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

49

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

50

BRACKET, REAR STAY

4XV-21688-00-00

Unavailable

51

SCREW(3HE)

90149-04278-00

Unavailable

52

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

53

NUT, U (7LY)

95617-04100-00

Unavailable

54

BRACKET, LICENSE

5JJ-84751-00-00

Unavailable

55

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

56

NUT, SELF-LOCKING

95617-06100-00

Unavailable

57

GRAPHIC

5LV-21660-00-00

Unavailable
