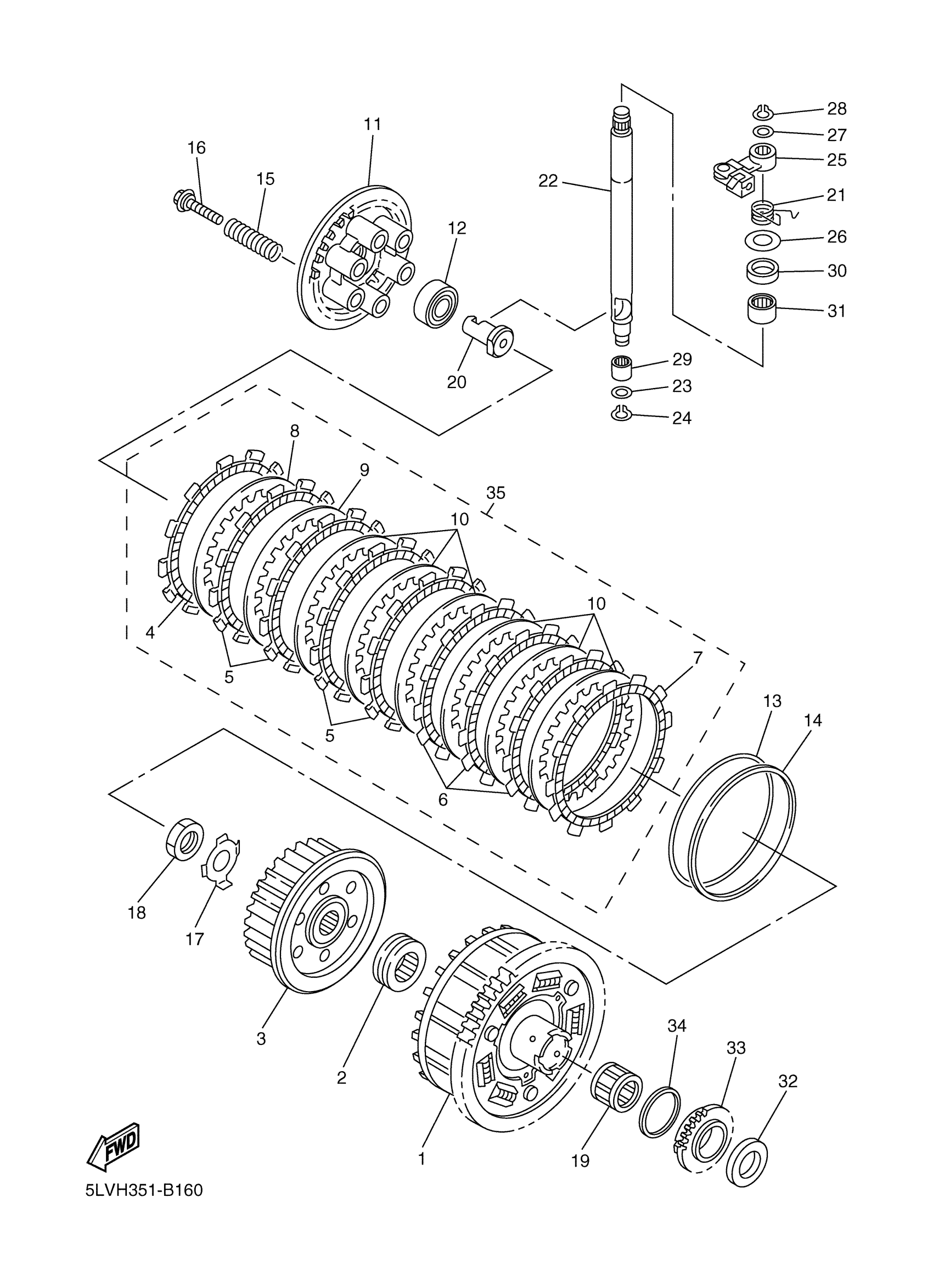

Yamaha FZS1000SPRC (FZ1 CA) 5LVT 2003 CLUTCH Diagram
#
1
PRIMARY DRIVEN GEAR COMP.
5LV-16150-00-00
Unavailable
2
PLATE, THRUST 1
5LV-16154-00-00
Unavailable
3
BOSS, CLUTCH
5LV-16371-00-00
Unavailable
4
PLATE, FRICTION
4FN-16321-00-00
Unavailable
6
PLATE, FRICTION
5LV-16321-10-00
Unavailable
11
PLATE, PRESSURE 1
5EB-16351-01-00
Unavailable
13
SPRING, CLUTCH BOSS
5LV-16383-00-00
Unavailable
14
PLATE, SEAT
5LV-16384-00-00
Unavailable
15
SPRING, COMPRESSION(3GM)
90501-230E4-00
Unavailable
16
SCREW, WITH WASHER
90159-06006-00
Unavailable
17
WASHER, LOCK (34L)
90215-20231-00
Unavailable
18
NUT (34L)
90170-20327-00
Unavailable
19
BEARING
93310-228S5-00
Unavailable
20
ROD, PUSH 1
5LV-16356-00-00
Unavailable
21
SPRING, TORSION
90508-13007-00
Unavailable
22
AXLE, PUSH LEVER
5LV-16382-00-00
Unavailable
23
WASHER(6TA)
92907-08600-00
Unavailable
24
CIRCLIP
99080-07600-00
Unavailable
25
PUSH LEVER ASSY
5LV-16340-00-00
Unavailable
26
WASHER (692)
90201-12M34-00
Unavailable
27
WASHER, PLAIN(735)
90201-10119-00
Unavailable
28
CIRCLIP(10W)
99009-10400-00
Unavailable
29
BEARING
93317-11096-00
Unavailable
30
SEAL, OIL (30X)
93102-12321-00
Unavailable
31
BEARING
93317-11287-00
Unavailable
32
PLATE, THRUST 1
4XV-16154-00-00
Unavailable
33
SPROCKET, DRIVE
5PW-13354-01-00
Unavailable
34
WASHER, PLATE
90201-43008-00
Unavailable
35
PLATE ASSY
5LV-16309-09-00
Unavailable
