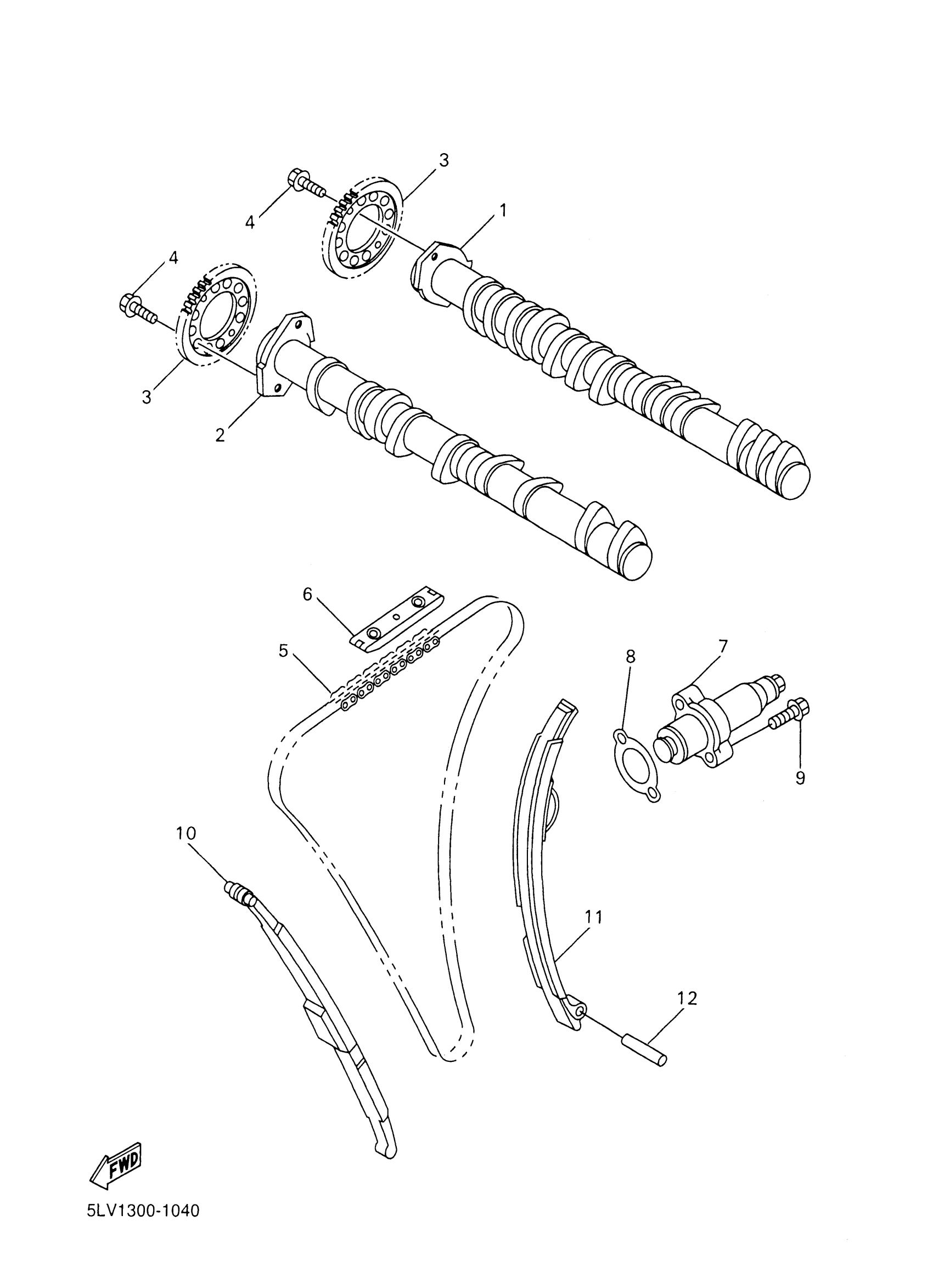

Yamaha FZS1000SPRC (FZ1 CA) 5LVT 2003 CAMSHAFT CHAIN Diagram

CAMSHAFT 1

5JJ-12171-00-00

Unavailable

CAMSHAFT 2

5JJ-12181-00-00

Unavailable

SPROCKET, CAM CHAIN

4XV-12176-00-00

Unavailable

BOLT, FLANGE

90105-07004-00

$5.60

CHAIN

94591-49130-00

$42.99

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

TENSIONER ASSY, CAM CHAIN

5LV-12210-00-00

Unavailable

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

DAMPER, CHAIN 1

4XV-12251-01-00

$60.99

DAMPER, CHAIN 2

4XV-12252-01-00

Unavailable

PIN, DOWEL (8V8)

93607-44190-00

$16.99
