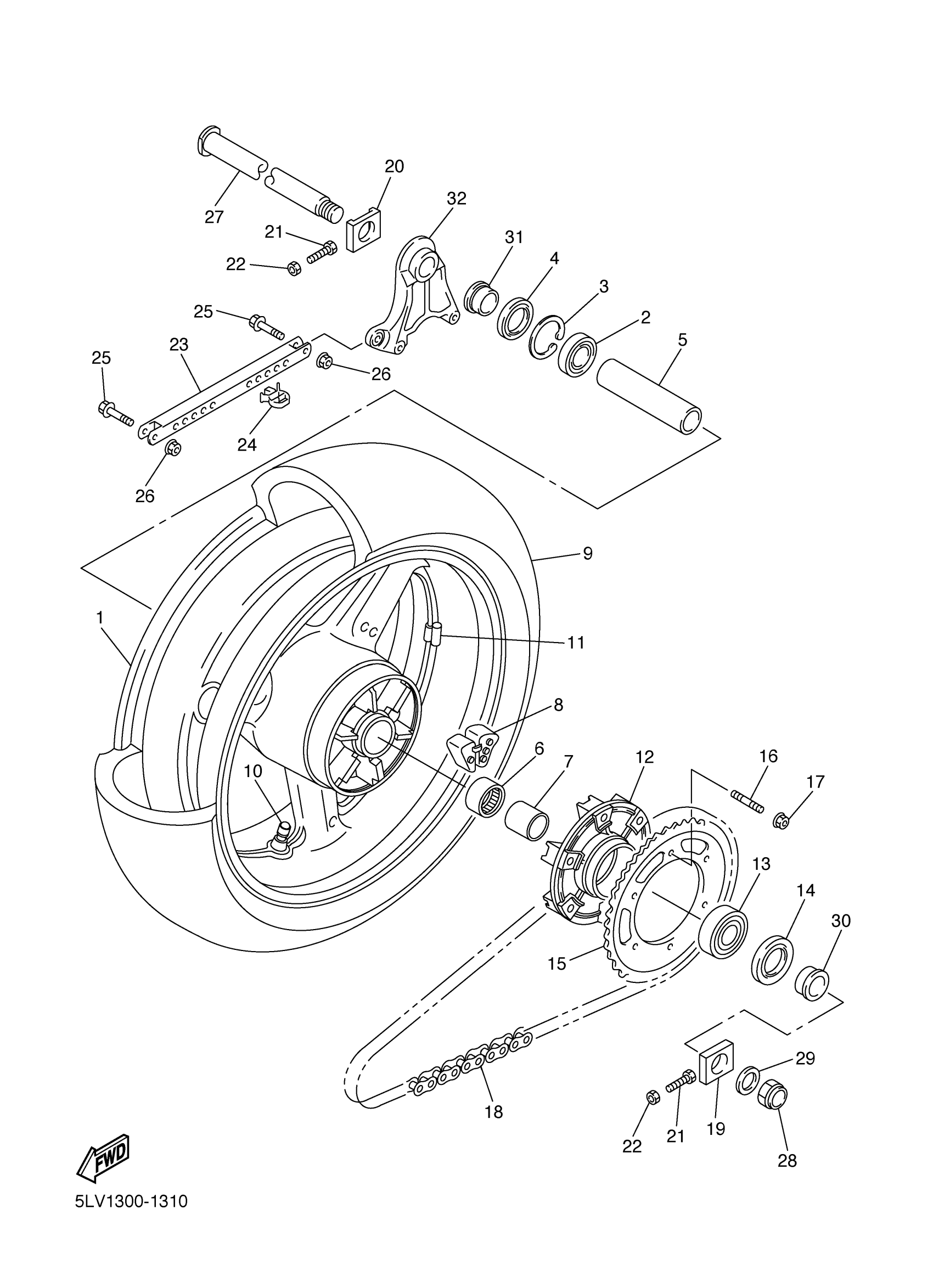

Yamaha FZS1000RC (FZ1 CA) 5LVL 2003 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5LV-25338-00-98

Unavailable

2

BEARING

93306-07806-00

$63.99

3

CIRCLIP(26H)

99009-52500-00

$12.49

4

OIL SEAL

93106-35042-00

$15.99

5

SPACER, BEARING

5LV-25317-00-00

Unavailable

6

BEARING

93317-43580-00

$73.99

7

COLLAR, WHEEL

4XV-25383-00-00

Unavailable

8

DAMPER

5LV-25364-00-00

$19.99

9

TIRE(180/55ZR17M/C 73W BT020R)

94118-17041-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

5JJ-25366-00-00

$465.99

13

BEARING(3JN)

93306-20531-00

$50.99

14

OIL SEAL

93106-40013-00

Unavailable

15

SPROCKET, DRIVEN (44T)

5LV-25444-00-00

Unavailable

16

BOLT, STUD(1TX)

90116-10485-00

Unavailable

17

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

18

CHAIN

94582-05116-00

Unavailable

19

PULLER, CHAIN 1

4XV-25388-00-00

Unavailable

20

PULLER, CHAIN 2

4XV-25389-00-00

Unavailable

21

BOLT(3GM)

90101-08766-00

Unavailable

22

NUT(6TA)

95337-08600-00

Unavailable

23

BAR, TENSION

5LV-25371-00-00

Unavailable

24

CLAMP(4NX)

90464-23239-00

Unavailable

25

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable

26

NUT, SELF-LOCKING

90185-08169-00

Unavailable

27

AXLE, WHEEL

4FM-25381-20-00

Unavailable

28

NUT, SELF-LOCKING

90185-24007-00

Unavailable

29

WASHER, PLATE

90201-24013-00

Unavailable

30

COLLAR

90387-28019-00

Unavailable

31

COLLAR, WHEEL

5LV-25383-00-00

Unavailable

32

BRACKET, CALIPER

5LV-25819-00-00

Unavailable
