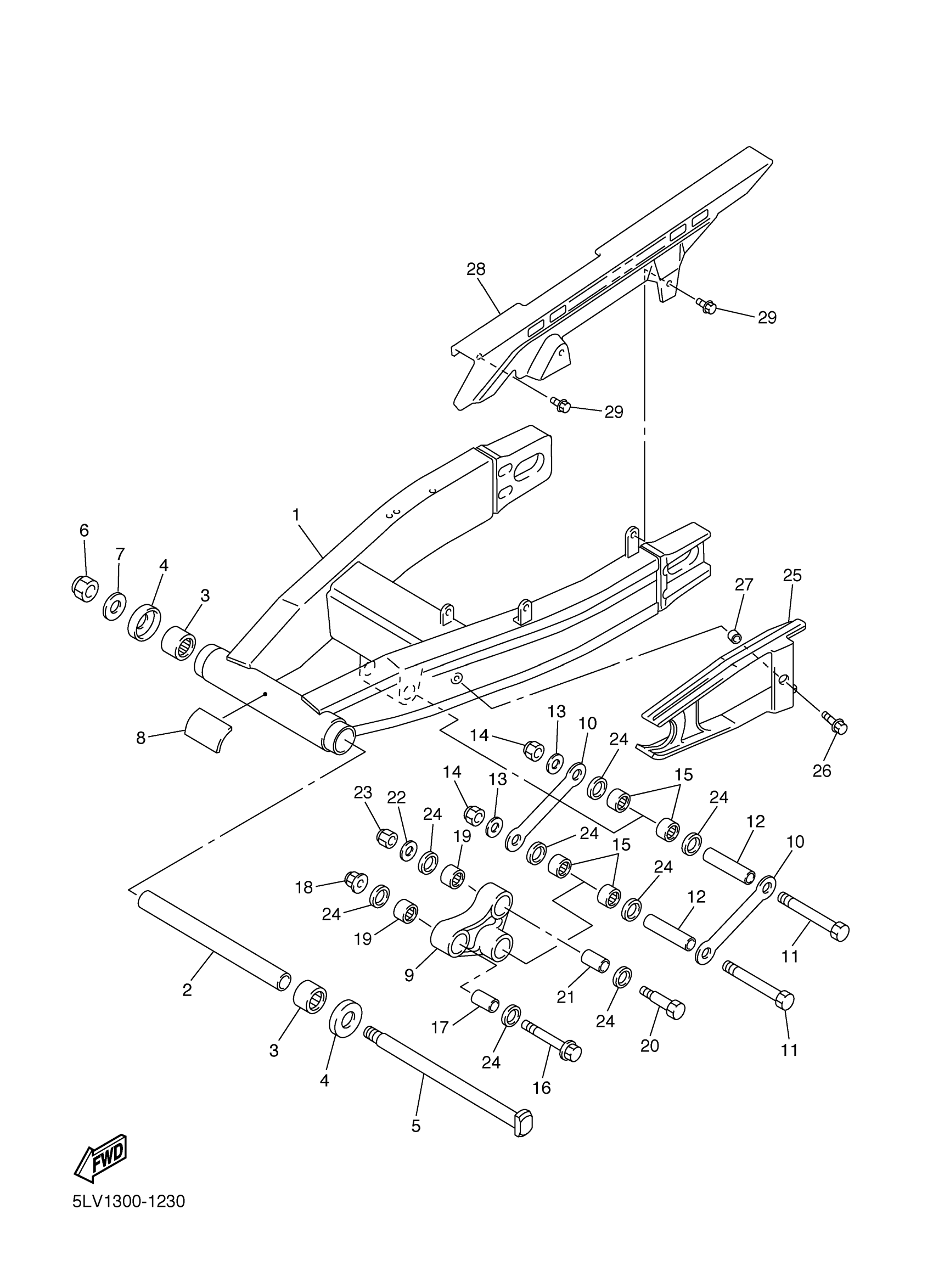

Yamaha FZS1000PC (FZ1 CA) 5LVC 2002 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

5LV-22110-00-00

Unavailable

2

BUSH

3FV-22184-00-00

Unavailable

3

BRG,CYL-CAL ROLLER 46.8G NT

93315-42523-00

$30.99

4

COVER, THRUST 1

5JJ-22128-00-00

$35.99

5

SHAFT, PIVOT

3GM-22141-01-00

Unavailable

6

NUT, SELF-LOCKING

90185-18009-00

$18.99

7

WASHER, PLATE (5K7)

90201-18264-00

$8.49

8

SEAL 1

5LV-21732-00-00

Unavailable

9

ARM, RELAY

5LV-2217A-00-00

Unavailable

10

ARM 1

5LV-2217M-00-00

Unavailable

11

BOLT(4BH)

90101-12749-00

Unavailable

12

COLLAR(4BH)

90387-126Y1-00

$22.99

13

WASHER(6TA)

92907-12600-00

$1.71

14

NUT, U (4PM)

95617-12100-00

$4.16

15

BEARING, CYLINDRICAL(39K)

93317-21746-00

$34.99

16

BOLT,FLANGE

95817-10065-00

Unavailable

17

COLLAR(1WG)

90387-102R4-00

Unavailable

18

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

19

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

20

BOLT(1WG)

90101-10659-00

Unavailable

21

COLLAR(3TJ)

90387-127W0-00

Unavailable

22

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

23

NUT, U

95617-10100-00

Unavailable

24

OIL SEAL

93109-17071-00

Unavailable

25

SEAL, GUARD

5LV-22151-01-00

Unavailable

26

BOLT, WITH WASHER(81H)

90119-06118-00

Unavailable

27

COLLAR

90387-06106-00

Unavailable

28

CASE, CHAIN

5LV-22311-00-00

Unavailable

29

BOLT, HEXAGON

97017-06012-00

Unavailable
