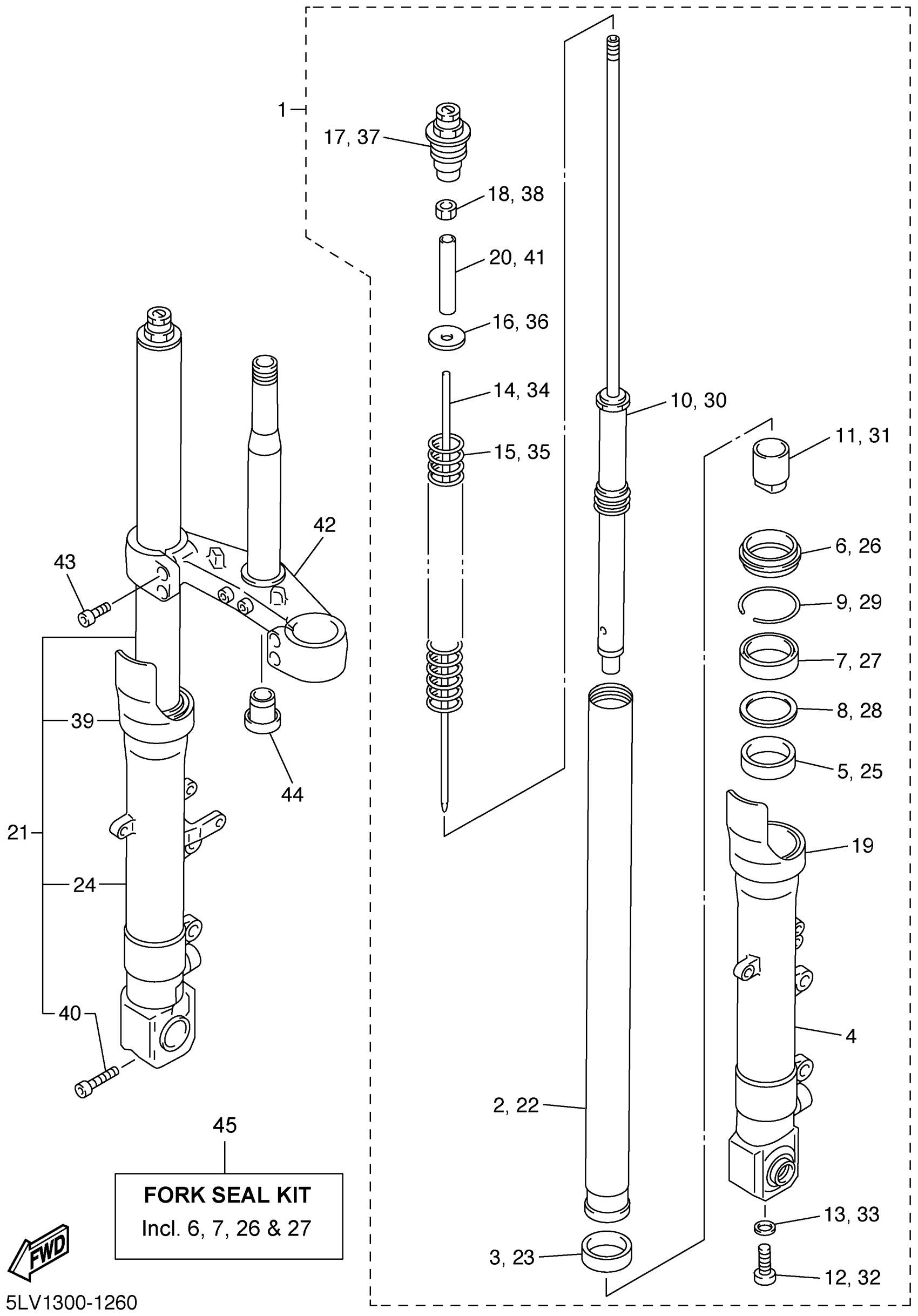

Yamaha FZS1000PC (FZ1 CA) 5LVC 2002 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
5LV-23102-00-00
Unavailable
2
. INNER TUBE COMP 1
5LV-23110-00-00
Unavailable
4
. OUTER TUBE COMP (LH)
5LV-23106-00-00
Unavailable
7
OIL SEAL
5VX-23145-00-00
Unavailable
7
OIL SEAL
5VX-23145-00-00
Unavailable
8
GUIDE, COVER UPPER
4TX-23115-00-00
Unavailable
10
. CYLINDER COMP, FRONT FORK
5LV-23170-00-00
Unavailable
14
. PLUNGER
5LV-2318Y-00-00
Unavailable
15
SPRING, FRONT FORK
5LV-23141-00-00
Unavailable
16
WASHER, PLATE (856)
90201-10321-00
Unavailable
17
. BOLT, CAP
5LV-23111-00-00
Unavailable
18
NUT(6TD)
95337-10600-00
Unavailable
19
COVER
4TX-2331G-00-00
Unavailable
20
. SPACER
5LV-23118-00-00
Unavailable
21
FRONT FORK ASSY (R.H)
5LV-23103-00-00
Unavailable
22
. INNER TUBE COMP 1
5LV-23110-00-00
Unavailable
24
OUTER TUBE COMP. (R.H)
5LV-23107-00-00
Unavailable
27
OIL SEAL
5VX-23145-00-00
Unavailable
27
OIL SEAL
5VX-23145-00-00
Unavailable
28
GUIDE, COVER UPPER
4TX-23115-00-00
Unavailable
30
. CYLINDER COMP, FRONT FORK
5LV-23170-00-00
Unavailable
34
. PLUNGER
5LV-2318Y-00-00
Unavailable
35
SPRING, FRONT FORK
5LV-23141-00-00
Unavailable
36
WASHER, PLATE (856)
90201-10321-00
Unavailable
37
. BOLT, CAP
5LV-23111-00-00
Unavailable
38
NUT(6TD)
95337-10600-00
Unavailable
39
COVER
4TX-2331G-00-00
Unavailable
40
BOLT,SOCKET
91314-08045-00
Unavailable
41
. SPACER
5LV-23118-00-00
Unavailable
42
UNDER BRACKET COMP.
5LV-23340-00-00
Unavailable
43
BOLT,SOCKET
91314-08025-00
Unavailable
44
COVER, LOWER 1
4KM-23123-01-00
Unavailable
45
FORK SEAL KIT (TWO FORKS)
5VX-W003B-00-00
Unavailable
