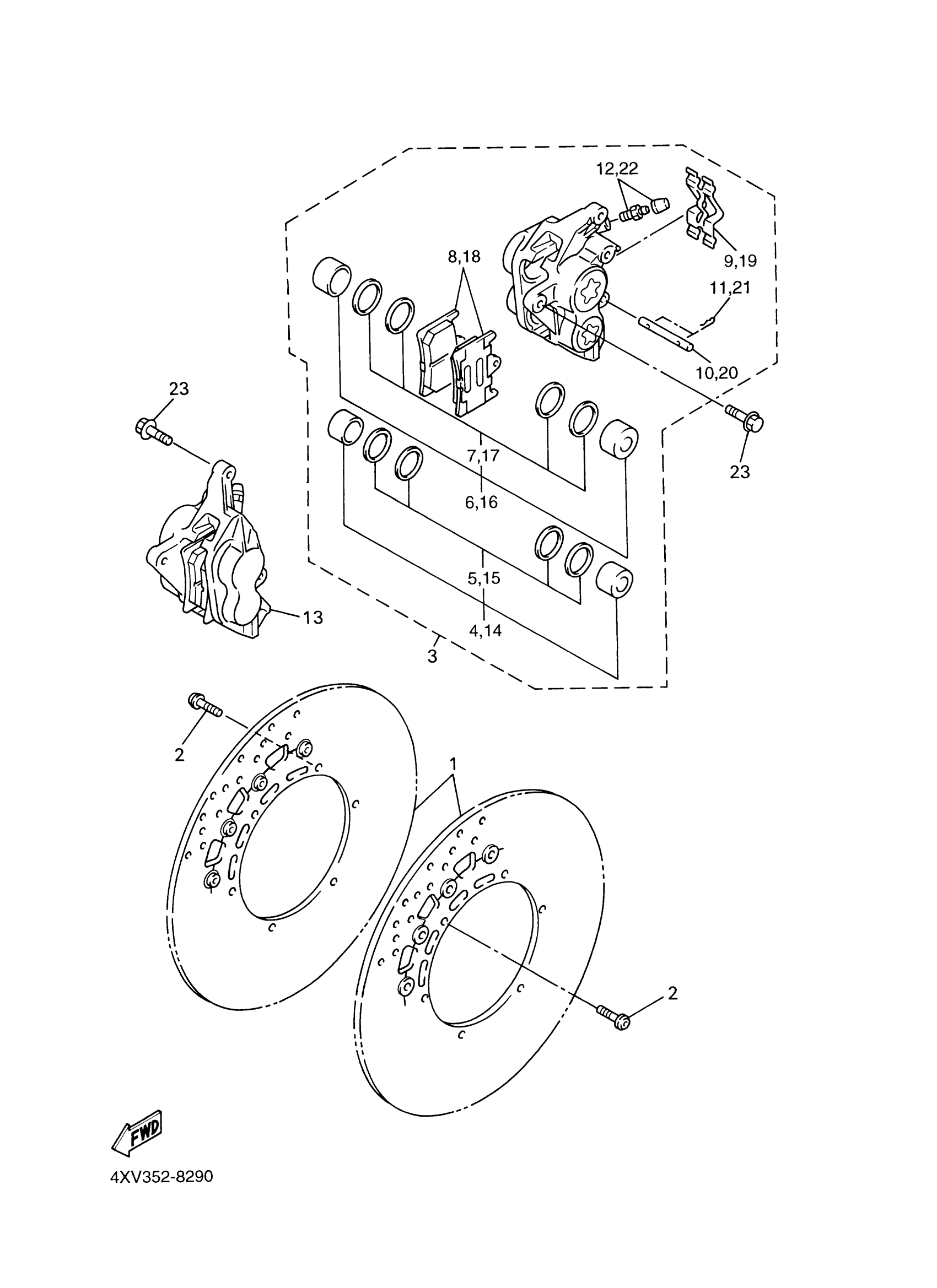

Yamaha FZS1000PC (FZ1 CA) 5LVC 2002 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC BRAKE ASSY

5JJ-2581T-11-00

Unavailable

2

BOLT

90109-06254-00

$2.57

3

CALIPER ASSY (LEFT)

5DM-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

5

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

6

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

7

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

8

BRAKE PAD KIT

4SV-25805-00-00

$66.68

9

SUPPORT, PAD

4SV-25919-00-00

$20.59

10

PIN, PAD

4SV-25924-00-00

$34.81

11

CLIP, PAD PIN

3GM-25925-00-00

$9.15

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

CALIPER ASSY (RIGHT)

5DM-2580U-00-00

Unavailable

14

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

15

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

16

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

17

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

18

BRAKE PAD KIT

4SV-25805-00-00

$66.68

19

SUPPORT, PAD

4SV-25919-00-00

$20.59

20

PIN, PAD

4SV-25924-00-00

$34.81

21

CLIP, PAD PIN

3GM-25925-00-00

$9.15

22

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

23

BOLT, WASHER BASED

90105-105A7-00

Unavailable
