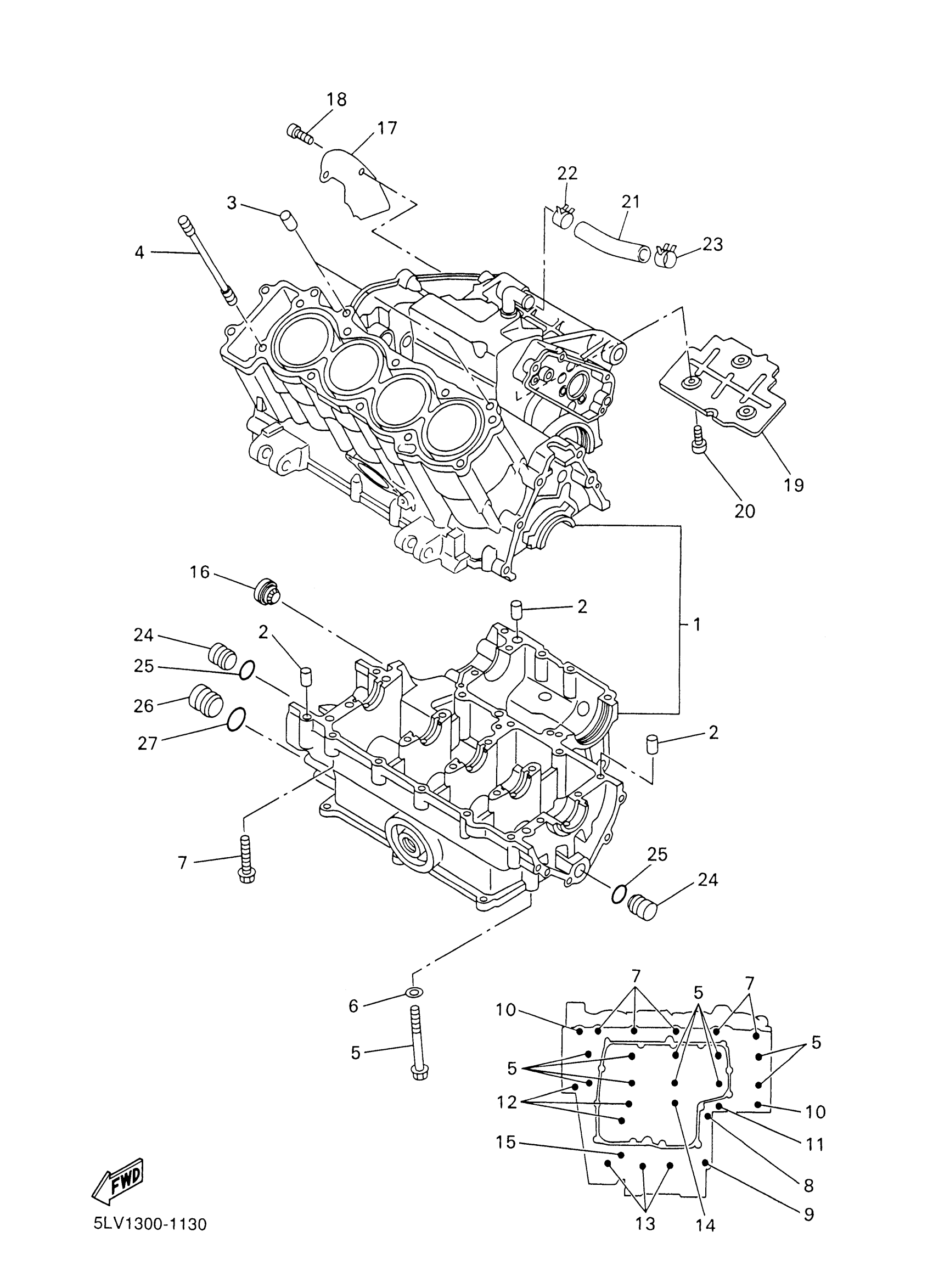

Yamaha FZS1000PC (FZ1 CA) 5LVC 2002 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5LV-15100-09-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

BOLT, STUD

90116-10619-00

$9.17

5

BOLT, WASHER BASED

90105-093A5-00

$8.98

6

WASHER, PLATE(1AA)

90201-096J9-00

$2.61

7

BOLT, FLANGE

95817-06055-00

$1.87

8

BOLT, FLANGE

95817-08050-00

$2.93

9

BOLT, FLANGE

95817-08050-00

$2.93

10

BOLT

90109-065G3-00

$6.83

11

BOLT, FLANGE

95817-06060-00

$2.60

12

BOLT, FLANGE

95817-06070-00

$2.71

13

BOLT, FLANGE

95817-06045-00

$5.76

14

BOLT, FLANGE

95814-06050-00

Unavailable

15

BOLT, FLANGE

95817-06065-00

Unavailable

16

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

17

PLATE, BREATHER

4XV-11165-00-00

Unavailable

18

BOLT,SOCKET

91317-06012-00

Unavailable

19

PLATE, BREATHER 2

4XV-11145-00-00

Unavailable

20

BOLT,SOCKET

91317-06012-00

Unavailable

21

PIPE, BREATHER 1

5LV-11166-00-00

Unavailable

22

CLIP

90468-08104-00

Unavailable

23

CLIP

90467-16009-00

Unavailable

24

PLUG

90338-16262-00

Unavailable

25

O-RING(3LD)

93210-12790-00

Unavailable

26

PLUG

90338-20263-00

Unavailable

27

O-RING (1J7)

93210-16314-00

Unavailable
