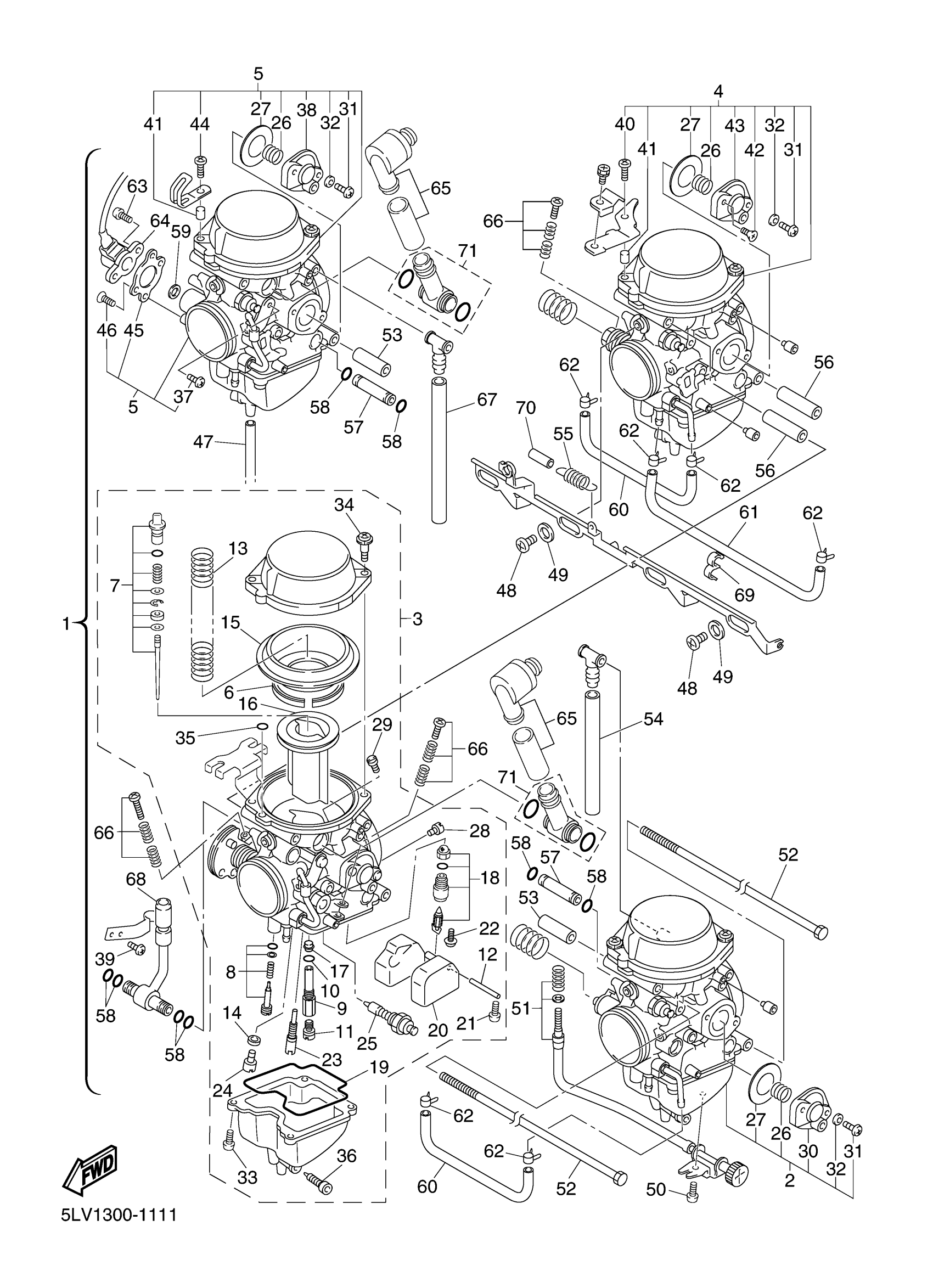

Yamaha FZS1000PC (FZ1 CA) 5LVC 2002 CARBURETOR Diagram
#
1
CARBURETOR ASSY
5LV-14900-30-00
Unavailable
1
CARBURETOR ASSY
5LV-14900-40-00
Unavailable
2
. CARBURETOR ASSY 1
5LV-14901-30-00
Unavailable
2
. CARBURETOR ASSY 1
5LV-14901-40-00
Unavailable
3
. CARBURETOR ASSY 2
5LV-14902-30-00
Unavailable
3
. CARBURETOR ASSY 2
5LV-14902-40-00
Unavailable
4
. CARBURETOR ASSY 3
5LV-14903-30-00
Unavailable
4
. CARBURETOR ASSY 3
5LV-14903-40-00
Unavailable
5
. CARBURETOR ASSY 4
5LV-14904-30-00
Unavailable
5
. CARBURETOR ASSY 4
5LV-14904-40-00
Unavailable
7
NEEDLE SET
5LV-1490J-20-00
Unavailable
7
.. NEEDLE SET
5LV-1490J-30-00
Unavailable
9
HOLDER
5LV-14261-00-00
Unavailable
10
O-RING
583-14561-00-00
Unavailable
11
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
11
JET,MAIN #132.5
3G2-1423A-77-00
Unavailable
12
PIN, FLOAT
127-14186-00-00
Unavailable
13
SPRING, DIAPHRAGM
5LV-14933-00-00
Unavailable
14
RING
5EL-14918-00-00
Unavailable
15
DIAPHRAGM
5EL-24411-00-00
Unavailable
16
.... VALVE, THROTTLE 1
5LV-14112-00-00
Unavailable
17
NOZZLE, MAIN
5DM-14141-40-00
Unavailable
18
NEEDLE VALVE SET
4KM-14107-15-00
Unavailable
19
O-RING
5DM-14561-00-00
Unavailable
20
FLOAT
5DM-14985-00-00
Unavailable
21
SCREW, PAN HEAD(JG1)
98507-04008-00
Unavailable
22
SCREW
1FN-14565-00-00
Unavailable
23
JET, PILOT (# 15)
4KM-14142-15-00
Unavailable
24
JET,MAIN # 42.5
3G2-1423A-59-00
Unavailable
25
STARTER SET
5DM-1410A-00-00
Unavailable
26
. SPRING
4XY-14589-00-00
Unavailable
27
DIAPHRAGM ASSY
5AP-14940-00-00
Unavailable
28
JET, MAIN (# 85)
1HX-14231-17-00
Unavailable
29
JET, MAIN (#125)
1HX-14231-25-00
Unavailable
30
COVER, CARBURETOR
5AP-14280-00-00
Unavailable
31
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
31
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
32
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
32
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
33
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
34
SCREW
4KM-14216-00-00
Unavailable
34
SCREW
4KM-14216-00-00
Unavailable
35
O-RING (493-CARB.)
354-14147-00-00
Unavailable
36
PLUG, DRAIN
4KP-14191-00-00
Unavailable
37
GASKET, EXHAUST
98507-05008-00
Unavailable
38
.. COVER
5EL-14480-00-00
Unavailable
39
SCREW, PAN HEAD(78G)
98580-03006-00
Unavailable
40
SCREW, PAN HEAD
90157-05M19-00
Unavailable
41
RING
4KM-14194-00-00
Unavailable
42
SCREW,FLAT
98707-04014-00
Unavailable
43
.... COVER, CARBURETOR
5HK-14280-00-00
Unavailable
44
SCREW, PAN HEAD
98507-05014-00
Unavailable
45
.... BRACKET
5EA-14867-00-00
Unavailable
46
SCREW, FLAT
98707-04008-00
Unavailable
47
PIPE
3JE-14197-00-00
Unavailable
48
SCREW
5DM-14565-00-00
Unavailable
49
PACKING
4NK-14327-00-00
Unavailable
50
SCREW, PAN HEAD (7G3)
98580-05008-00
Unavailable
51
THROTTLE SCREW SET
5EA-14103-00-00
Unavailable
52
. SCREW
4SV-14592-00-00
Unavailable
53
PIPE
5EA-14148-00-00
Unavailable
54
HOSE
4SV-14987-30-00
Unavailable
55
. SPRING
4SV-14935-00-00
Unavailable
56
PIPE
5EA-14996-00-00
Unavailable
57
PIPE
4SV-14996-40-00
Unavailable
58
O-RING
36Y-14147-00-00
Unavailable
59
WASHER
4KG-14285-00-00
Unavailable
60
HOSE
5DM-14987-00-00
Unavailable
61
PIPE
5EL-14396-00-00
Unavailable
62
CLIP
5DM-14919-00-00
Unavailable
63
SCREW
4WM-14565-00-00
Unavailable
64
THROTTLE SENSOR ASSY
4XY-85885-01-00
Unavailable
65
PIPE
4SV-14197-00-00
Unavailable
66
STOP SCREW SET
4KM-1490K-00-00
Unavailable
67
HOSE
4SV-14987-20-00
Unavailable
68
.. HOSE
5EA-14987-10-00
Unavailable
69
.. CLIP
5LV-14919-00-00
Unavailable
70
SEAT, SPRING
5DM-14936-00-00
Unavailable
71
. NIPPLE, 1
5LV-1410F-00-00
Unavailable
