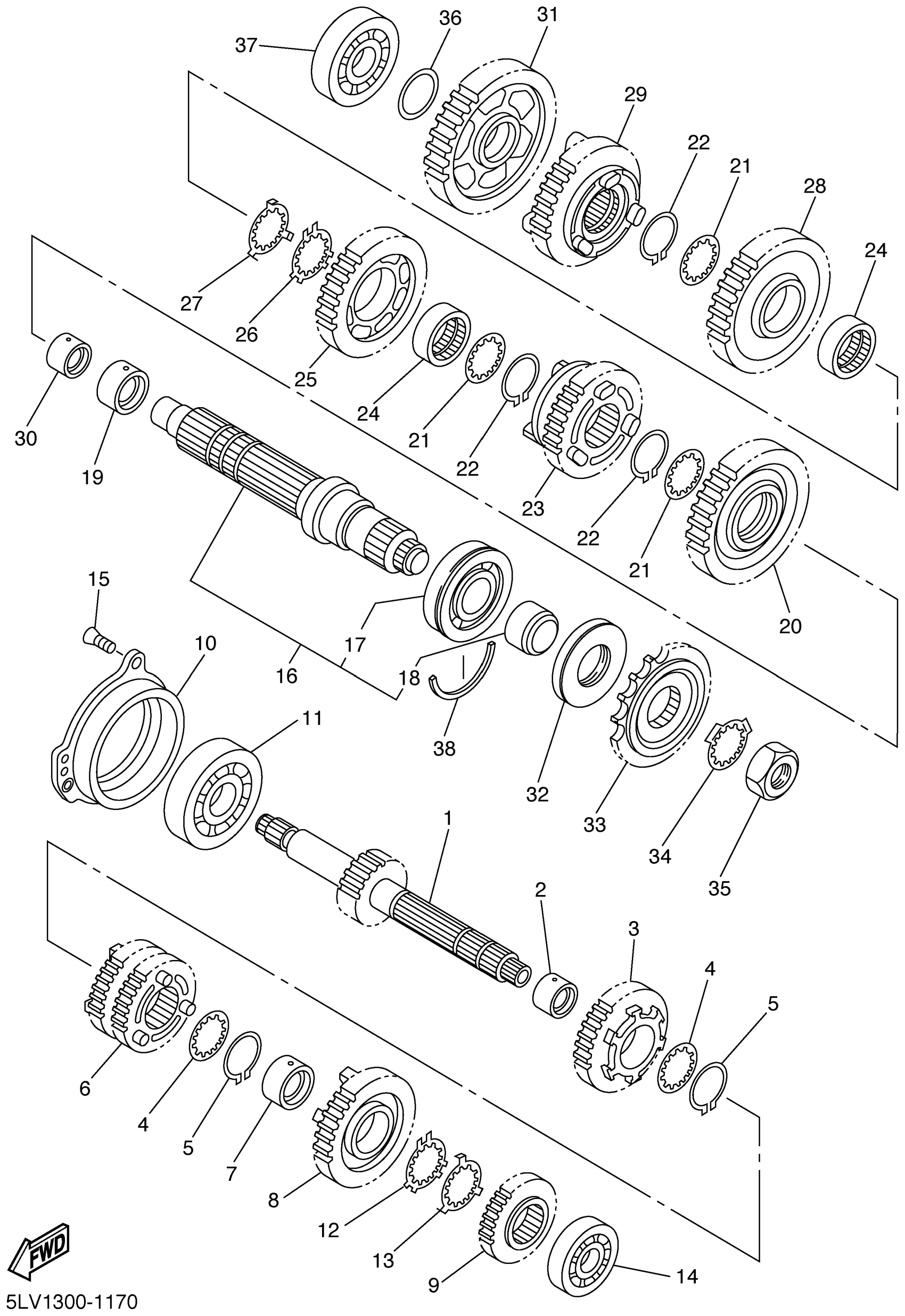

Yamaha FZS1000NC (FZ1 CA) 5LV7 2001 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSY

5LV-17401-00-00

Unavailable

2

. COLLAR

90387-2811B-00

Unavailable

3

GEAR, 5TH PINION

5JJ-17151-00-00

Unavailable

4

WASHER

90209-25342-00

$7.49

5

CIRCLIP (2H7)

93440-28062-00

$8.49

6

GEAR, 3RD PINION

5JJ-17131-00-00

Unavailable

7

COLLAR

90387-2810U-00

Unavailable

8

GEAR, 6TH PINION

5JJ-17161-00-00

$181.99

9

GEAR, 2ND PINION

5JJ-17121-01-00

Unavailable

10

HOUSING, BEARING 1

5JJ-15163-00-00

Unavailable

11

BEARING

93306-37807-00

Unavailable

12

WASHER

90209-25349-00

Unavailable

13

WASHER

90209-25350-00

Unavailable

14

BEARING

93306-27209-00

$76.99

15

SCREW, FLATHEAD (2H7)

90149-06126-00

$9.49

16

DRIVE AXLE ASSY

5LV-17402-00-00

Unavailable

17

. BEARING

93306-20705-00

Unavailable

18

. COLLAR

90387-30001-00

Unavailable

19

COLLAR

90387-3311C-00

Unavailable

20

GEAR, 2ND WHEEL

5JJ-17221-00-00

Unavailable

21

WASHER

90209-30344-00

Unavailable

22

CIRCLIP (2H7)

93440-32063-00

Unavailable

23

GEAR, 6TH WHEEL

5PW-17261-00-00

Unavailable

24

COLLAR

90387-3310V-00

Unavailable

25

GEAR, 4TH WHEEL

5JJ-17241-00-00

Unavailable

26

WASHER

90209-30345-00

Unavailable

27

WASHER

90209-30343-00

Unavailable

28

GEAR, 3RD WHEEL

5JJ-17231-00-00

Unavailable

29

GEAR, 5TH WHEEL

5JJ-17251-00-00

Unavailable

30

COLLAR

90387-2511A-00

Unavailable

31

GEAR, 1ST WHEEL (35T)

5JJ-17211-00-00

Unavailable

32

OIL SEAL

93102-45465-00

Unavailable

33

SPROCKET, DRIVE

4XV-17460-00-00

Unavailable

34

WASHER, LOCK(47X)

90215-26241-00

Unavailable

35

NUT, LOCK (409)

90179-22063-00

Unavailable

36

WASHER, PLATE(83R)

90201-224L4-00

Unavailable

37

BEARING

93306-37209-00

Unavailable

38

CIRCLIP (1J7)

93440-72049-00

Unavailable
