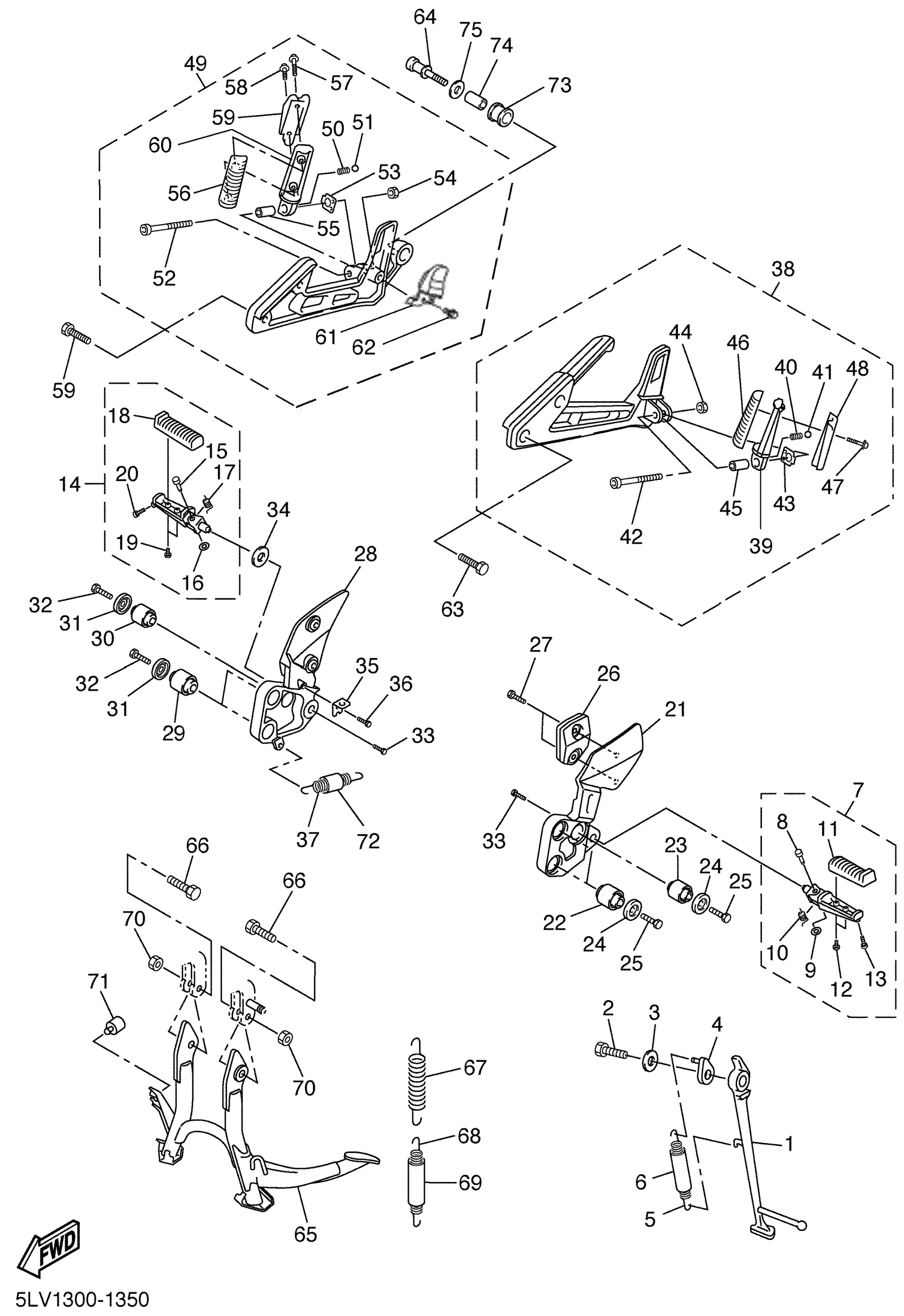

Yamaha FZS1000NC (FZ1 CA) 5LV7 2001 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

5LV-27311-00-00

Unavailable

2

BOLT, HEXAGON

97017-08020-00

$9.49

3

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

4

HOOK, SIDE STAND

36Y-27352-00-00

Unavailable

5

SPRING, TENSION

90506-20006-00

Unavailable

6

HOSE (L60)

90445-197J2-00

$4.61

7

FRONT FOOTREST ASSY (LEFT)

5LV-27410-00-00

Unavailable

8

PIN(2AL)

90243-08029-00

$8.49

9

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

10

SPRING, TORSION (22N)

90508-20572-00

$8.49

11

COVER, FOOTREST

4BP-27413-00-00

$30.99

12

SCREW, PAN HEAD

98507-05014-00

$8.49

13

BOLT

90109-08075-00

$7.49

14

FRONT FOOTREST ASSY (RIGHT)

5LV-27420-00-00

Unavailable

15

PIN(2AL)

90243-08029-00

$8.49

16

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

17

SPRING, TORSION (22N)

90508-20572-00

$8.49

18

COVER, FOOTREST

4BP-27413-00-00

$30.99

19

SCREW, PAN HEAD

98507-05014-00

$8.49

20

BOLT

90109-08075-00

$7.49

21

BRACKET 2

5LV-27442-02-00

Unavailable

22

DAMPER, FOOTREST 2

1NL-27424-00-00

Unavailable

23

DAMPER, MUFFLER

3KJ-14737-00-00

Unavailable

24

WASHER(1UF)

90209-08295-00

Unavailable

25

BOLT (3XF1)

90110-08220-00

Unavailable

26

WEIGHT

5LV-2622H-00-00

Unavailable

27

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

28

BRACKET 3

5LV-27443-03-00

Unavailable

29

DAMPER, FOOTREST 2

1NL-27424-00-00

Unavailable

30

DAMPER, MUFFLER

3KJ-14737-00-00

Unavailable

31

WASHER(1UF)

90209-08295-00

Unavailable

32

BOLT (3XF1)

90110-08220-00

Unavailable

33

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

34

WASHER, WAVE(46X)

90206-17084-00

Unavailable

35

STAY, STOP SWITCH

4DN-2144G-00-00

Unavailable

36

SCREW, PAN

98517-06008-00

Unavailable

37

SPRING, TENSION(46X)

90506-20377-00

Unavailable

38

REAR FOOTREST ASSY 1

5LV-27430-04-00

Unavailable

39

FOOTREST, REAR 1

5LV-27431-01-00

Unavailable

40

SPRING, COMPRESSION

90501-15001-00

Unavailable

41

BALL

93501-04011-00

Unavailable

42

BOLT, SOCKET

91314-06040-00

Unavailable

43

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

44

NUT, U FLANGE

95604-06200-00

Unavailable

45

COLLAR

90387-06014-00

Unavailable

46

COVER, FOOTREST

4BP-27413-00-00

$30.99

47

SCREW PAN HEAD W/W (4ST1E,4WC1

97607-05230-00

Unavailable

48

ARM 1

5LV-2741A-00-00

Unavailable

49

REAR FOOTREST ASSY 2

5LV-27440-04-00

Unavailable

50

SPRING, COMPRESSION

90501-15001-00

Unavailable

51

BALL

93501-04011-00

Unavailable

52

BOLT, SOCKET

91314-06040-00

Unavailable

53

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

54

NUT, U FLANGE

95604-06200-00

Unavailable

55

COLLAR

90387-06014-00

Unavailable

56

COVER, FOOTREST

4BP-27413-00-00

$30.99

57

SCREW PAN HEAD W/W (4ST1E,4WC1

97607-05230-00

Unavailable

58

SCREW, PAN HEAD WITH WASHER

97607-05220-00

Unavailable

59

ARM 2

5LV-2741E-01-00

Unavailable

60

FOOTREST, REAR 2

5LV-27441-01-00

Unavailable

61

. WEIGHT ASSY

5LV-2622J-00-00

Unavailable

62

BOLT, FLANGE

95817-08012-00

Unavailable

63

BOLT (3LD)

90109-087F1-00

Unavailable

64

BOLT

5LV-27217-00-00

Unavailable

65

STAND, MAIN

5LV-27111-00-00

Unavailable

66

BOLT

90109-100E6-00

Unavailable

67

SPRING, TENSION

90506-40508-00

Unavailable

68

SPRING, TENSION

90506-23509-00

Unavailable

69

HOSE (L0)

90445-170K9-00

Unavailable

70

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

71

STOPPER, MAIN STAND

1A0-27114-00-00

Unavailable

72

HOSE(3GM)

90446-17346-00

Unavailable

73

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

74

COLLAR (2H7)

90387-10636-00

Unavailable

75

WASHER, PLATE (2H7)

90201-10669-00

Unavailable
