Description

Price

1

DOUBLE SEAT ASSY

5LV-24730-00-00

Unavailable

2

. COVER, SEAT

5LV-2470F-00-00

Unavailable

3

BRACKET, SEAT

4HM-24728-00-00

$11.99

4

. NUT

95780-06600-00

Unavailable

5

PAD, SEAT

1T4-24741-00-00

Unavailable

6

DAMPER, SEAT

5LV-24737-00-00

$8.99

7

BAND, BATTERY

4J2-82131-01-00

$29.99

8

SEAT LOCK ASSY

4BP-24780-00-00

$97.99

9

PLATE

4BP-24792-00-00

Unavailable

10

NUT, FLANGE(4MV)

95707-06500-00

$1.23

11

CABLE, SEAT LOCK

4HM-2478E-00-00

Unavailable

12

HELMET HANGER ASSY

3YX-21308-00-00

Unavailable

13

SCREW(4HM)

90149-06308-00

$8.49

14

PAD, SEAT

1T4-24741-00-00

Unavailable

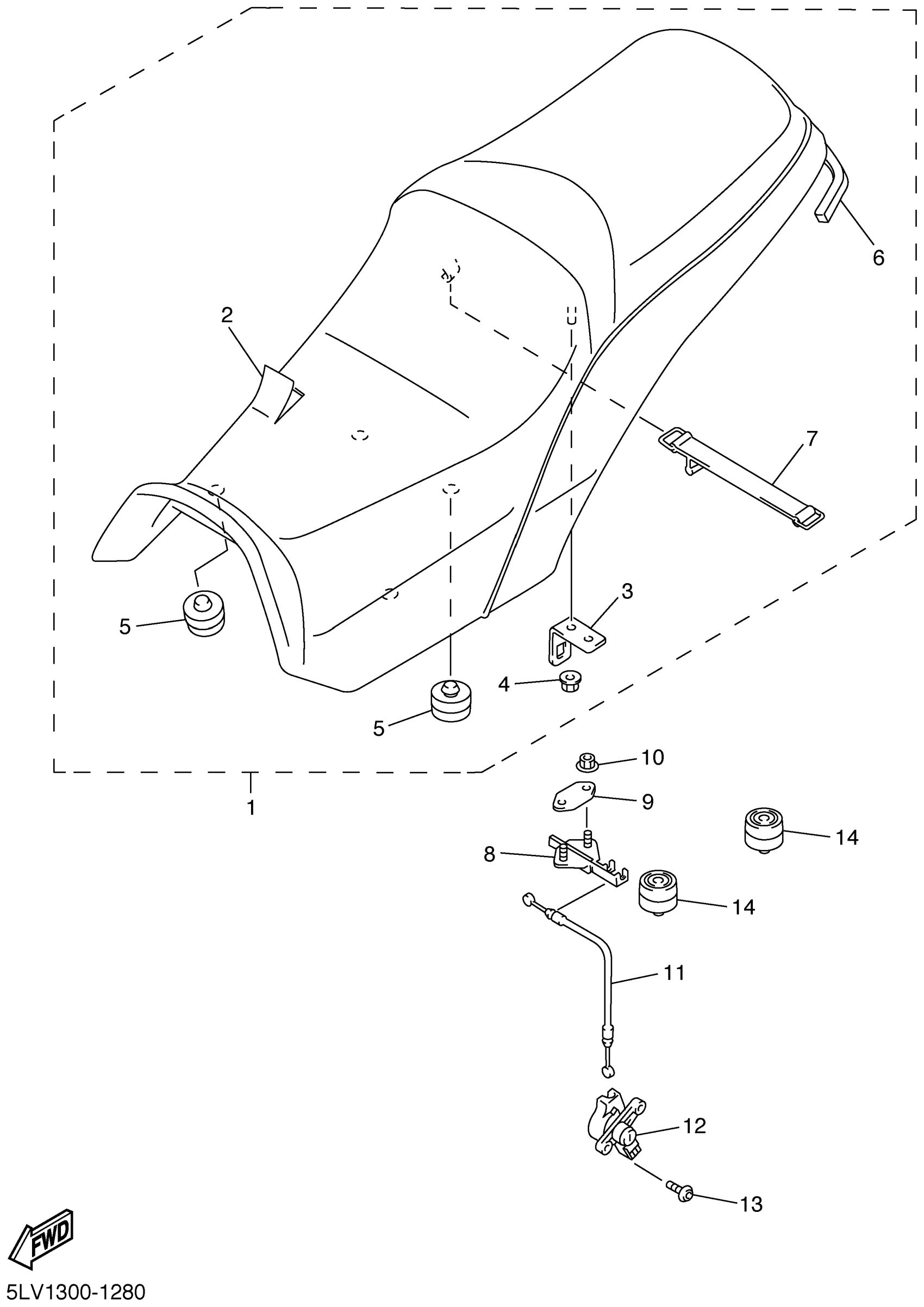

Yamaha FZS1000NC (FZ1 CA) 5LV7 2001 SEAT Diagram

DOUBLE SEAT ASSY

. COVER, SEAT

BRACKET, SEAT

. NUT

PAD, SEAT

DAMPER, SEAT

BAND, BATTERY

SEAT LOCK ASSY

PLATE

NUT, FLANGE(4MV)

CABLE, SEAT LOCK

HELMET HANGER ASSY

SCREW(4HM)

PAD, SEAT
