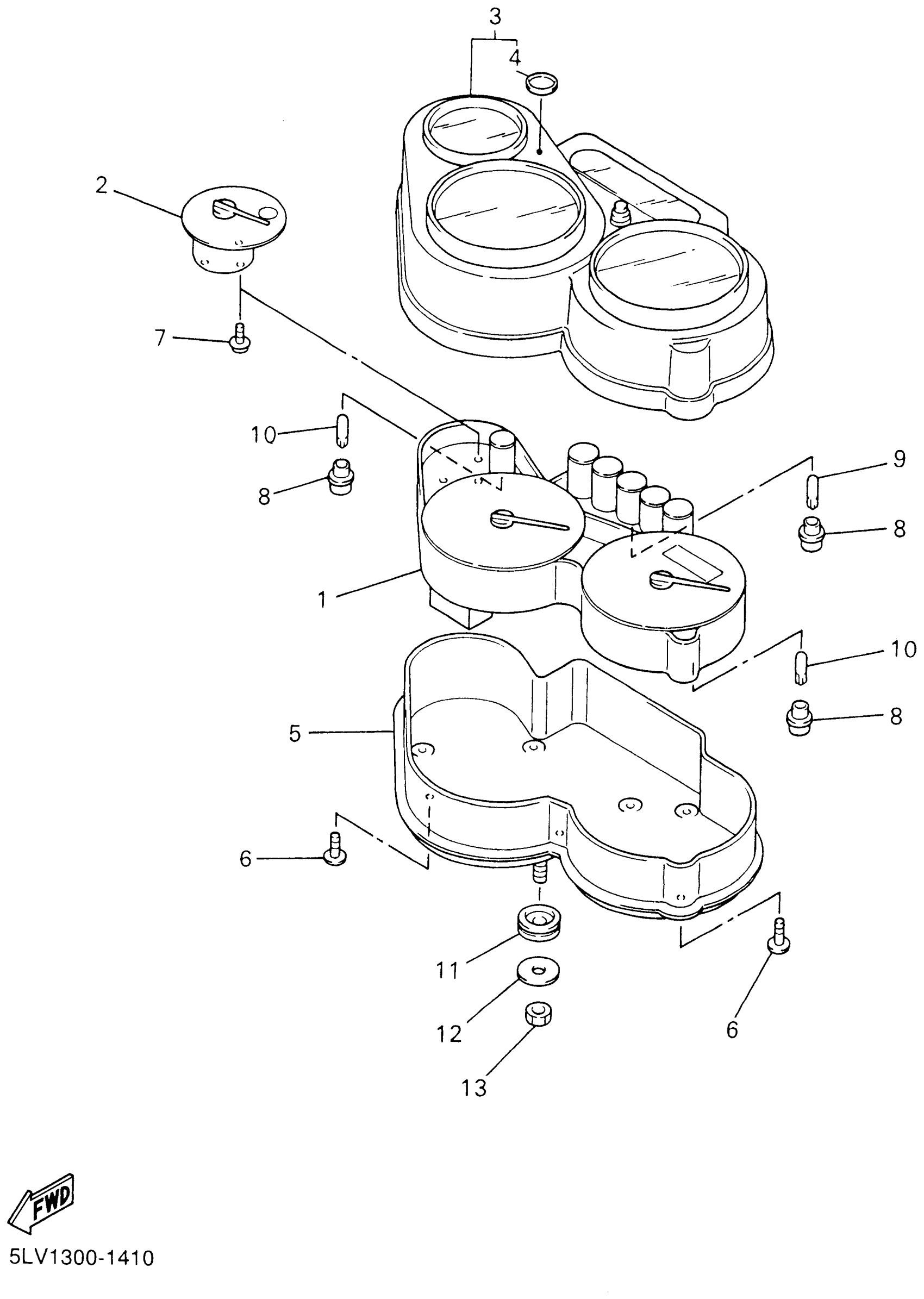

Yamaha FZS1000NC (FZ1 CA) 5LV7 2001 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY

5LV-83570-20-00

Unavailable

2

FUEL METER ASSY

5LV-85750-00-00

Unavailable

3

CASE, METER UPPER

5LV-8353E-00-00

Unavailable

4

. EMBLEM

5DM-2341B-00-00

Unavailable

5

CASE, SPEEDOMETER LOWER

5LV-83572-00-00

Unavailable

6

SCREW, TAPPING

97707-40018-00

$3.40

7

SCREW, SPECIAL

4YR-8362Y-00-00

Unavailable

8

SOCKET, NEUTRAL

4YR-83534-00-00

$8.99

9

BULB

4YR-83517-00-00

$6.99

10

BULB

4YR-83517-10-00

$6.99

11

GROMMET(3GM)

90480-14585-00

$8.49

12

WASHER, PLATE

90201-06380-00

$0.60

13

NUT(6TA)

95317-06600-00

$3.55
