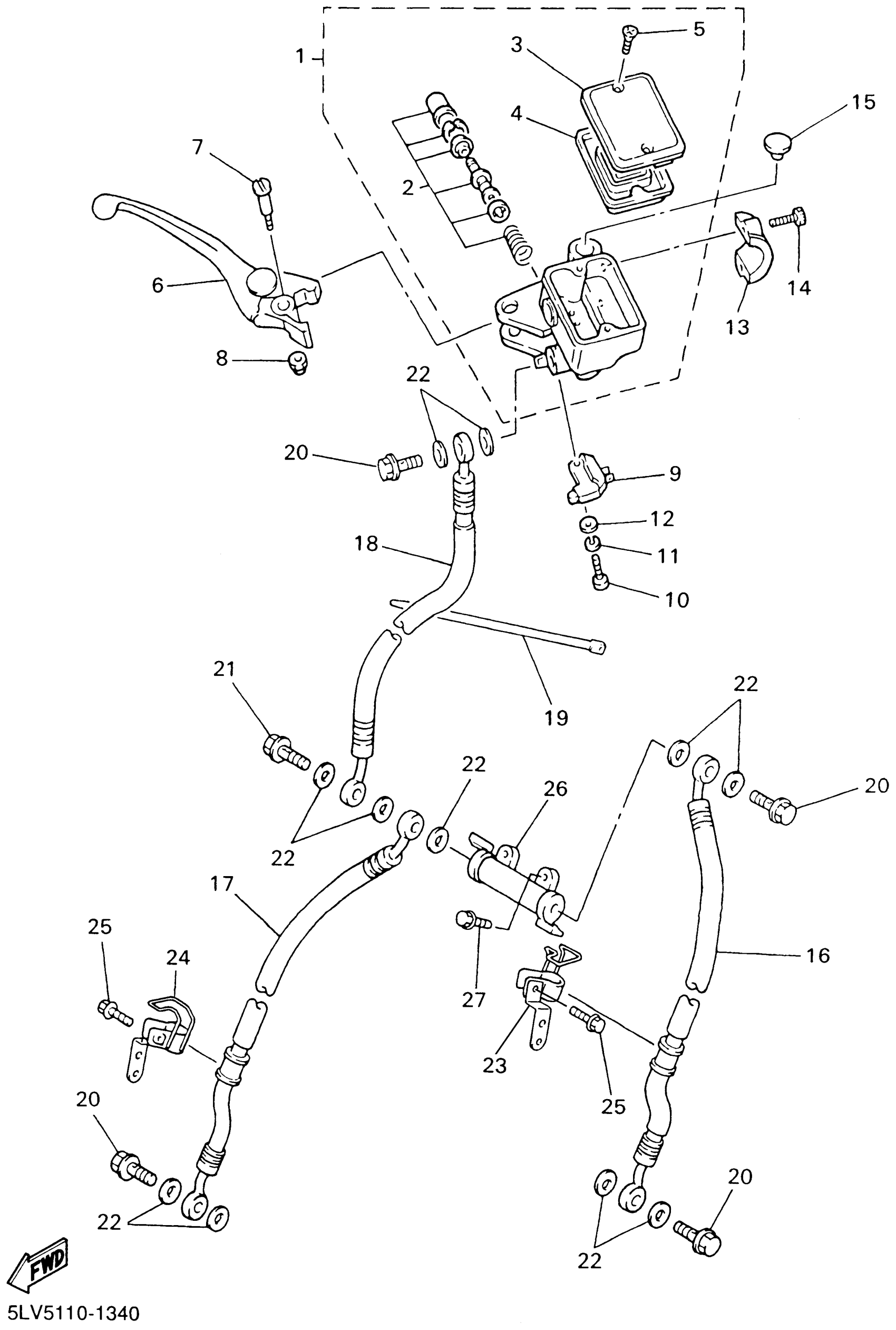

Yamaha FZS1000NC (FZ1 CA) 5LV7 2001 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

5DM-W2587-01-00

$331.91

2

CYLINDER KIT, MASTER

5DM-W0041-50-00

$68.70

3

RESERVOIR CAP SET

4HM-W2585-01-00

Unavailable

4

DIAPHRAGM, RESERVOIR

4HM-25854-00-00

$29.13

5

SCREW, FLAT

98707-04012-00

$1.34

6

LEVER 2

5EB-83922-01-00

$68.48

7

BOLT, LEVER

3FV-2589F-00-00

$11.87

8

NUT, SELF-LOCKING

95617-06100-00

$2.17

9

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$34.26

10

SCREW, PAN HEAD

98517-04012-00

$3.05

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

12

WASHER, PLATE

92992-04600-00

Unavailable

13

BRACKET, MASTER CYLINDER

4HM-25867-00-00

$33.74

14

BOLT,SOCKET

91317-06020-00

Unavailable

15

PLUG (341-26329-00)

90338-09012-00

$6.76

16

HOSE, BRAKE 1

5LV-25872-01-00

Unavailable

17

HOSE, BRAKE 2

5LV-25873-01-00

Unavailable

18

HOSE, BRAKE

5LV-25874-01-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

BOLT, UNION(3GM)

90401-10159-00

Unavailable

21

BOLT, UNION

90401-10038-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

HOLDER, BRAKE HOSE 1

5LV-25875-10-00

Unavailable

24

HOLDER, BRAKE HOSE 2

5LV-25876-10-00

Unavailable

25

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

26

JOINT

42H-25885-01-00

Unavailable

27

. BOLT, FLANGE

95027-06020-00

$0.93
