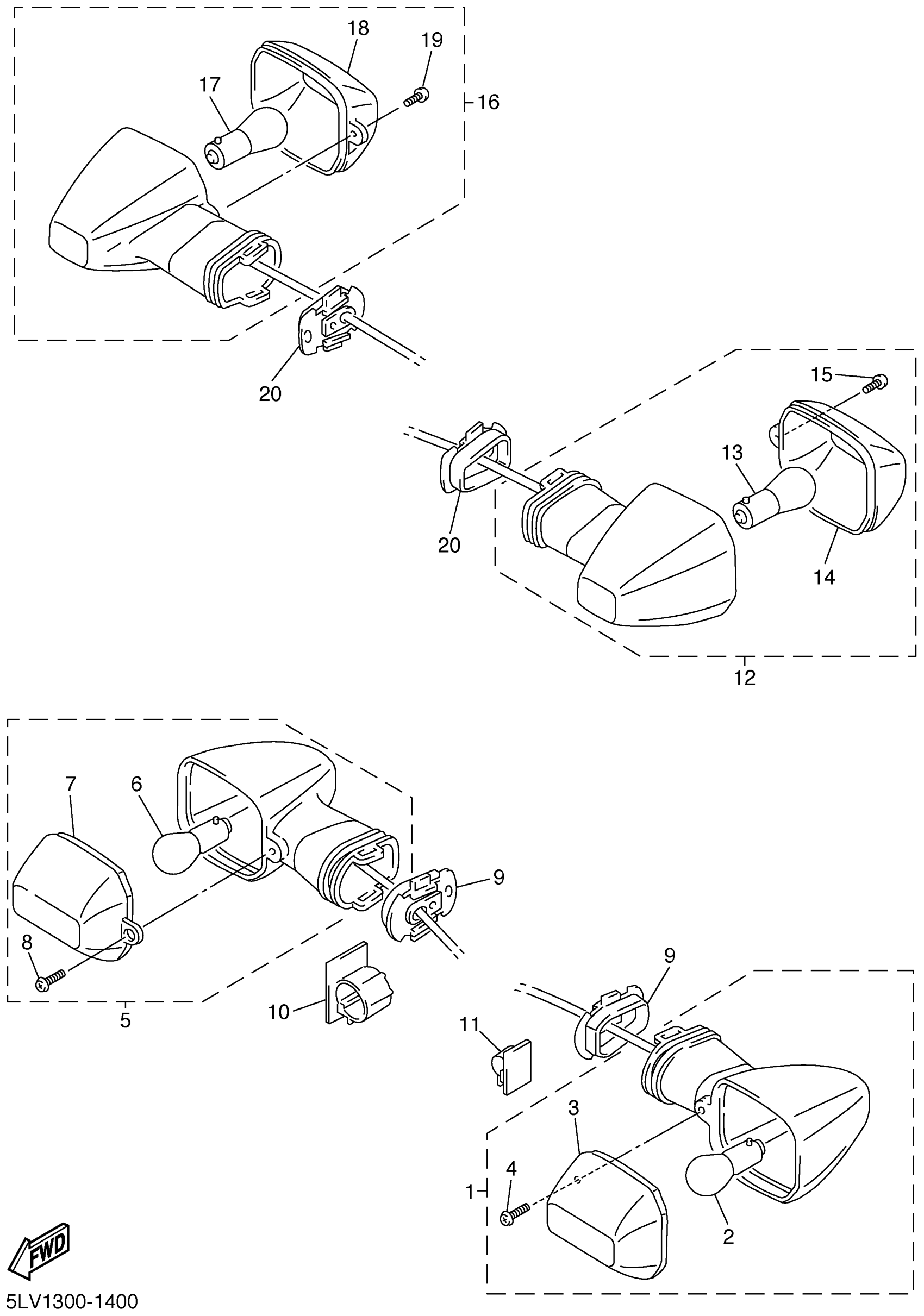

Yamaha FZS1000NC (FZ1 CA) 5LV7 2001 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5LV-83310-00-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

4JH-83332-10-00

$22.99

4

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

5

FRONT FLASHER LIGHT ASSY 2

5LV-83320-00-00

Unavailable

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

7

LENS, FLASHER 2

4JH-83342-10-00

$20.99

8

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

9

PLATE, STOPPER

5DM-8331L-00-00

$8.99

10

CLAMP

90464-20021-00

$4.41

11

CLAMP(1NL)

90464-62085-00

$7.49

12

REAR FLASHER LIGHT ASSY 1

5LV-83330-10-00

Unavailable

13

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

14

LENS, FLASHER 2

4JH-83342-10-00

$20.99

15

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

16

REAR FLASHER LIGHT ASSY 2

5LV-83340-10-00

Unavailable

17

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

18

LENS, FLASHER

4JH-83332-10-00

$22.99

19

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

20

PLATE, STOPPER

5DM-8331L-00-00

$8.99
