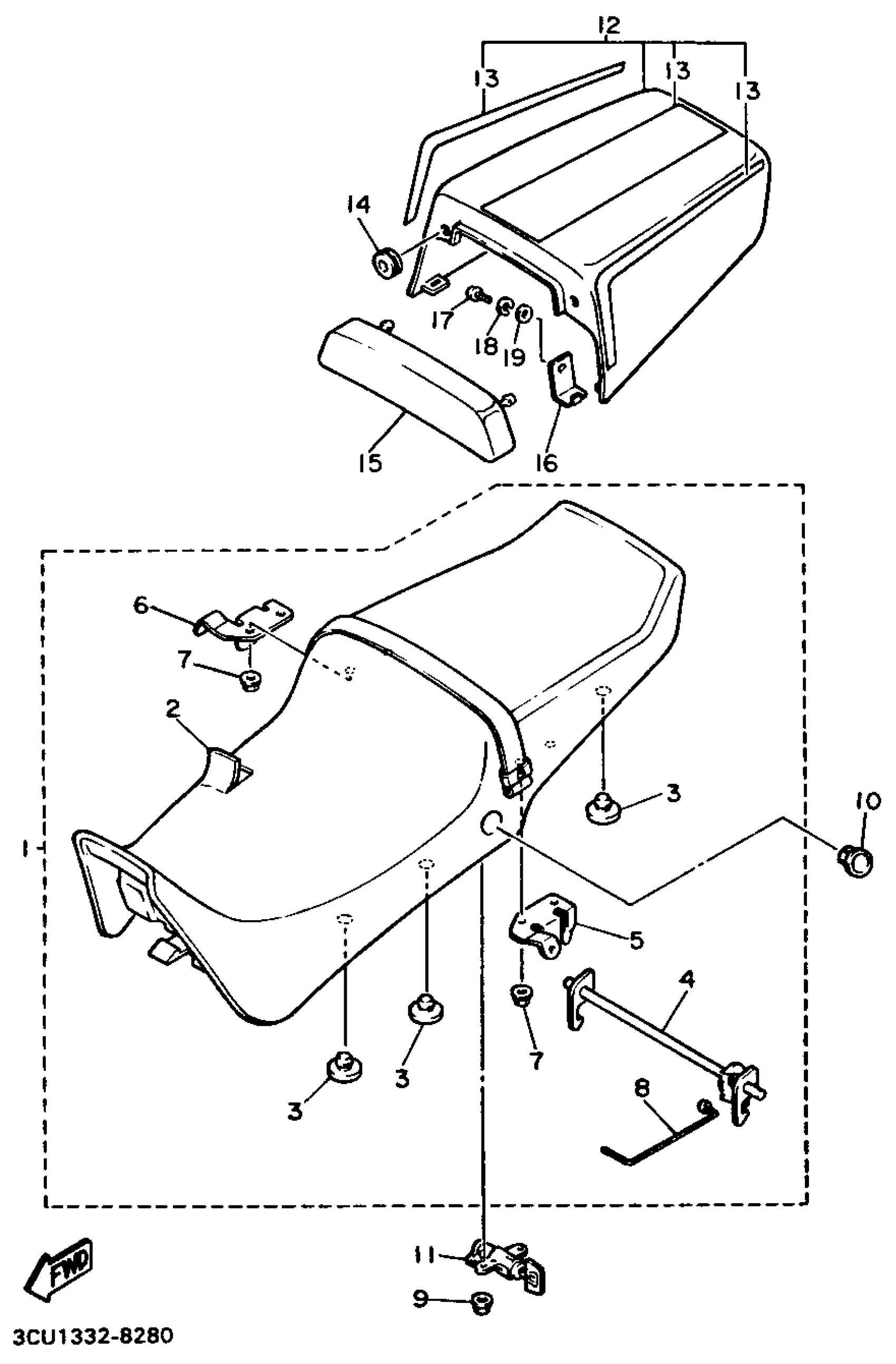

Yamaha FZR750RU (FZR750R) 1988 SEAT Diagram

#

Description

Price

1

DOUBLE SEAT ASSEMBLY

2GH-24730-00-00

Unavailable

2

. COVER, DOUBLE SEAT

2GH-24731-00-00

Unavailable

3

PAD, SEAT

2GH-24741-01-00

$2.60

4

. LEVER, SEAT

2GH-24776-00-00

Unavailable

5

. BRACKET, SEAT

1KT-24718-00-00

Unavailable

6

. BRACKET, SEAT

1KT-24728-00-00

Unavailable

7

NUT, FLANGE(7NB)

95780-06500-00

$2.60

8

. ROD, CONNECTING

1JK-2478F-00-00

Unavailable

9

NUT, FLANGE(3GM)

95707-05500-00

$8.49

10

COVER

47X-24796-00-00

Unavailable

11

SEAT LOCK ASSY

47X-24705-00-00

Unavailable

12

COVER, SEAT (WHITE)

2YJ-Y2479-00-GE

Unavailable

13

. GRAPHIC, TAIL COVERTAIL COVER

2YJ-2477L-00-00

Unavailable

14

GROMMETRZ350SEATCL

(29L-24742-50-00)

Unavailable

15

BACK REST ASSEMBLY

2GH-2840F-00-00

Unavailable

16

BRACKET, SEAT

2GH-24718-00-00

Unavailable

17

SCREW PAN HEAD

98580-06010-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable
