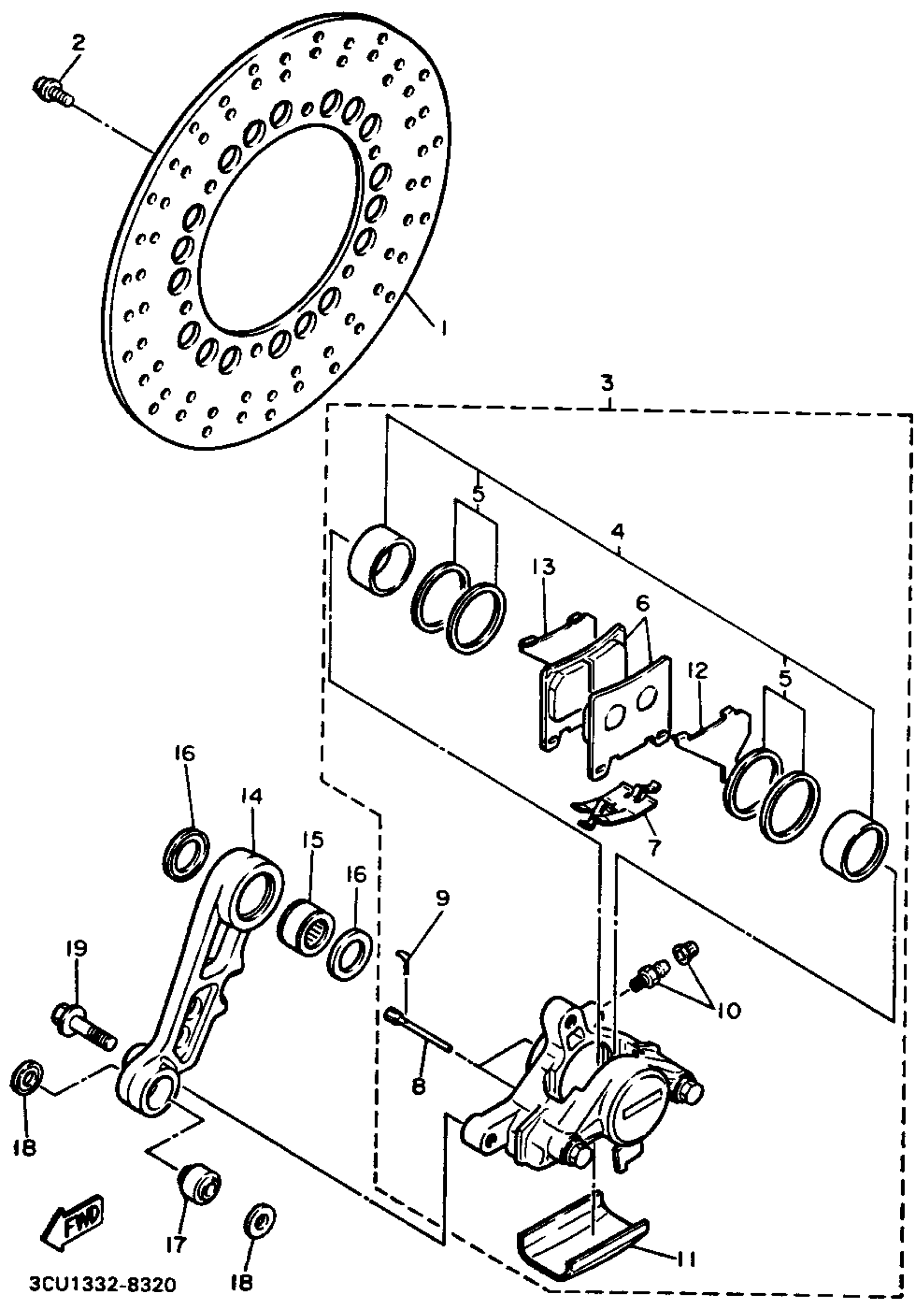

Yamaha FZR750RU (FZR750R) 1988 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT)

2KT-25831-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

3

CALIPER ASSY, REAR 2

2YJ-2580W-01-00

Unavailable

4

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

5

PISTON SEAL KIT

31A-W0047-00-00

$57.99

6

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

7

SUPPORT, PAD

1WG-25919-00-00

$10.99

8

PIN, PAD

3HE-25924-00-00

Unavailable

9

CLIP, PAD PIN

3GM-25925-00-00

$11.99

10

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

11

COVER, DUST

51J-25836-01-00

Unavailable

12

SHIM, CALIPER

1FK-25827-01-00

$16.49

13

SHIM, CALIPER

1FK-25828-01-00

$15.49

14

BRACKET, CALIPER

2YJ-25819-00-00

Unavailable

15

BEARING

93317-425B7-00

$41.99

16

OIL SEAL

93101-25030-00

Unavailable

17

BEARING,SPECIAL

23X-253N4-09-00

Unavailable

18

OIL SEAL

93112-19006-00

Unavailable

19

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
