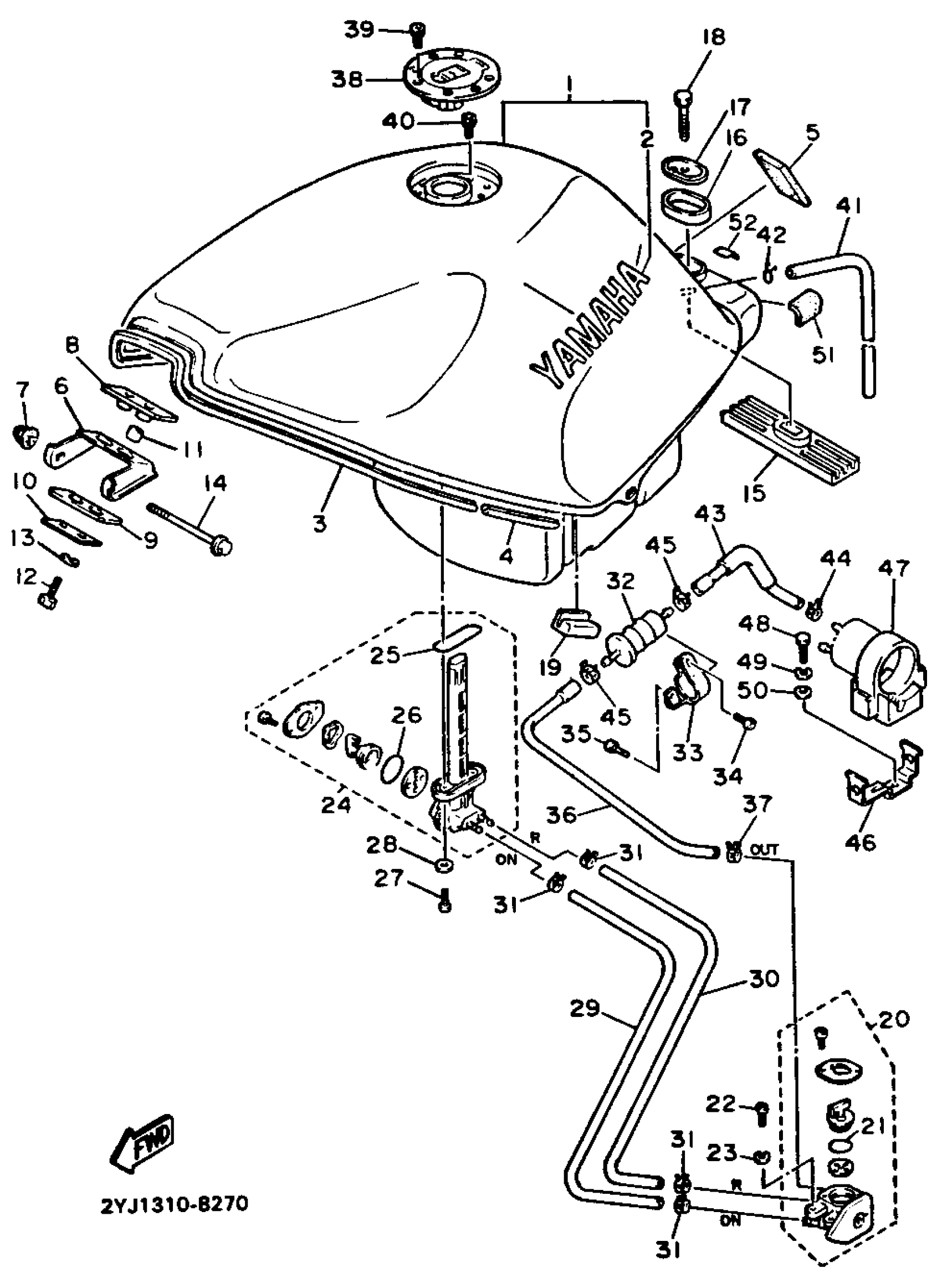

Yamaha FZR750RU (FZR750R) 1988 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

2GH-24110-00-03

Unavailable

2

EMBLEM, YAMAHA

99223-00180-00

Unavailable

3

TRIM

29L-28376-00-00

Unavailable

4

MOLD 6

2GH-2834H-00-00

Unavailable

5

DAMPER

51L-28371-00-00

Unavailable

6

BRACKET, FUEL TANK 1

2GH-24191-00-00

Unavailable

7

NUT (J17)

95380-06800-00

$8.49

8

DAMPER, LOCATING 1

2GH-24181-00-00

Unavailable

9

DAMPER, LOCATING 3

2GH-24183-00-00

Unavailable

10

WASHER, SPECIAL

2GH-24186-00-00

Unavailable

11

COLLAR (1M1)

90387-06553-00

$9.49

12

BOLT, HEXAGON

97017-06025-00

$4.24

13

WASHER, SPRING

92995-06100-00

Unavailable

14

BOLT,FLANGE (3GM)

95814-06075-00

Unavailable

15

DAMPER, LOCATING 4

2GH-24184-00-00

Unavailable

16

DAMPER, LOCATING 3

3Y6-24183-00-00

Unavailable

17

WASHER, SPECIAL

2GH-24187-00-00

Unavailable

18

BOLT, HEXAGON

97017-08030-00

Unavailable

19

DAMPER,LOCATING 2

3GM-24182-01-00

Unavailable

20

FUEL COCK ASSY

3LN-24500-00-00

Unavailable

21

SEAL, COCK

1JK-24534-00-00

Unavailable

22

SCREW, PAN

98517-06012-00

Unavailable

23

WASHER, SPRING

92907-06100-00

Unavailable

24

FUEL COCK ASY 2

2GH-24510-01-00

Unavailable

25

O-RING

2W6-24512-00-00

Unavailable

26

O-RING, FUEL COCK

3H3-24534-00-00

Unavailable

27

SCREW 256241430000

90149-06011-00

Unavailable

28

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

29

HOSE (L400)

90445-116K9-00

Unavailable

30

HOSE (L400)

90445-116K9-00

Unavailable

31

CLIP(42X)

90467-10091-00

Unavailable

32

FILTER ASSY

1FK-24560-10-00

Unavailable

33

CLAMP, FUEL PIPE 1

2GH-24366-00-00

Unavailable

34

SCREW, BIND(3XC)

98904-05012-00

Unavailable

35

SCREW, BIND(J45)

98980-06012-00

Unavailable

36

PIPE 2

2GH-24312-00-00

Unavailable

37

CLIP(42X)

90467-10091-00

Unavailable

38

CAP ASSY

4FM-24602-20-00

Unavailable

39

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

40

BOLT, SOCKET

91314-05010-00

Unavailable

41

HOSE (L730)

90445-105K7-00

Unavailable

42

CLIP

90467-090A2-00

Unavailable

43

PIPE 3

2GH-24313-00-00

Unavailable

44

CLIP(42X)

90467-10091-00

Unavailable

45

CLIP (7K7)

90467-11044-00

Unavailable

46

CLAMP 2

(2GH-24136-00-00)

Unavailable

47

BAND 1

2GH-24398-01-00

Unavailable

48

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

49

WASHER, SPRING

92995-06100-00

Unavailable

50

WASHER, PLAIN (646)

92990-06600-00

Unavailable

51

DAMPER

5H0-8235Y-M0-00

Unavailable

52

SEAL 1

2GH-21732-00-00

Unavailable
