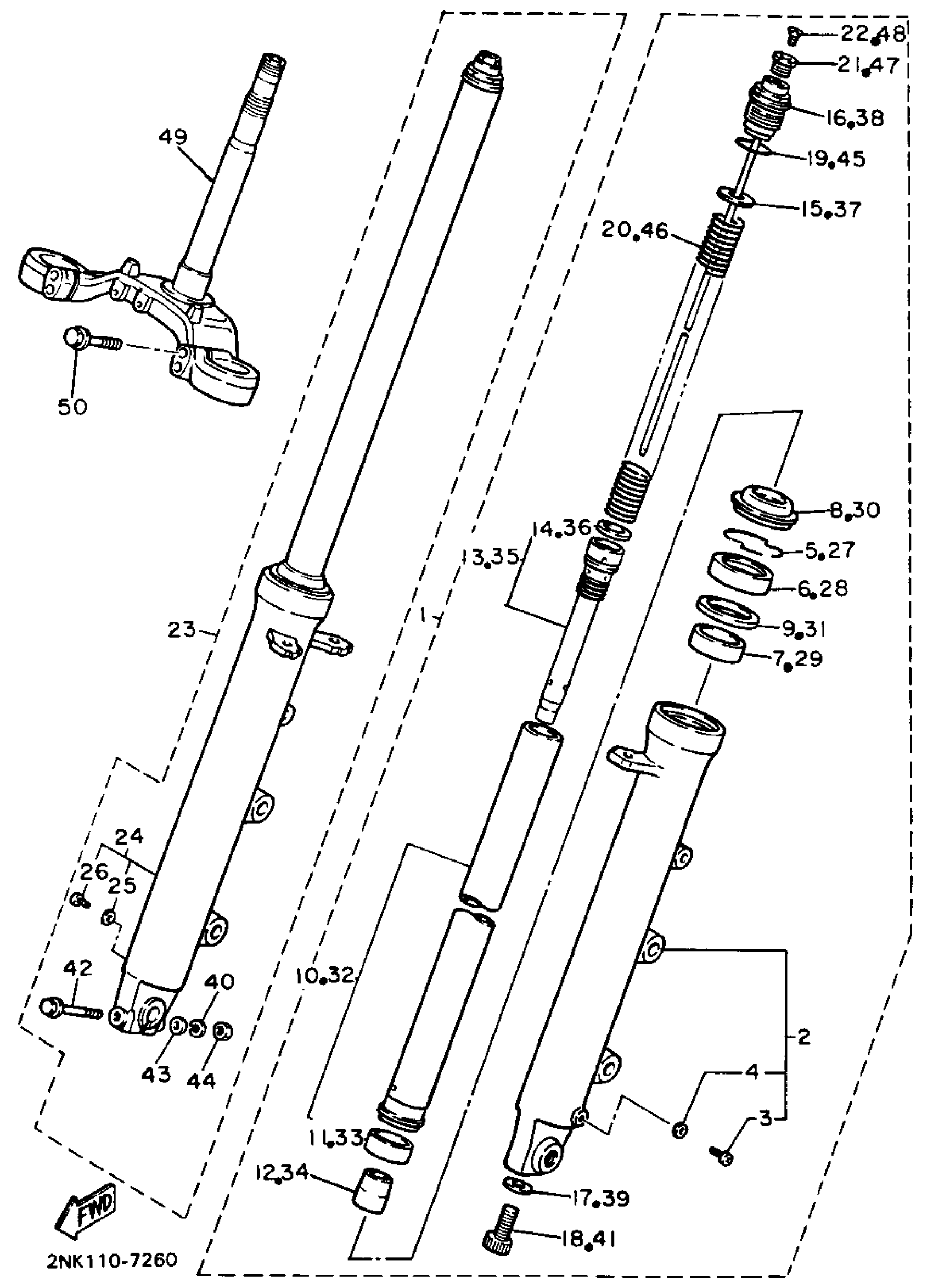

Yamaha FZR750RU (FZR750R) 1988 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY LHASSEMBLY (L.H)

2NK-23102-00-00

Unavailable

2

TUBE, OUTER 1

2GH-23126-00-00

Unavailable

3

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

4

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

5

CLIP, OIL SEAL

26H-23156-00-00

$7.99

6

OIL SEAL

3SP-23145-L0-00

$29.99

7

METAL, SLIDE 1

4FM-23125-40-00

$33.99

8

SEAL, DUST

3XV-23144-50-00

Unavailable

9

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

10

. INNER TUBE COMP

2NK-23110-00-00

Unavailable

11

BUSH

36Y-23171-00-00

$29.99

12

SPINDLE, TAPER

(2GH-23173-00-00)

Unavailable

13

. CYLINDER, FRONTFORKFRONT FORK

2NK-23170-00-00

Unavailable

14

.. RING, PISTON FRTFRK

36Y-23157-00-00

Unavailable

15

. WASHER, SPRING UPR

36Y-23149-00-00

Unavailable

16

. BOLT, CAP

2NK-23111-00-00

Unavailable

17

GASKET

4V4-23158-L0-00

Unavailable

18

BOLT

4V4-23181-L0-00

Unavailable

19

.. O-RING

36Y-23147-00-00

Unavailable

20

. SPRING, FRONT FORK

2NK-23141-00-00

Unavailable

21

. CAP, FRONT FORK

2NK-23168-00-00

Unavailable

22

SCREW, FLAT

98707-05010-00

Unavailable

23

FRONT FORK ASSEMBLY RH (R.H)

2NK-23103-00-00

Unavailable

24

TUBE, OUTER 2

2GH-23136-00-00

Unavailable

25

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

26

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

27

CLIP, OIL SEAL

26H-23156-00-00

$7.99

28

OIL SEAL

3SP-23145-L0-00

$29.99

29

METAL, SLIDE 1

4FM-23125-40-00

$33.99

30

SEAL, DUST

3XV-23144-50-00

Unavailable

31

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

32

. INNER TUBE COMP

2NK-23110-00-00

Unavailable

33

BUSH

36Y-23171-00-00

$29.99

34

SPINDLE, TAPER

(2GH-23173-00-00)

Unavailable

35

. CYLINDER, FRONTFORKFRONT FORK

2NK-23170-00-00

Unavailable

36

.. RING, PISTON FRTFRK

36Y-23157-00-00

Unavailable

37

. WASHER, SPRING UPR

36Y-23149-00-00

Unavailable

38

. BOLT, CAP

2NK-23111-00-00

Unavailable

39

GASKET

4V4-23158-L0-00

Unavailable

40

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

41

BOLT

4V4-23181-L0-00

Unavailable

42

. BOLT, AXLE HOLDER

1UJ-23128-00-00

Unavailable

43

.. WASHER, PLATE

92990-08600-00

Unavailable

44

NUT(6L2)

95333-08600-00

Unavailable

45

.. O-RING

36Y-23147-00-00

Unavailable

46

. SPRING, FRONT FORK

2NK-23141-00-00

Unavailable

47

. CAP, FRONT FORK

2NK-23168-00-00

Unavailable

48

SCREW, FLAT

98707-05010-00

Unavailable

49

UNDER BRACKETCOMP

2GH-23340-00-00

Unavailable

50

BOLT, FLANGE

95814-08040-00

Unavailable
