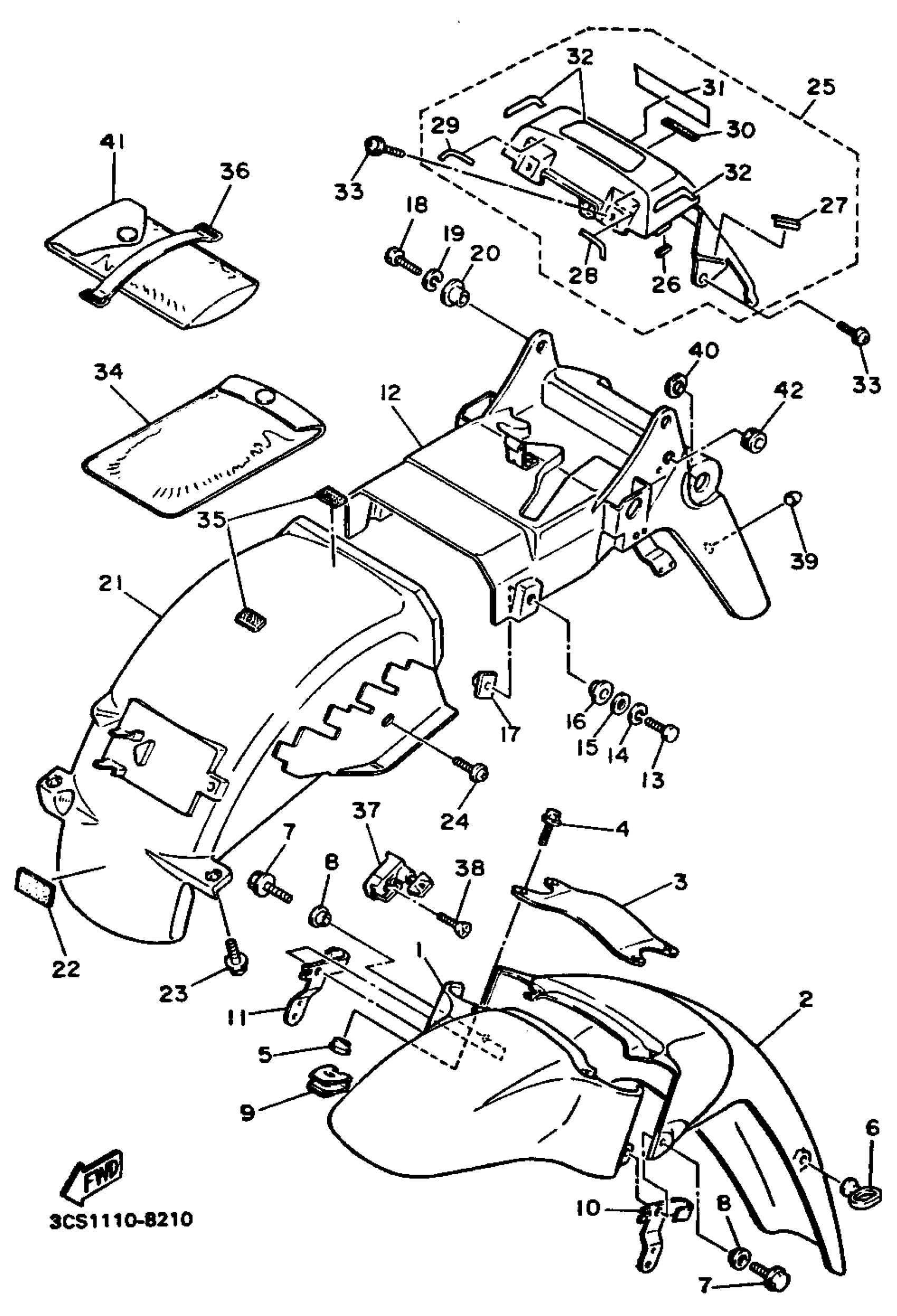

Yamaha FZR750RU (FZR750R) 1988 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

2GH-21511-00-GE

Unavailable

2

FENDER, FRONT 2

2GH-21556-00-GE

Unavailable

3

BRACE, FORK

47X-2313A-00-00

Unavailable

4

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

5

COLLAR

90387-065T2-00

$8.49

6

GUIDE, WIRE

1A8-21518-00-00

$7.99

7

. BOLT, FLANGE

95027-06020-00

Unavailable

8

COLLAR

90387-06107-00

$8.49

9

NUT, SPRING

90183-08043-00

Unavailable

10

HOLDER, BRKE HOSE 1

2LJ-25875-00-00

Unavailable

11

HOLDER, BRKE HOSE 2

2LJ-25876-00-00

Unavailable

12

REAR FENDER

2LJ-W2161-00-00

Unavailable

13

BOLT, HEXAGON

97017-06020-00

$4.06

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

COLLAR(47X)

90387-061M0-00

Unavailable

17

PLATE

31A-14477-10-00

Unavailable

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

COLLAR (8G8)

90387-06648-00

Unavailable

21

GUARD, MUD

2GH-21629-00-00

Unavailable

22

DAMPER 1

2JG-21638-00-00

Unavailable

23

BOLT, WITH WASHER

90119-06226-00

Unavailable

24

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

25

COVER, REAR FENDER

2YJ-Y2165-00-GE

Unavailable

26

SEAL 1

2GH-21732-00-00

Unavailable

27

SEAL 2

2GH-21735-00-00

Unavailable

28

SEAL 1

2GH-21575-00-00

Unavailable

29

SEAL 2

2GH-21576-00-00

Unavailable

30

SEAL 4

J44-78248-00-00

Unavailable

31

EMBLEM,YAMAHA(3TB)

99243-00100-00

Unavailable

32

. GRAPHIC

2YJ-21660-00-00

Unavailable

33

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable

34

POUCH

4K5-28186-00-00

Unavailable

35

HOOK

4K5-2814E-10-00

Unavailable

36

BAND, BATTERY

26L-82131-00-00

Unavailable

37

HELMET HANGER ASSY

26H-21308-01-00

Unavailable

38

SCREW (3H1)

90149-06150-00

Unavailable

39

PLUG

90338-07018-00

Unavailable

40

WASHER, CLAW

90214-12033-00

Unavailable

41

TOOL KIT

2GH-28100-00-00

Unavailable

42

GROMMET

90480-10258-00

Unavailable
