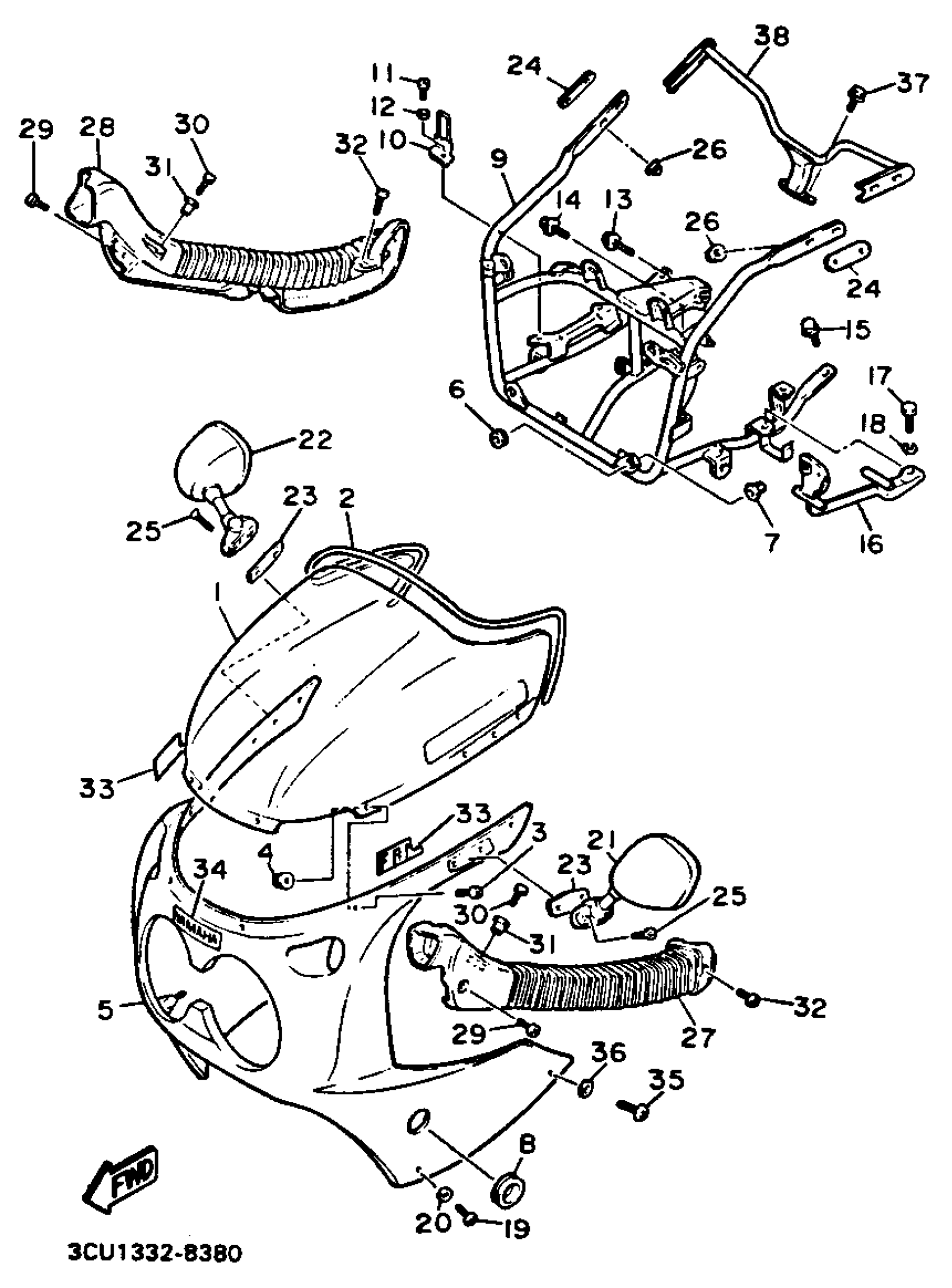

Yamaha FZR750RU (FZR750R) 1988 FAIRING Diagram

#

Description
Price

1

WINDSHIELD

2LJ-28381-00-00

Unavailable

2

MOLE 4

36Y-28348-00-00

$31.99

3

SCREW, ROUND HEAD(46X)

90150-05020-00

$9.49

4

NUT, FLANGE(3GM)

95707-05500-00

$8.49

5

BODY, FRONT UPPER 1

2GH-2835G-00-GE

Unavailable

6

GROMET (3X3)

90480-14229-00

$8.49

7

NUT (1AE)

90179-06500-00

$7.49

8

GROMMET(3GM)

90480-35526-00

$4.77

9

STAY 1

2GH-28356-00-00

Unavailable

10

PROTECTOR 1

2GH-2834V-00-00

Unavailable

11

SCREW, PAN

98517-06012-00

$3.78

12

WASHER(6TA)

92907-06600-00

$2.72

13

BOLT, FLANGE(4MY)

95027-08040-00

$8.49

14

BOLT (71X) =9502608025)

99999-01790-00

$7.49

15

BOLT, FLANGE

95817-06012-00

$1.43

16

BRACKET

2GH-21238-00-00

Unavailable

17

BOLT, HEXAGON

97017-06012-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

20

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

21

REAR VIEW MIRROR ASSY (LEFT)

3HE-26280-01-00

Unavailable

22

MIRROR ASSEMBLYASSY (RIGHT)

2GH-26290-00-00

Unavailable

23

PLATE, MIRROR FITTING 1

1AE-26298-00-00

Unavailable

24

PLATE, MIRROR FITTING 2

3CV-26299-00-00

Unavailable

25

SCREW, FLAT

98707-06030-00

Unavailable

26

NUT, CROWN

(90176-06047-00)

Unavailable

27

DUCT 1

2GH-2838N-00-00

Unavailable

28

DUCT 2

2GH-2838R-00-00

Unavailable

29

SCREW, BINDING

90154-06046-00

Unavailable

30

SCREW (25G)

90149-06184-00

Unavailable

31

COLLAR

90387-06113-00

Unavailable

32

SCREW, BINDING

90154-06043-00

Unavailable

33

EMBLEM

2KR-28368-00-00

Unavailable

34

EMBLEM,YAMAHA(3TB)

99243-00100-00

Unavailable

35

SCREW (1FN)

90149-06218-00

Unavailable

36

WASHER PLATE 122217250000

90202-07015-00

Unavailable

37

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

38

STAY, MIRROR 1

2YJ-2831W-00-00

Unavailable
