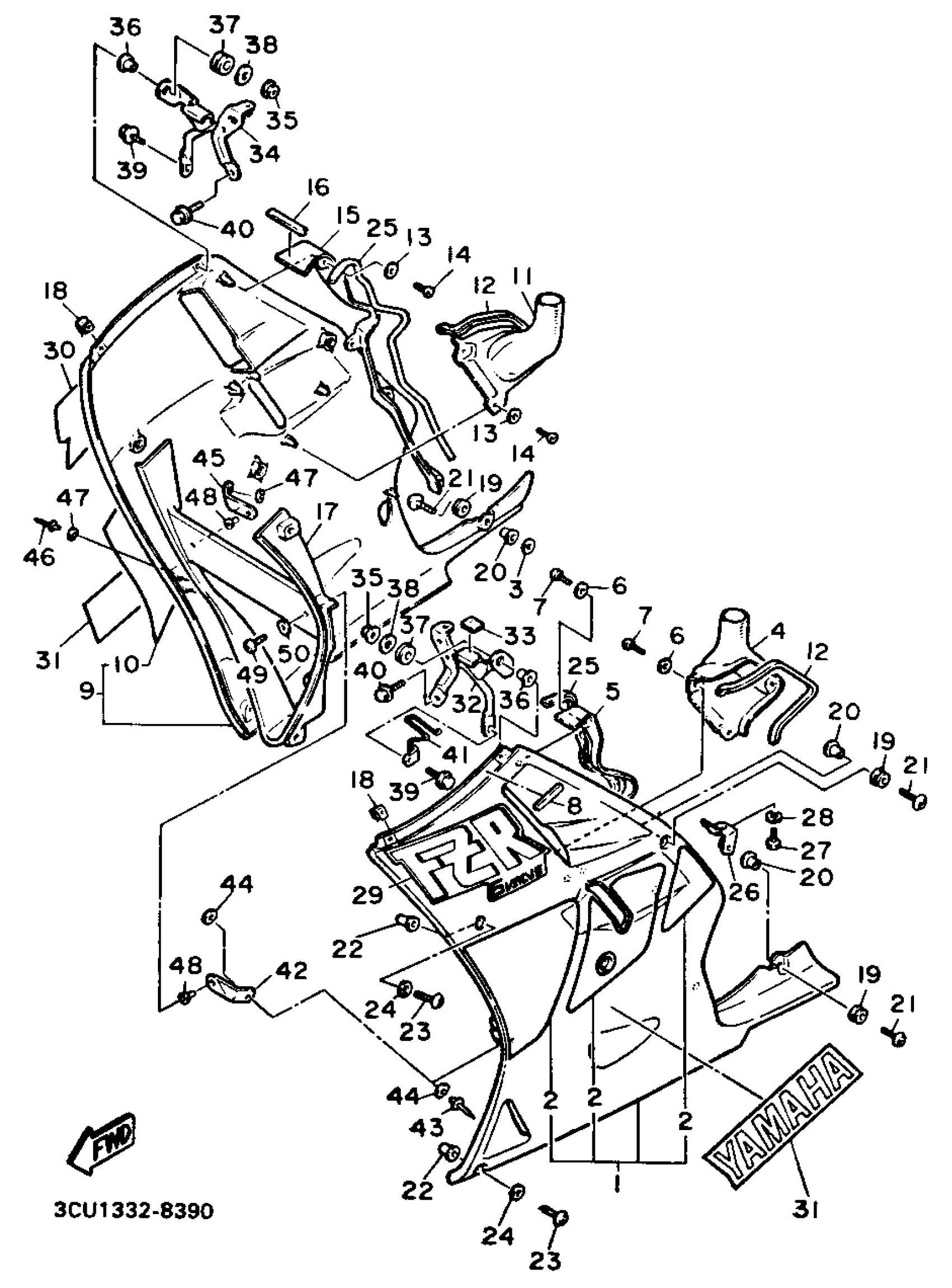

Yamaha FZR750RU (FZR750R) 1988 COWLING Diagram
#
1
BODY FRONT LOWER 1
2YJ-W283E-00-GE
Unavailable
2
. GRAPHICSET3 COWLINCOWLING
2YJ-2836V-00-00
Unavailable
3
WASHER, PLATE
90201-062J7-00
Unavailable
4
DUCT 3
2GH-2838T-00-00
Unavailable
5
PLATE 1
2GH-28396-00-00
Unavailable
8
PROTECTOR
1JK-21652-00-00
Unavailable
9
BODY FRONT LOWER 2
2YJ-W283F-00-GE
Unavailable
10
. GRAPHICSET4 COWLINCOWLING
2YJ-2836W-00-00
Unavailable
11
DUCT 4
2GH-2838U-00-00
Unavailable
12
MOLE 3
2GH-28347-00-00
Unavailable
15
PLATE 2
2GH-28397-00-00
Unavailable
16
MOLD 1
2GH-28345-00-00
Unavailable
17
PANEL, INNER 1
2GH-2836K-00-GE
Unavailable
18
NUT, SPRING
90183-051A0-00
Unavailable
19
GROMMET
90480-13014-00
Unavailable
20
COLLAR(1LJ)
90387-067N5-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD(3GM)
90110-06202-00
Unavailable
22
NUT (8J2)
90179-05271-00
Unavailable
23
BOLT,HEX. SOCKET BUTTON
90111-05026-00
Unavailable
24
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
25
MOLD 2
2GH-28346-00-00
Unavailable
26
BRACKET 2
2GH-2836F-00-00
Unavailable
27
BOLT(3JP)
97017-06010-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
EMBLEM
2YJ-28328-00-00
Unavailable
30
EMBLEM
2YJ-28368-00-00
Unavailable
31
EMBLEM, YAMAHA
99233-00280-00
Unavailable
32
STAY, LEG SHIELD L
2GH-28321-01-00
Unavailable
33
DAMPER
22F-2139X-00-00
Unavailable
34
STAY, LEG SHIELD R
2GH-28322-00-00
Unavailable
35
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
36
COLLAR (4N0)
90387-071E0-00
Unavailable
37
GROMMET (16R)
90480-14329-00
Unavailable
38
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
39
BOLT, FLANGE
95817-06016-00
Unavailable
40
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
41
HOLDER, HI-TENS.CRDHIGH TENSION CORD
2GH-21362-00-00
Unavailable
42
BRACKET 9
2GH-2833F-00-00
Unavailable
43
RIVET, BLIND
90267-40029-00
Unavailable
44
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
45
BRACKET 10
2GH-2833G-00-00
Unavailable
46
RIVET, BLIND
90267-40029-00
Unavailable
47
WASHER, PLATE (8M6)
90201-047A2-00
Unavailable
48
NUT(1KT)
90179-05523-00
Unavailable
49
SCREW(3YF)
90149-05299-00
Unavailable
50
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
