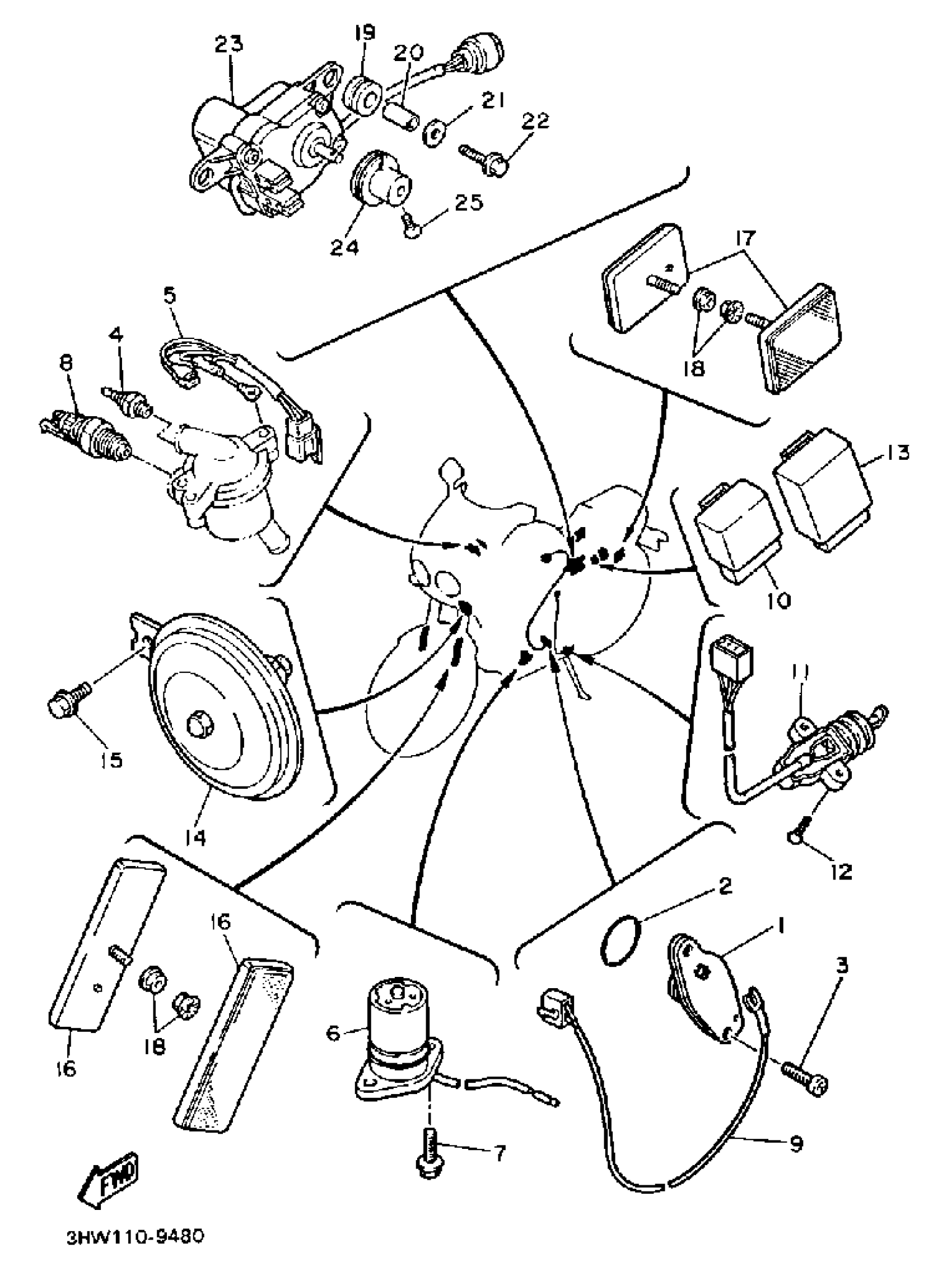

Yamaha FZR600WC (FZR600 CA) 1989 ELECTRICAL 2 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

2

O-RING (371)

93210-29196-00

$8.49

3

SCREW, PAN

98507-06014-00

$8.49

4

THERMO UNIT

11H-83591-00-00

$105.99

5

WIRE, SUB LEAD

2GH-82509-00-00

Unavailable

6

OIL LEVEL GAUGE ASSEMBLY

1WG-85720-00-00

Unavailable

7

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

8

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

9

WIRE, LEAD

1WG-82541-00-00

Unavailable

10

RELAY ASSY

3EN-81950-02-00

$69.99

11

SWITCH, SIDE STAND

3FH-82566-00-00

Unavailable

12

SCREW, FLAT

98707-05014-00

$9.49

13

FLASHER RELAY ASSY

2UJ-83350-01-00

Unavailable

14

HORN

2KG-83371-00-00

Unavailable

15

BOLT, FLANGE

95817-06012-00

$1.43

16

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

17

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

18

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

19

GROMMET 839774310000

90480-14023-00

Unavailable

20

COLLAR(2UJ)

90387-061V1-00

Unavailable

21

WASHER, PLATE

90201-06380-00

Unavailable

22

BOLT, FLANGE

95817-06025-00

Unavailable

23

SERVO MOTOR ASSY 1

3HW-85820-02-00

Unavailable

24

PULLEY, DRIVE

1FK-85821-00-00

Unavailable

25

SCREW(3HX)

90149-05245-00

Unavailable
