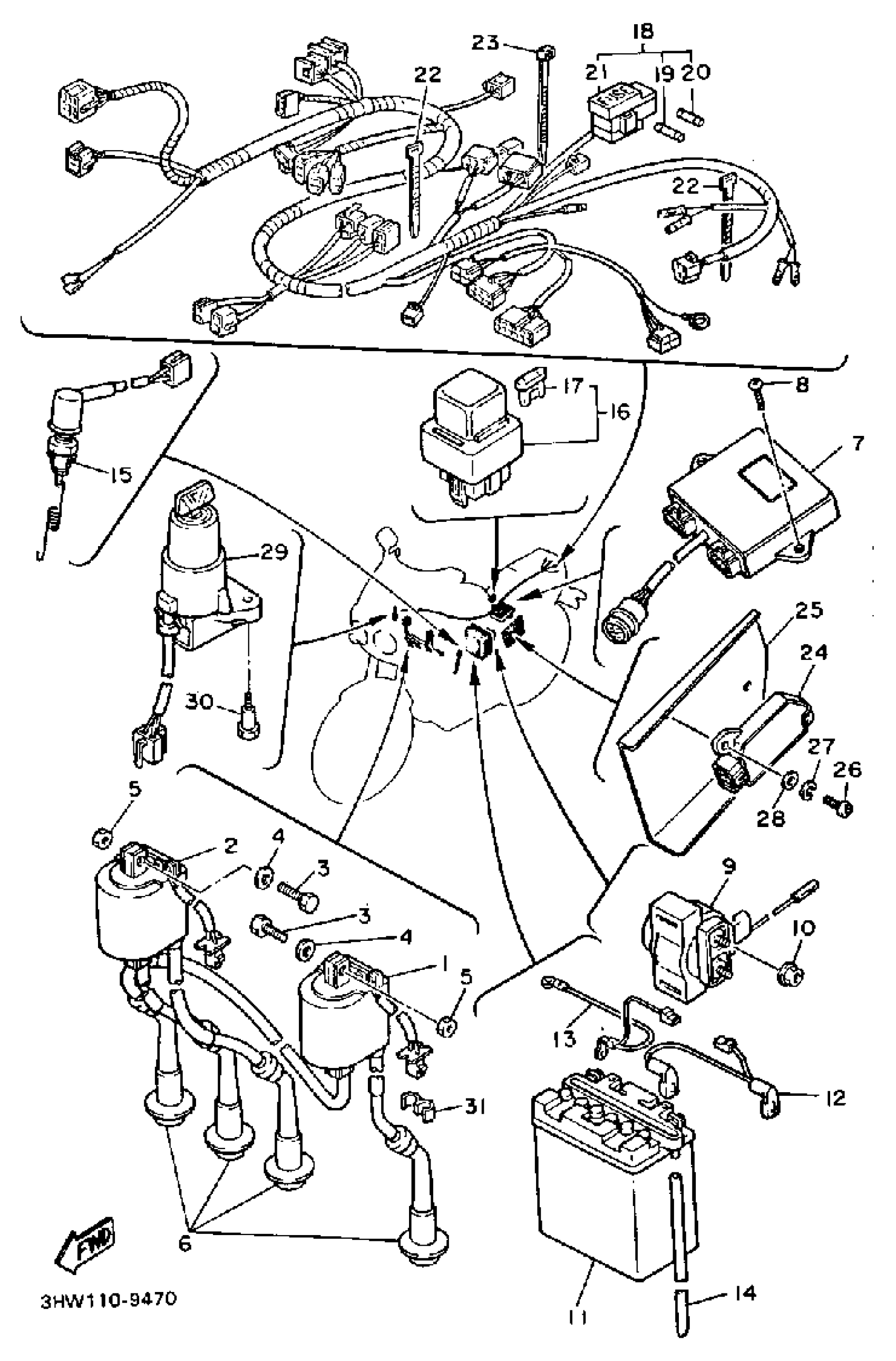

Yamaha FZR600WC (FZR600 CA) 1989 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

1WG-82310-09-00

$263.99

IGNITION COIL ASSY

1WG-82310-09-00

$263.99

BOLT, WITH WASHER

97527-06565-00

$1.54

WASHER(6TA)

92907-06600-00

$2.72

NUT(6TA)

95317-06600-00

$3.55

PLUG CAP ASSEMBLY

1WG-82370-00-00

Unavailable

IGNITOR UNIT ASSEMBLY 1

3HW-82305-00-00

Unavailable

SCREW, TAPPING(JA3)

97707-60520-00

$8.49

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

NUT, FLANGE(7NB)

95780-06500-00

$2.60

YB12ALA2 YUASA BATTERY

YB1-2ALA2-00-00

Unavailable

WIRE, PLUS LEAD

1WG-82115-00-00

Unavailable

WIRE,MINUS LEAD

4BP-82116-00-00

Unavailable

HOSE

90445-08719-00

Unavailable

STOP SWITCH ASSY

1KT-82530-03-00

Unavailable

FUSE HOLDER ASSY

1AE-82150-00-00

Unavailable

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

WIRE HARNESS ASSEMBLY

3HW-82590-00-00

Unavailable

FUSE (20A)

2GV-82151-00-00

Unavailable

FUSE (10A)

42X-82151-00-00

Unavailable

. BOX, COVER

1AE-82172-00-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

RECTIFIER & REGULATOR ASSY

47X-81960-A3-00

Unavailable

PLATE, RECTIFIER FITTING

3HE-81975-00-00

Unavailable

SCREW PAN HEAD

98580-06020-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

Unavailable

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

SCREW(1KT)

90149-06228-00

Unavailable

CLAMP(6M7)

90464-09M31-00

Unavailable
